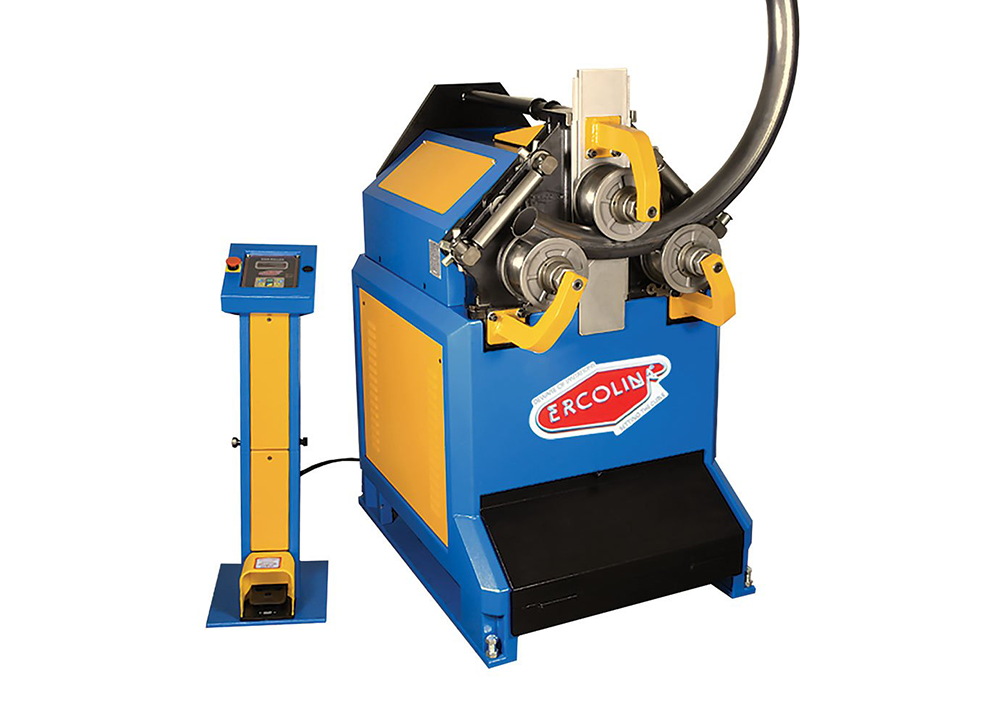

Ercolina’s CE60H3 angle roll model offers hydraulic center roll positioning.
Standard Features
- 50mm roll shaft diameter
- Maximum pipe capacity 3″ Sch. 10
- Maximum angle capacity 2-1/2″ x 2-1/2″ x 3/8″
- Bending speeds 20% faster than competitive machines
- Universal tooling set included with each machine – 7″ OD
- Uses same tooling as CE50
- Forged roll shafts precision ground and fitted for maximum performance and minimal deflection
- Heavy duty structure and rigid components for high section modulus ratings
- Reinforced engineered mainframe design proven to outperform competitive models
- Patented by Ercolina simultaneous downfeed and roll movement to minimize deformation
- Touchpad controls with digital center roll positioning
- Tie bar supports for each shaft
- Hydraulic machine with memory storage has 8 individual programs and unlimited passes
- Remote pendent with low voltage controls and foot pedal switch
- Threaded roll shafts with micrometric flange adjustment helps eliminate spacer usage
- In-line direct drive roll shaft system 3-roll driven
- Optional Anti-twist correction system for angle iron “Leg In” applications
- All capacities based on mild grade materials; heavy wall and high tensile materials reduce machine capacity.
Specifications and Capacities
- Pipe (Max.) 3″ Sch. 10
- Angle (Max.) 2½″ x 2½″ x ⅜″
- Tube (Max.) 3½″ – .120 wall
- Roll Shaft Diameter 50mm
- Center Roll Positioning Hydraulic 16.5 Tons
- Shaft Speed 9 RPM
- Universal Tooling (Included) 7″ O.D.
- Programming NC - Touchpad
- Number of Programs 8
- Distance between Shafts 15″
- Operating Voltage 220V or 480V 3ph
- Length, Width, Height 48″ x 29″ x 52″
