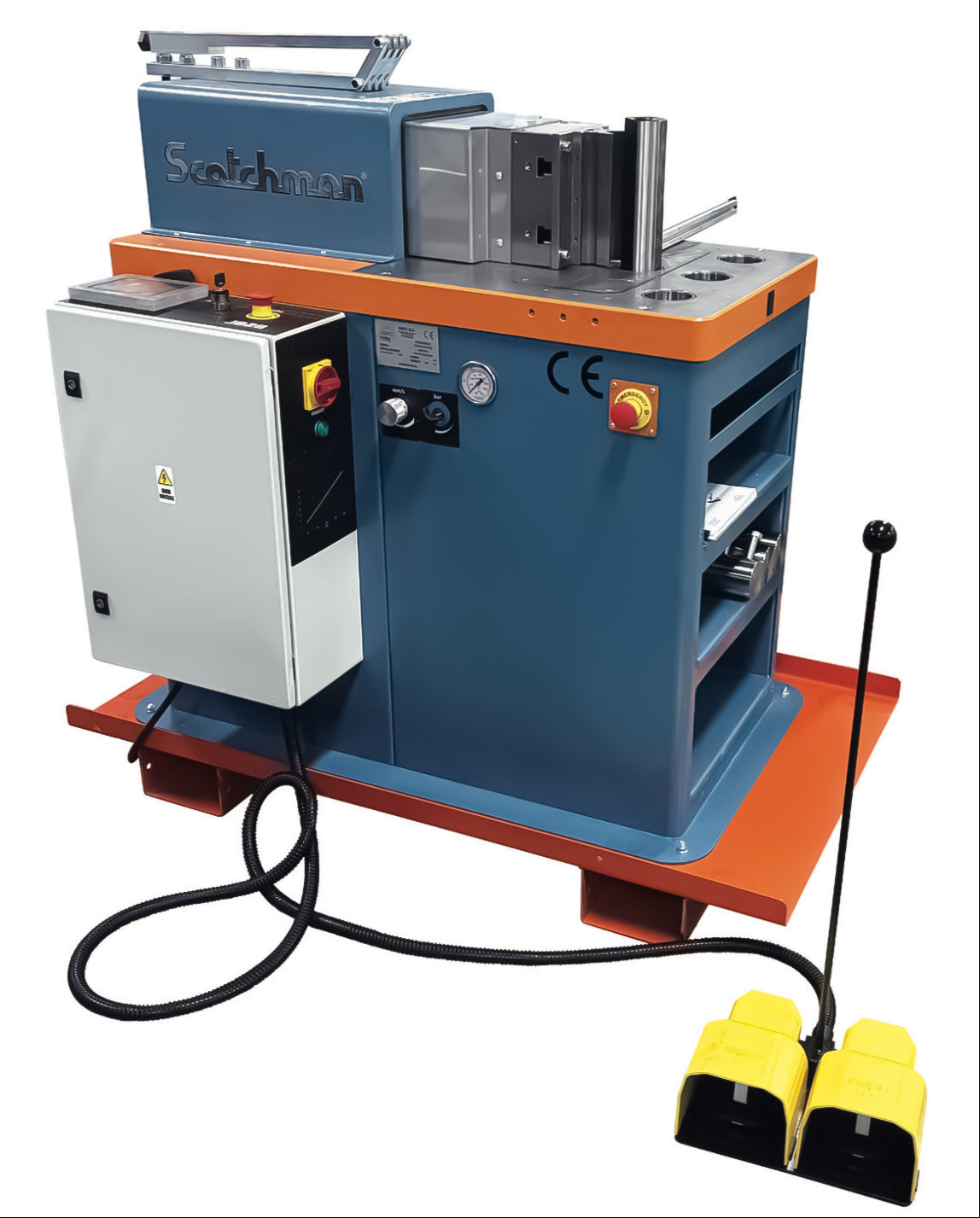

HB-31 Horizontal Bender

The HB-31 Horizontal Bending and Straightening Press is a universal hydraulic press engineered for precision bending, profiling, and straightening operations. Equipped with NC control and a standard tooling set—including a 4-sided V-die for 5/8”, 7/8”, 1-3/8”, and 2” along with a matching V-stamp, resistance pins, and a manual back gauge—this machine delivers exceptional accuracy and repeatability. Ideal for fabrication shops and heavy-duty applications, the HB-31 offers both manual and automatic programming modes for efficient operation and consistent results.

Standard Features

• NC control for accurate bending operations
• Full stroke control settings
• 100-job storage capacity for programs
• Manual programming mode for custom operations
• Automatic mode: hold foot pedal to initiate bend and return
• Support arm to control flex when bending heavy materials
• Dual column posts for straightening or cambering beams


Specifications and Capacities
