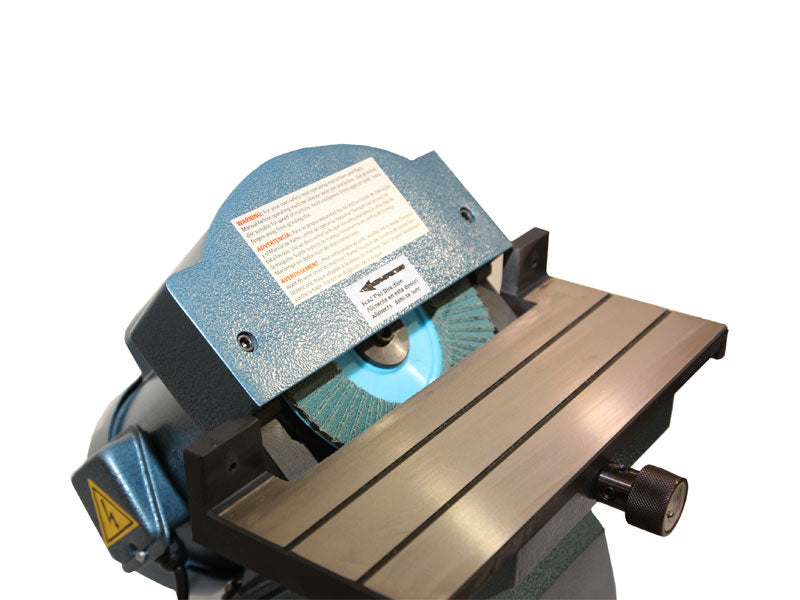

The Heck 82300 is a specialized chamfering / deburring machine that uses a standard abrasive flap disc to provide a chamfered edge on flat and square metals and plastics. Makes short work on deburring projects and is the go to bench top machine for your fabrication and production shop. The degree of bevel is a fixed 45° and the depth of cut is adjustable up to 1/8”.
Standard Features
- Deburring Chamfering
- Bevel angle 45°
- Maximum bevel 1/8″
- 3/4 horsepower, 110 Volt
Specifications and Capacities
|
Specifications |
82300 |
|
Maximum Bevel Depth |
1/8″ |
|
Minimum Material Thickness |
1/8″ |
|
Bevel-Angle |
Fixed 45° |
|
V-Block Length |
12″ |
|
Number of Inserts |
Flap Disc Grinding Wheel |
|
Motor |
¾ hp 110V |
|
Weight |
70 lbs |
