0.1875" Bench Bevel Mill

Manufacturer: Heck

Model: BB125


Quote Request

 Thank you for your quote request, we will be in touch shortly.

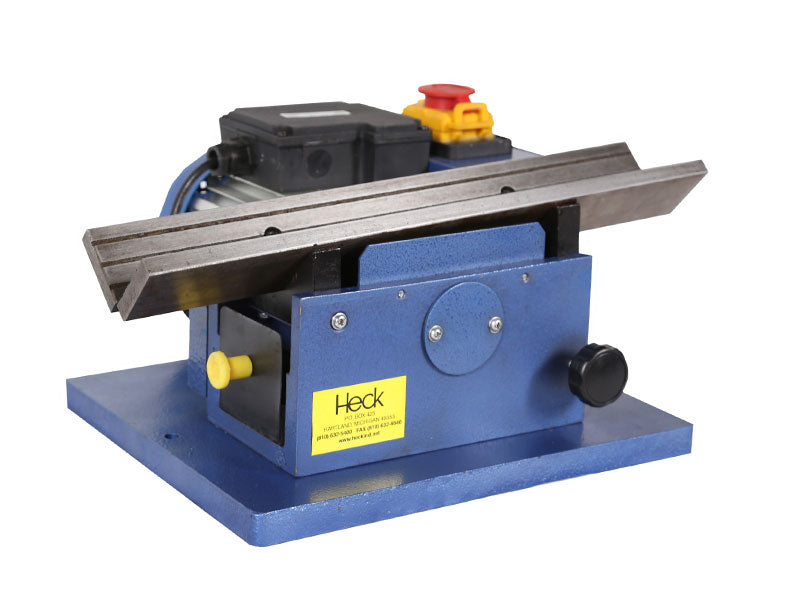

The Heck BB125 is a specialized chamfering / deburring machine that uses carbide inserts in a milling cutter to provide a chamfered edge on flat and square metals and plastics. The perfect choice for deburring small parts. Very easy to operate, the degree of bevel is a fixed 45° and the depth of cut is adjustable up to 3/16”.

Standard Features
  • Bevel Depth 3/16″
  • Material Thickness 1/8″
  • Adjustable depth of cut
  • 1/2 horsepower, 110 Volt
  • Make chamfers on any metal up to 3/16″ deep
Specifications and Capacities

Specifications

BB125

Maximum Bevel Depth

3/16″

Minimum Material Thickness

1/8″

Bevel-Angle

Fixed 45°

V-Block Length

12″

Number of Inserts

Carbide Inserts

Motor

½ hp 110V

Weight

54 lbs



Heck

0.1875" Bench Bevel Mill

The Heck BB125 is a specialized chamfering / deburring machine that uses carbide inserts in a milling cutter to provide a chamfered edge on flat and square metals and plastics. The perfect choice for deburring small parts. Very easy to operate, the degree of bevel is a fixed 45° and the depth of cut is adjustable up to 3/16”.

Standard Features
Specifications and Capacities

Specifications

BB125

Maximum Bevel Depth

3/16″

Minimum Material Thickness

1/8″

Bevel-Angle

Fixed 45°

V-Block Length

12″

Number of Inserts

Carbide Inserts

Motor

½ hp 110V

Weight

54 lbs
