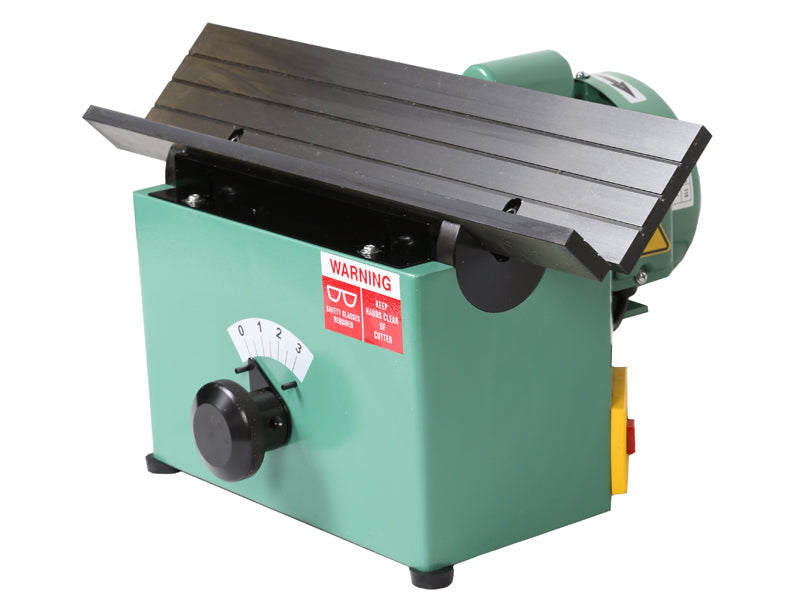

0.1875" Variable Angle Bench Bevel Mill
$0.00
Unit price
/
Unavailable
The Heck VA-400 is a specialized Bevel Machine that uses a milling type cutter head with indexable, replaceable carbide inserts to produce a machined edge on steel, aluminum, stainless steel and plastic material. The degree of bevel is adjustable by rotating the v-block from 15°-45° and the depth of cut is adjustable up to 3/16”.
Using optional cutter head, radius edges can be made also. Radius edge rounding is perfect for cleaning up box corner welds or to prevent paint chipping on structural steel.
Standard Features
- 3/16″ Max. Bevel Depth
- 1/16″ Min. Material Thickness
- Can be used on Steel, Aluminum, Stainless Steel and Plastics
Specifications and Capacities
|
Specifications |
VA-400 |
|
Maximum Bevel Depth |
3/16″ |
|
Minimum Material Thickness |
1/16″ |
|
Bevel-Angle |
15-45° |
|
V-Block Length |
19-1/2″ |
|
Number of Inserts |
6 |
|
Motor |
1hp 110V |
|
Weight |
55 lbs |
