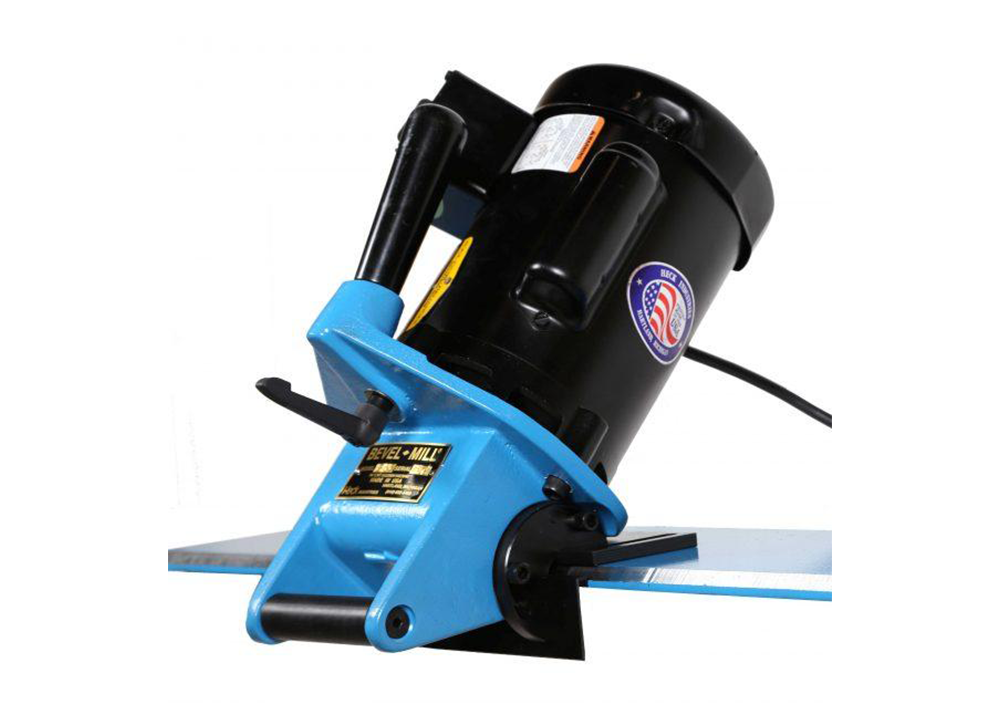

0.875" Hand Operated Plate Beveler

Manufacturer: Heck

Model: 8000


Quote Request

 Thank you for your quote request, we will be in touch shortly.

The model 8000 is ideal for weld preparation and creating a uniform bevel at the desired angle from 15-45°. These bevelers use milling type cutter heads with square carbide inserts specially designed for long life and are indexable for extended use.

This machine produces no fumes, heat, smoke or vibration.

Standard Features
  • Self supporting on the work piece to eliminate operator fatigue
  • Works plate and structural steel as thin as 3/16” for clean burr free edges
  • Adjustable depth of cut
  • Can be inverted to work the lower edge of plates
  • Specially designed American Made motors provide efficient long lasting power
  • V-block design assures consistent edge quality
  • Using standard V-block roller guides provided, rounds and pipe can be worked 6” and larger.
  • Using optional cutter head, radius edges can be made also. Radius edge rounding is perfect for cleaning up box corner welds or to prevent paint chipping on structural steel
Specifications and Capacities
  • Maximum Bevel – 7/8” Max
  • Adjustable Angle from 15-45°
  • Faster feed rates
  • 1HP 110v motor
  • Uses 1/2″ square carbide inserts
