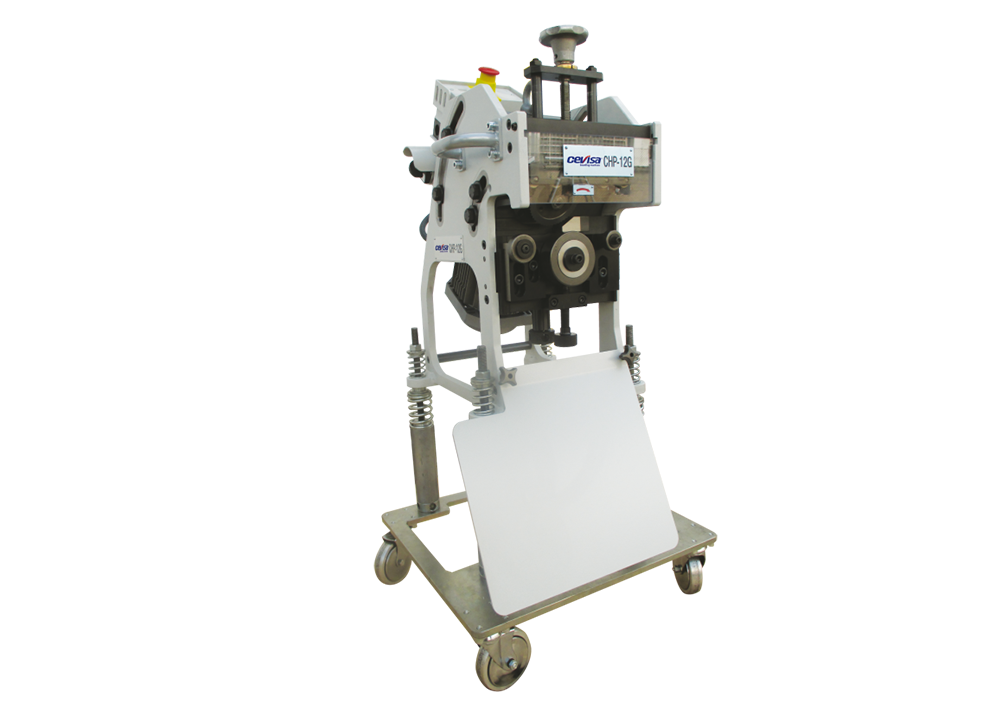

0.625″ Power Feed Beveler

Manufacturer: Heck

Model: Pro-12G


Quote Request

 Thank you for your quote request, we will be in touch shortly.

The Heck PRO12G adds the ability to change the angle of bevel simply by adjusting the single hand wheel from 20 to 45°. Great for applications where multiple angles are needed as the adjustment of this machine is very fast. No replacement of tooling and rollers necessary.

Standard Features
  • Self-Propelled
  • Direct Drive Gear Boxes, No Belts
  • Variable Angle by single hand wheel
  • Spring loaded trolley is included
      Specifications and Capacities

      Specifications

      PRO-12G

      Maximum Bevel Depth

      .625″

      Maximum Material Thickness

      1.25″

      Minimum Material Thickness

      .250″

      Bevel Speed

      6fpm

      Bevel-Angle

      20-45°

      Motor

      3hp

      Weight

      242 lbs

                  Heck

                  0.625″ Power Feed Beveler

                  The Heck PRO12G adds the ability to change the angle of bevel simply by adjusting the single hand wheel from 20 to 45°. Great for applications where multiple angles are needed as the adjustment of this machine is very fast. No replacement of tooling and rollers necessary.

                  Standard Features
                  Specifications and Capacities

                  Specifications

                  PRO-12G

                  Maximum Bevel Depth

                  .625″

                  Maximum Material Thickness

                  1.25″

                  Minimum Material Thickness

                  .250″

                  Bevel Speed

                  6fpm

                  Bevel-Angle

                  20-45°

                  Motor

                  3hp

                  Weight

                  242 lbs
