At the very heart of Mehta's M8 laser cutting system, you'll find over 30 years of expertise in equipment using numerical control systems.
Mehta Hitech, with its 22 sales offices and 1,000 employees, has established a constant process of innovation. As one of the largest organizations, they are the undisputed market leader across India, and have developed a worldwide distribution network.
The equipment manufactured by Mehta Hitech is based on high-quality parts from well-known brands available worldwide.
The company has a passion for technology and quality of service. The state-of-the-art R&D department clearly demonstrates their passion for quality and commitment to constantly developing technologically advanced products, enabling customers to grow their businesses and compete worldwide.

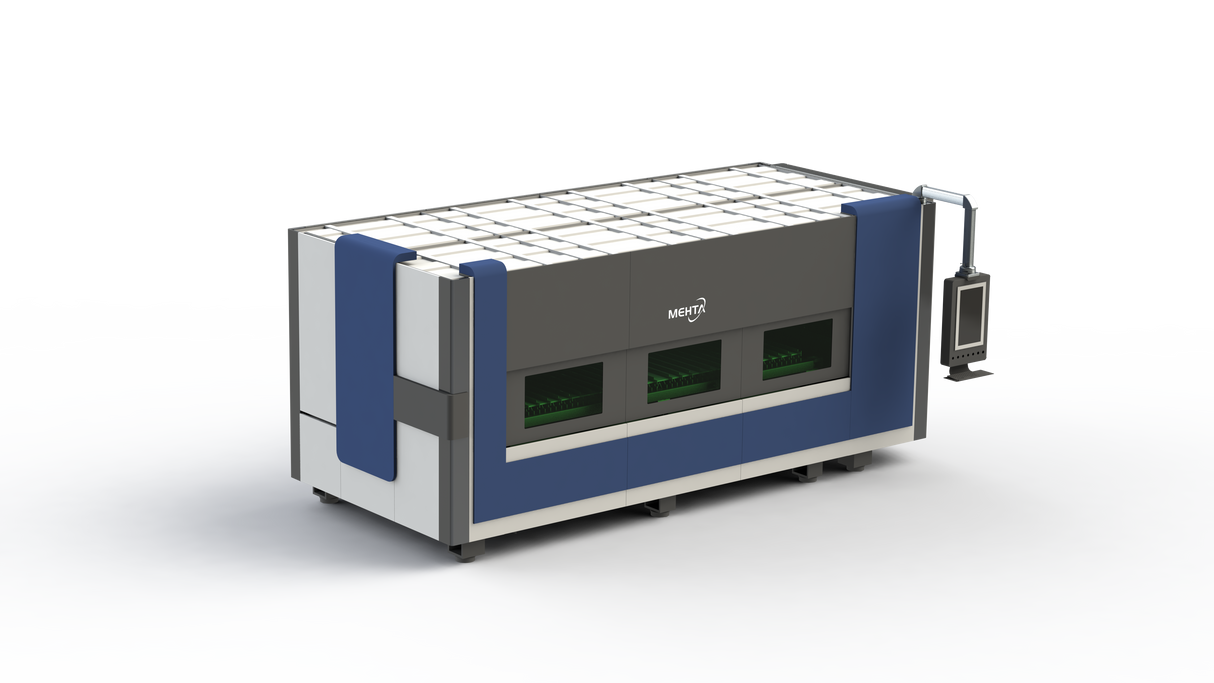

With the M8 laser cutting system, the space required for installation is no longer a barrier to your cutting autonomy. This single-door, automated carriage model lets you easily load sheets one by one, without having to compromise on an external loading table. With power ratings ranging from 3kw to 12kw, you'll have access to cutting the thicknesses required for your business. Our technical advisors and laser cutting specialists will support you in the selection, planning, installation, set-up and training of your operators.
Technical data
Model M8 (Canadian version)
Description of goods Closed laser cutter with front opening
Work area dimensions 1550 x 3050mm (5′ x 10′)
Laser source 3000 to 12000 watts
Laser Type Raycus fiber laser
Laser wavelength 1080 nm
Cutting head Raycus (3kw only) or Precitec
Maximum cutting speed 750 inches per minute
Maximum travel speed 5000 inches per minute
Positioning accuracy <± 0.04 mm
Minimum line width < 0.12 mm
Cooling system Water cooling (included)
Training and control Panasonic AC servomotor
Working voltage 380 VAC (transformer 600v to 380v included)
Transmission Z axis with ball screw. Square rail axes X-Y
Controller CypCutE
Dust collector Donaldson,
