Description
Mehta Hitech has been a pioneer in CO2 laser, fiber laser, CNC router and digital printing technology for over 30 years.
Constant innovations and progressive investments make Mehta Hitech, with its 22 sales offices and 1000 employees, the largest organization and market leader across India and has developed a worldwide distribution network.
The equipment manufactured by Mehta Hitech is based on high-quality parts from well-known brands available worldwide.
The organization's core values are a passion for quality, service and technology. The state-of-the-art R&D department clearly demonstrates their passion for quality and commitment to constantly developing technologically advanced products, enabling customers to grow their businesses and compete worldwide.
Available in 1500 Watts version up to 40,000 Watts, the Mehta 1530 laser will allow you to cut 5′ X 10′ plates.
Equipped with a Donaldson dust collector, a Mehta circulation cooling system, a Raycus source and a Prectiec cutting head (or Raytools for 3kw only).

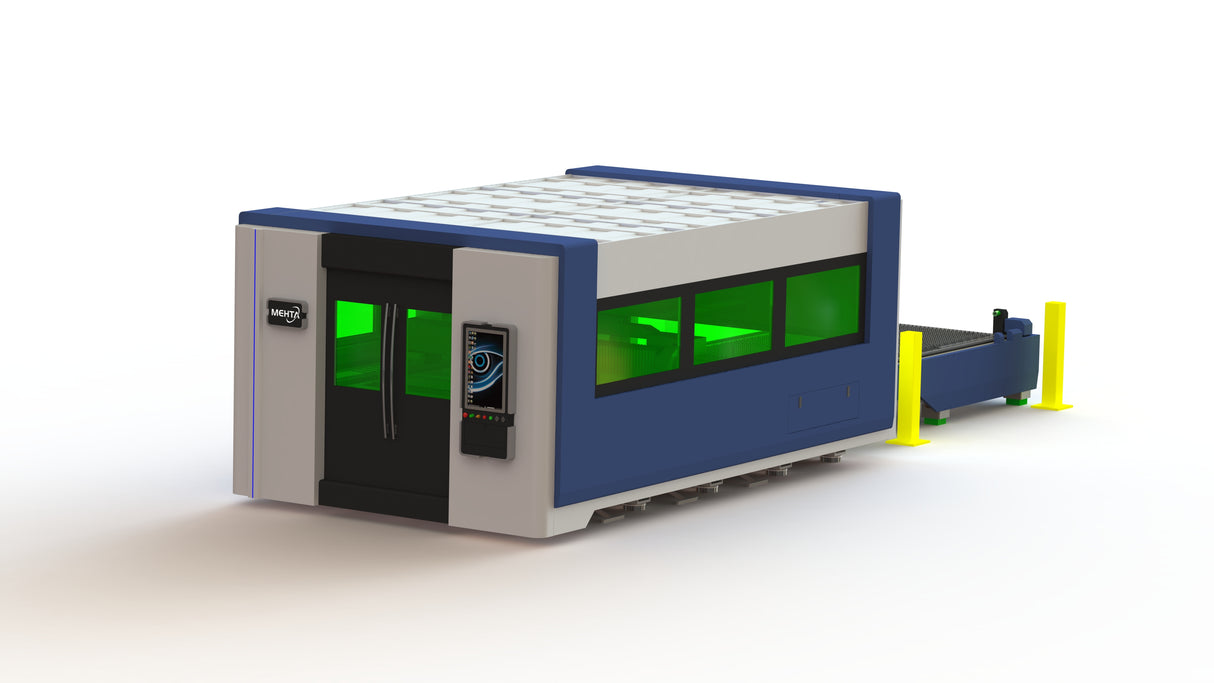

Model GLORIA-ZX-1530 -****
Description Closed laser cutter with table change
Work area dimensions 1550 x 3050mm (5' x 10')
Laser source 3000 Watts à 40 000 Watts
Laser type Raycus or IPG fiber laser
Laser wavelength 1080 nm
Cutting head PRECITEC or Raycus (3kw only)
Maximum cutting speed 80 meters/minute
Maximum travel speed 130 metres/minute
Positioning accuracy <± 0.04 mm
Minimum line width < 0.12 mm
Cooling system Water cooling
Training and control Panasonic AC servomotor
Working voltage 380 VAC
Weight 10 tons
Transmission Z axis with ball screw. X-Y axis square rail
Controller CypCutE
Smoke extractor Donaldson
