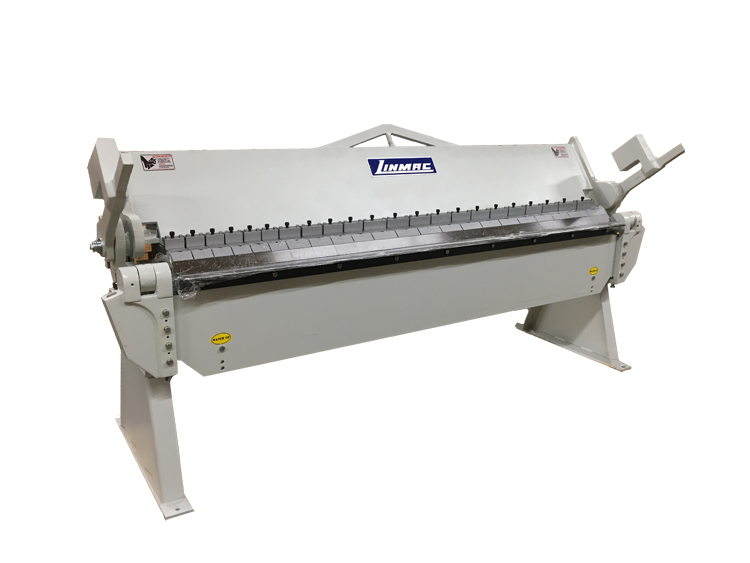

6 Foot 12 Gauge Box and Pan Brake

Linmac floor mounted manual bending brakes are precision machines designed for accurate bending with rated capacities. Linmac hand brakes are an economically-priced solution for your bending needs and will provide years of trouble-free service.

* Please note that this video is a demonstration of the V-412-6. The 4 foot model with the same capacities.

Standard Feature

• Length - 72”
• Bending Angle: 0-135°
• Beam Adjustment: 1”
• Min Reverse Bend: 1/2”
• Positive clamping pressure adjustment
• Adjustable apron hinges and a positive rear material gauge adjustment
• Apron stop rods for repeat bends
• Heavy tie rods for minimum deflection

Specifications and Capacities

• Mild Steel Bending Capacity :12GA
• Stainless Steel Bending Capacity: 16GA
• Finger Widths: 2″, 3″, 4″
• Packing Size: 1800 x 850 x 1100 mm
• Packing Weight: 1050 kg
