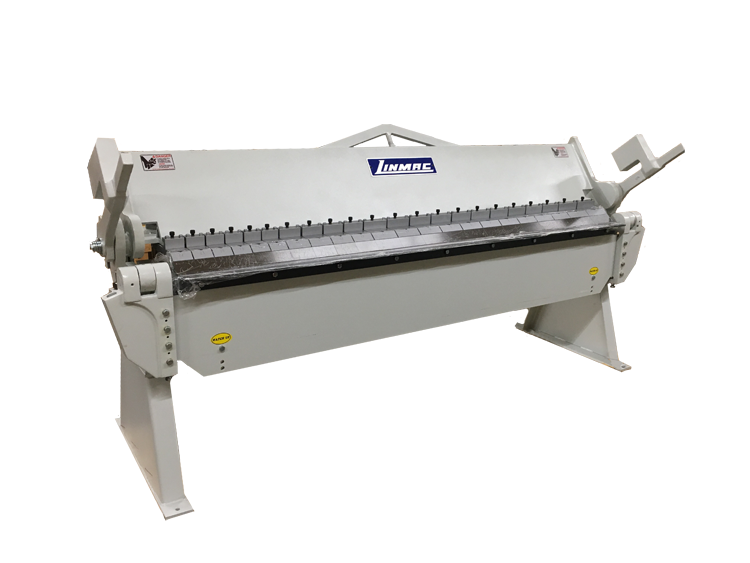

8 Foot 12 Gauge Box and Pan Brake

Manufacturer: Linmac

Model: V-812-6

Quote Request

 Thank you for your quote request, we will be in touch shortly.

Linmac floor mounted manual bending brakes are precision machines designed for accurate bending with rated capacities. Linmac hand brakes are an economically-priced solution for your bending needs and will provide years of trouble-free service.

* Please note that this video is a demonstration of the V-412-6. The 4 foot model with the same capacities.

Standard Feature
  • Length - 96”
  • Bending Angle: 0-135°
  • Beam Adjustment: 1”
  • Min Reverse Bend: 1/2”
  • Positive clamping pressure adjustment
  • Adjustable apron hinges and a positive rear material gauge adjustment
  • Apron stop rods for repeat bends
  • Heavy tie rods for minimum deflection
Specifications and Capacities
  • Mild Steel Bending Capacity :12GA
  • Stainless Steel Bending Capacity: 16GA
  • Finger Widths: 2″, 3″, 4″
  • Packing Size: 3120 x 850 x 1100 mm
  • Packing Weight: 1460 kgs
    Linmac • Box and Pan Brake • 8 Foot • 12 Gauge • V-812-6.
    Linmac

    8 Foot 12 Gauge Box and Pan Brake

    Linmac floor mounted manual bending brakes are precision machines designed for accurate bending with rated capacities. Linmac hand brakes are an economically-priced solution for your bending needs and will provide years of trouble-free service.

    * Please note that this video is a demonstration of the V-412-6. The 4 foot model with the same capacities.

    Standard Feature
    Specifications and Capacities
    View product

    • QPS Certification

      All equipment electrically approved for Canadian use
