2" Capacity Drill Press

Manufacturer: Linmac

Model: DP-925GAD


Quote Request

 Thank you for your quote request, we will be in touch shortly.

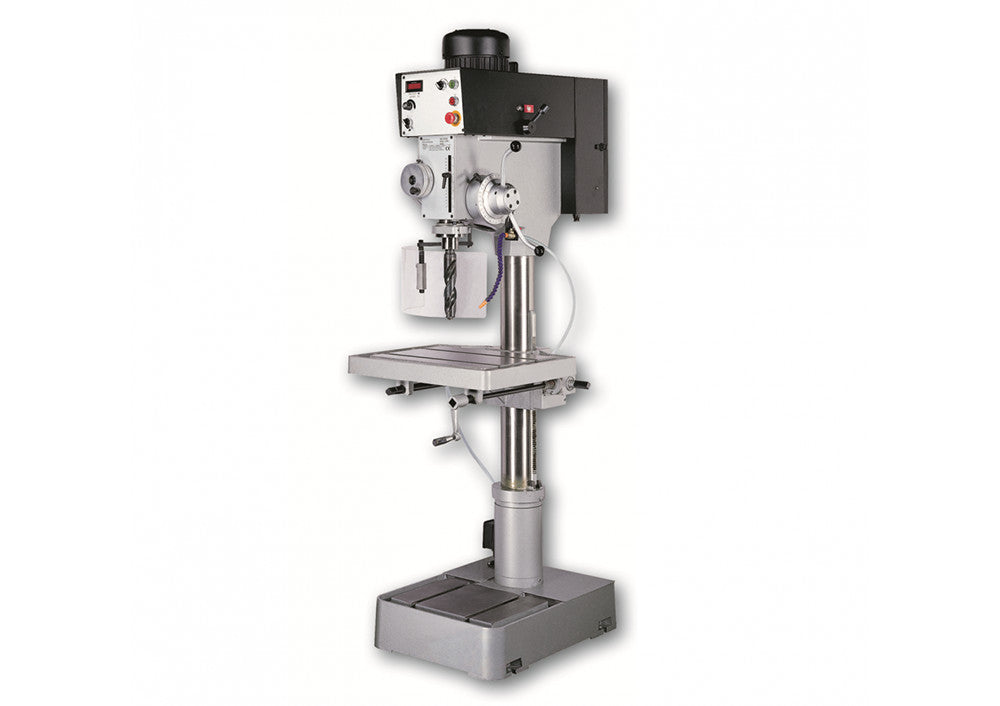

The Linmac DP-925GAD is a gear driven heavy duty variable speed drill press. This premium drill press equips standard with MT#4 spindle taper, power feed and an auto reversing tap. Standard drilling capacity is up to 2” for cast iron. The user friendly control interface comes with a speed potentiometer and digital read out for displaying actual quill RPM. The inverter variable speed allows users to drill and tap various steels at the proper speed. The variable speed adjustments can be done freely within the range by a speed potentiometer knob.

Standard Features
  • Gear Driven with Inverter Variable Speed
  • 3-Speed Power Down Feed
  • Auto Reverse Tapping
  • Digital RPM Readout
  • High Precision T-Slot Work Table
  • Integrated Coolant System
Specifications and Capacities
  • Drilling Capacity #4MT 2” through mild steel.
  • Swing 20.9”
  • Quill Diameter 3”
  • Column Diameter 4.5”
  • 5/8” Table T-Slot
  • Cast Iron Base 19” x 27”
  • Machine Weight 840 lbs.
  • Tapping Capacity 1”
  • Spindle Travel 6”
  • Table Size 22” x 18-1/2”
  • Spindle Nose to Table 23.8”
  • Spindle Nose to Base 45.28”
  • Spindle Speed Hi Range - 245 - 2000 RPM
  • Low Range – 65 – 540 RPM
  • 2 HP 230V/60/3 (Operational w/ 220V Single Phase)



Linmac

2" Capacity Drill Press

The Linmac DP-925GAD is a gear driven heavy duty variable speed drill press. This premium drill press equips standard with MT#4 spindle taper, power feed and an auto reversing tap. Standard drilling capacity is up to 2” for cast iron. The user friendly control interface comes with a speed potentiometer and digital read out for displaying actual quill RPM. The inverter variable speed allows users to drill and tap various steels at the proper speed. The variable speed adjustments can be done freely within the range by a speed potentiometer knob.
