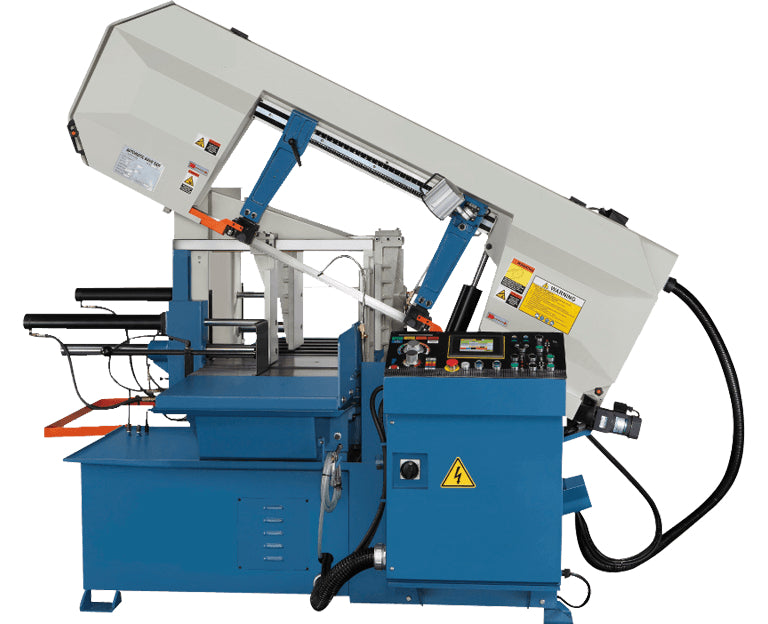

18" Automatic Single Miter Band Saw

Manufacturer: Linmac

Model: WS-1824FA


Quote Request

 Thank you for your quote request, we will be in touch shortly.

Standard Features
  • Vise pressure regulator
  • Touch screen
  • Roller feeding table
  • Vertical press vise for bundle cutting
  • Feeding length encoder
  • Auto hydraulic chip conveyor
  • Set bow height by manual
  • Blade wheel driven chip brush
  • Hydraulic blade tension gauge
  • Inverter controls blade speed
  • Angle cutting (R45˚) by manual
  • 10 jobs set cutting length and sets quantity
Specification & Capacities
  • Maximum cutting capacity:
  • 90°:
    Round 18”
    Square 18” x 18”
    Rectangular: 14.9” x 23.6”
  • 45°:
    Round 14.9”
    Square 14.9 x 14.9
  • Blade Size: (1.6"41 x 1.3 x 5730 mm
  • Blade Speed: 30 ~ 85 MPM / 98 ~ 278 FPM
  • Blade Motor: 5 HP (3.74 kw) x 4P
  • Hydraulic Motor: 1 HP (0.75kw)
  • Coolant Pump: 1/6 HP (0.12kw)
  • Hydraulic Tank: 31L
  • Coolant Tank: 105L
  • Table Height: 925mm (36.4")
