Pittsburgh Roll Forming Machine
$0.00
Unit price
/
Unavailable

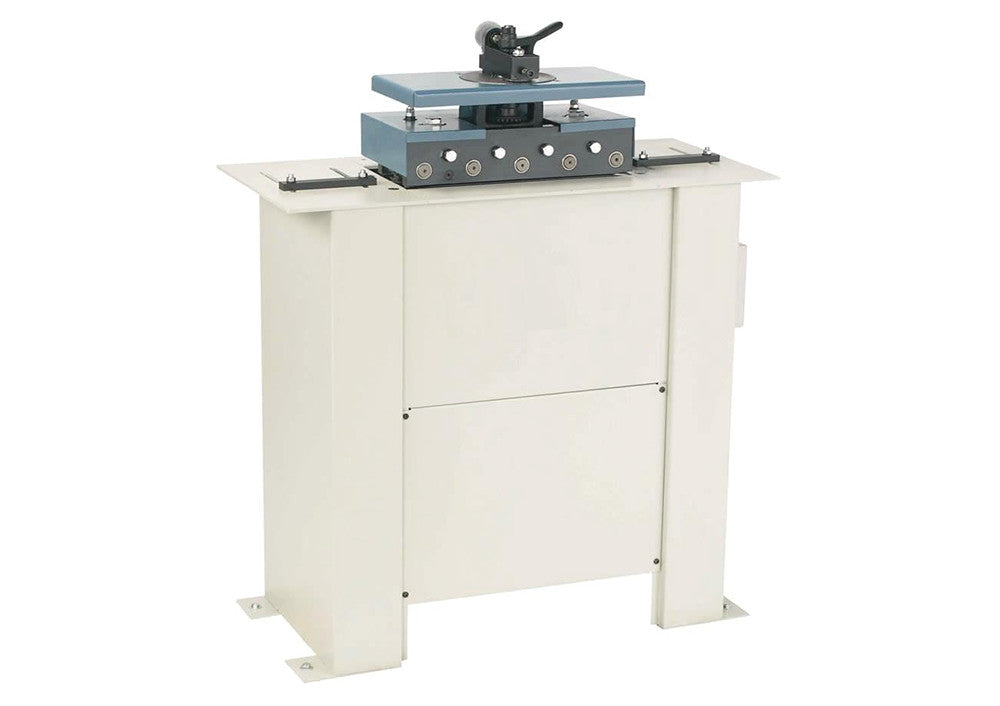

The Linmac L20 is a 20 gauge Pittsburgh lock forming machine.
Standard Features
- Designed using arc-welded steel
- Sturdy construction
- Heavy top plate
- Steel forming head
- Hardened & ground shafts
Specifications and Capacities
- Capacity: 20-26 gauge
- Depth of pocket: 5/16” width of hammer over edge adjustable to 3/8”
- Speed 25ft per minute
- Motor: 1HP 110V Single Phase
- Drive: V-belt
- Dimensions: 36” (915 mm) x 16.5” (420 mm) x 36.5” (927 mm)
- Shipping Weight: Approximately 320 lbs (145 kgs)
