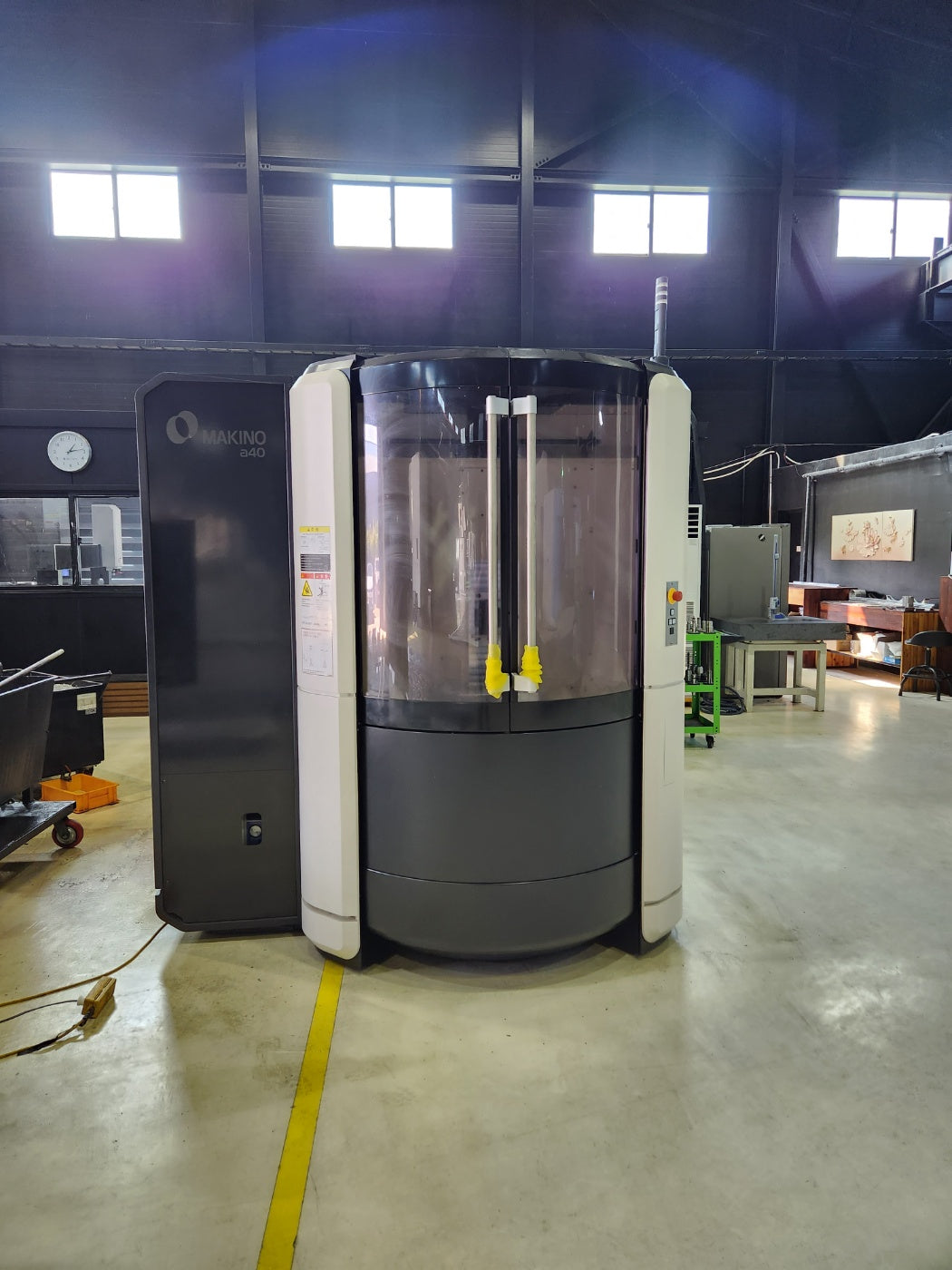

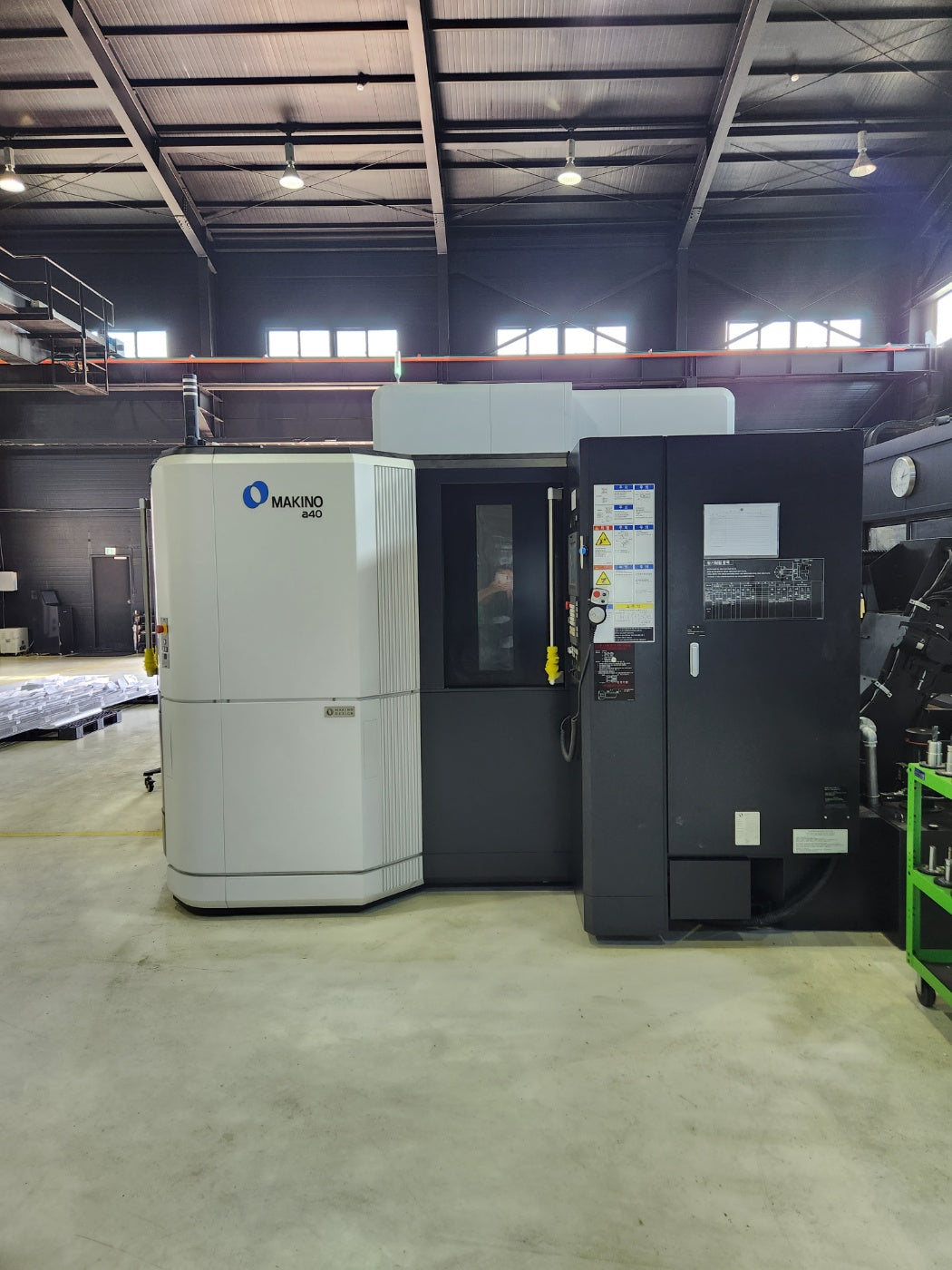

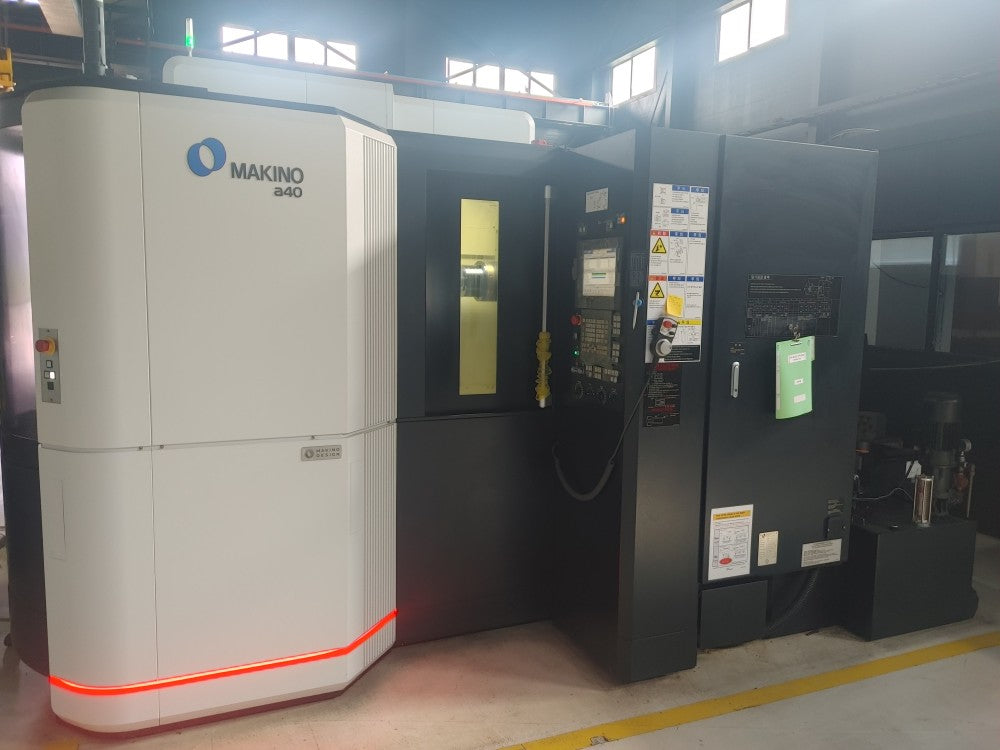

Makino a40 Horizontal Machining Center
The Makino a40 is a high-performance horizontal machining center designed for high-volume precision manufacturing. Built with Makino's rigid machine construction and high-speed spindle technology, the a40 is ideal for automotive, aerospace, medical, precision engineering, and general production machining.
This machine was production in February 2022. It is reported to have been machining aircraft components and is being released due to production capacity restructuring rather than machine performance.
Condition:
Used – Excellent Condition
Manufacturer:
Makino
Model:
a40
Year:
2022 (February)
Machine Type:
4-Axis Horizontal Machining Center (HMC)
Specifications
| Specification | Value |
|---|---|
| Manufacturer | Makino |
| Model | a40 |
| Year | February 2022 |
| Machine Type | Horizontal Machining Center |
| Axis | 4-Axis |
| Travels (X/Y/Z) | 560 × 640 × 640 mm |
| Pallet Size | 400 × 400 mm |
| Number of Pallets | Dual Pallet APC |
| Maximum Pallet Load | 400 kg |
| Spindle Speed | 20,000 RPM |
| Spindle Taper | HSK-A63 |
| Pneumatic Pressure | 0.5 – 0.8 MPa |
| Pneumatic Capacity | 410 L/min |
| Hydraulic Pressure | 10 MPa |
| Hydraulic Tank | 7.5 L |
| Full Power Consumption | 41 kVA |
| Duty Power Consumption | 25 kVA |
| Net Weight | Approx. 6,000 kg |
Features

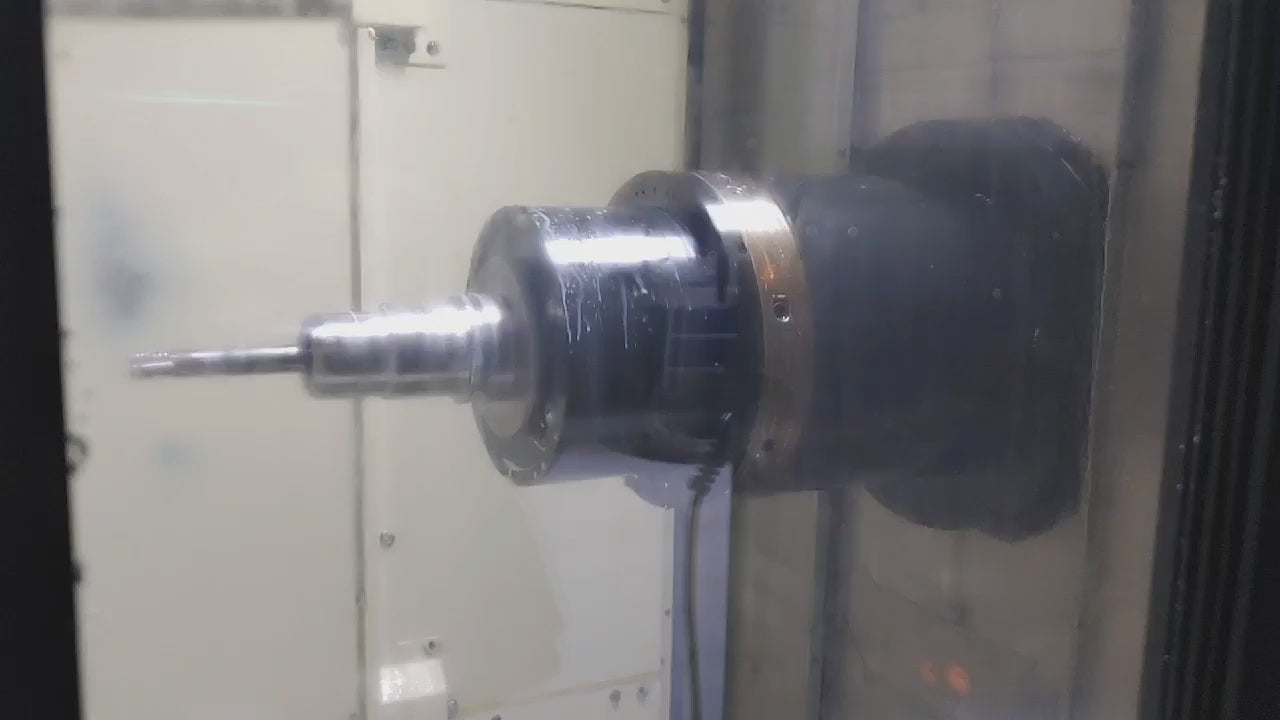

- High-speed 20,000 RPM spindle
- HSK-A63 spindle interface
- Dual pallet automatic pallet changer (APC)
- 400 × 400 mm pallets

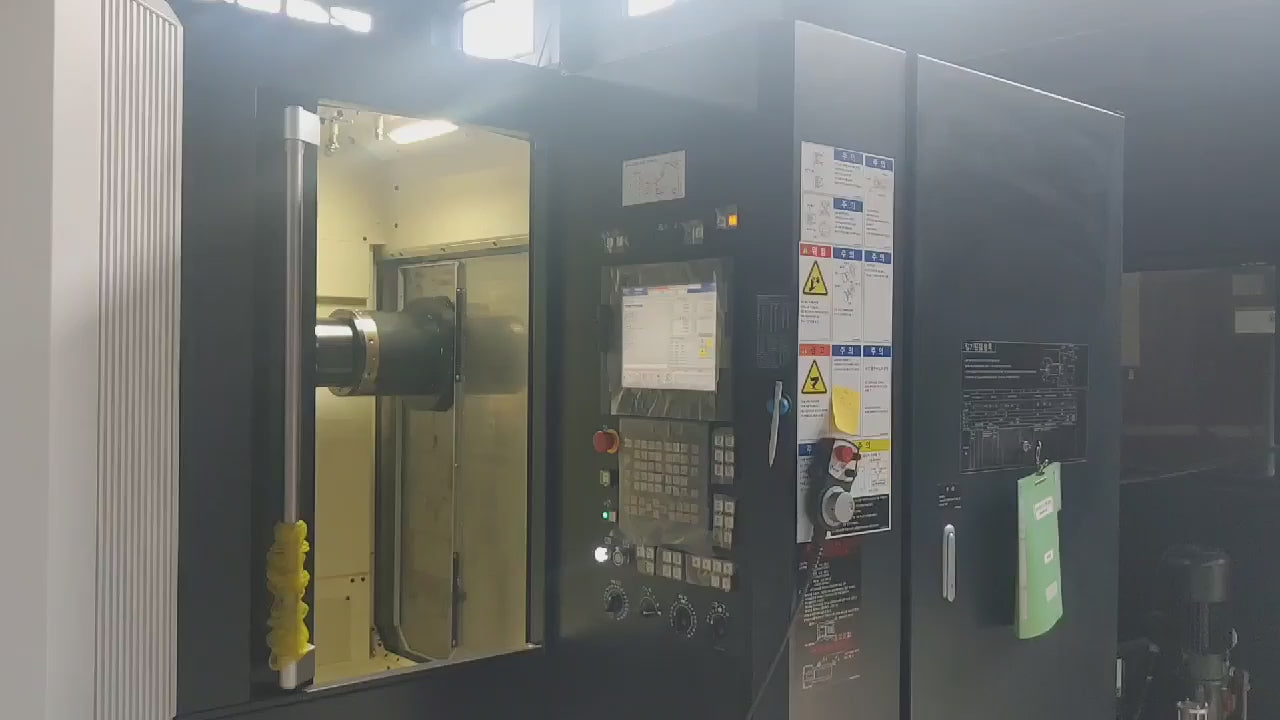

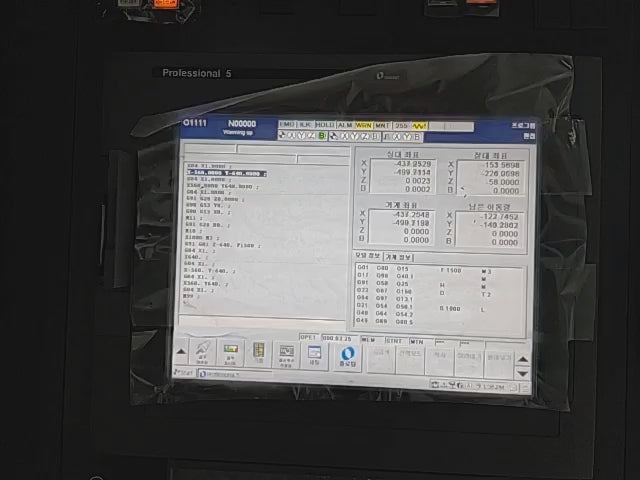

- Makino Professional Control
- Fully enclosed machining area
- High-rigidity machine construction
- Automatic lubrication system
- Industrial coolant system
- Hydraulic unit
- Chip management system
Machine Dimensions
| Item | Value |
|---|---|
| Floor Space | 2,680 × 4,249 mm |
| Weight | Approx. 6,000 kg |

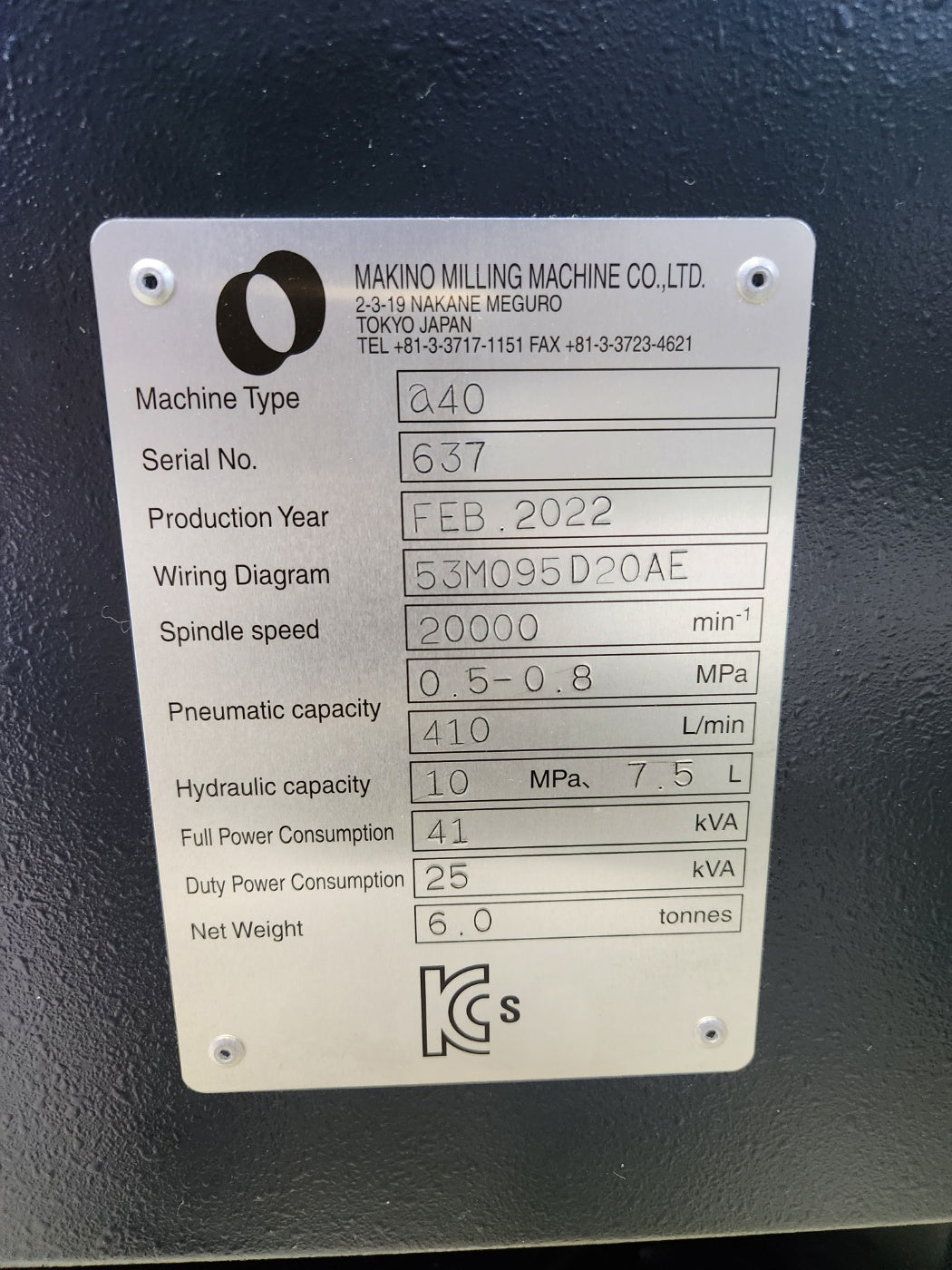

Nameplate Information (Verified)
Machine Type: Makino a40
Serial Number: 637
Production: February 2022
Spindle Speed: 20,000 min⁻¹
Pneumatic: 0.5–0.8 MPa
Air Consumption: 410 L/min
Hydraulic: 10 MPa / 7.5 L
Full Power: 41 kVA
Duty Power: 25 kVA
Net Weight: 6.0 tonnes
Seller Notes
- Previously used for aircraft component machining.
- Machine is reported to be in production and well maintained.
- Available for inspection.
- Additional videos and operating demonstrations available upon request.
