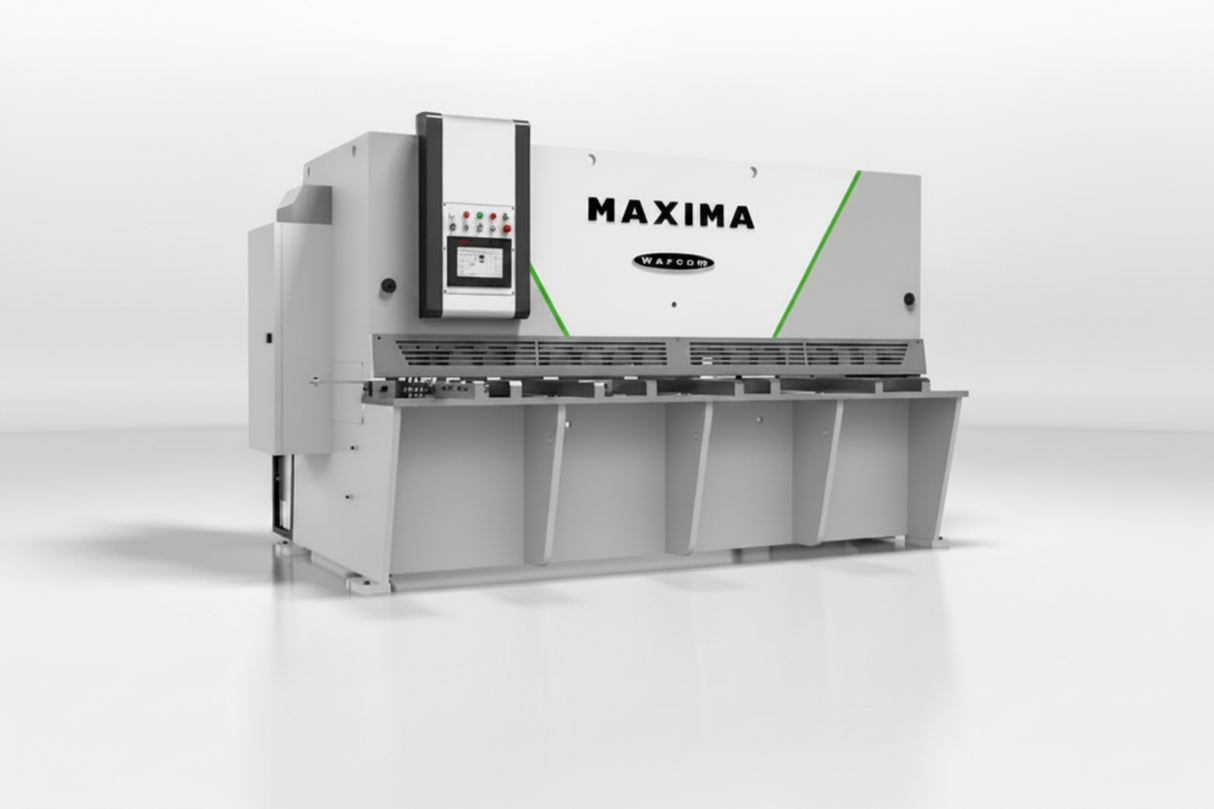

Maxima 30-4/6 Hydraulic Guillotine Shear
$0.00
Unit price
/
Unavailable
The Warcom Maxima 30-4/6 is a precision Italian-built hydraulic guillotine shear designed for professional sheet metal fabrication. Featuring a Siemens/Weintek CNC control system with programmable blade clearance, rake angle, and backgauge positioning, this machine provides outstanding cutting accuracy, repeatability, and production efficiency.
For customers requiring higher cutting capacity, the Maxima 30-6/8 is also available as an alternative model with increased cutting capacity and a more powerful drive motor.
Key Features
- Italian engineered hydraulic guillotine shear
- 3050 mm cutting length
- Siemens / Weintek 10" Touchscreen CNC
- 3 CNC controlled axes
- Hydraulic blade clearance adjustment
- Hydraulic rake angle adjustment
- Retractable CNC backgauge
- Hydraulic hold-down system
- Hardened dual-edge blades
- Automatic centralized lubrication
- Shadow line cutting system
- Heavy-duty welded frame
- CSA Certified
Machine Specifications (Maxima 30-4/6)
| Specification | Details |
|---|---|
| Manufacturer | Warcom |
| Model | Maxima 30-4/6 |
| Machine Type | Hydraulic Guillotine Shear |
| Cutting Length | 3050 mm (120") |
| Distance Between Side Frames | 3150 mm |
| Throat Depth | 500 mm |
| Mild Steel Capacity | 4 mm Nominal / 6 mm Maximum |
| Nominal Thickness | 4 mm |
| Blade Angle | 1°30' |
| Rake Angle Adjustment | 0°30' – 3° |
| Backgauge Stroke | 750 mm |
| Stroke Rate | 22–45 strokes/min |
| Main Motor | 9.2 kW |
| Electrical Supply | 400V / 50Hz / 3 Phase |
| Approximate Weight | 6,500 kg (14,330 lbs) |
Alternative Model – Maxima 30-6/8
For heavier applications, Warcom also offers the Maxima 30-6/8.
| Specification | Details |
|---|---|
| Cutting Length | 3050 mm |
| Mild Steel Capacity | 6 mm Nominal / 8 mm Maximum |
| Nominal Thickness | 6 mm |
| Blade Angle | 1°30' |
| Rake Angle Adjustment | 0°30' – 3° |
| Backgauge Stroke | 750 mm |
| Stroke Rate | 20–38 strokes/min |
| Main Motor | 11 kW |
| Electrical Supply | 400V / 50Hz / 3 Phase |
| Approximate Weight | 8,000 kg (17,637 lbs) |
Standard Equipment
Maxima machine includes:
- Siemens / Weintek 10" Touchscreen CNC Controller
- CNC control of: Backgauge, Blade clearance, Rake angle
- Retractable backgauge during cutting
- Hydraulic blade gap adjustment
- Hydraulic rake angle adjustment
- Remote foot pedal
- Two-edge blades for mild steel and stainless steel
- Hydraulic independent hold-down cylinders
- Standard front support arms
- Standard ruled squaring arm
- Automatic centralized lubrication pump
- Shadow line cutting guide
- CSA compliant
- Machine supplied without first-fill hydraulic oil
Optional Accessories
Pneumatic Sheet Support Arms
- Pneumatic sheet support arms (maximum 3 mm sheet thickness up to 3000 mm)
- Pneumatic sheet support arms with follow-down movement (maximum 4 mm sheet thickness)
Ruled Side Square Arms
- 1000 mm with one swing stop
- 1500 mm with one swing stop
- 2000 mm with one swing stop
Additional Accessories
- Milled flat bench up to 3000 mm
- Covers for standard bench
- Rubber covers for hold-down pistons
- Protractor square arm – 500 mm
- Protractor square arm – 1000 mm
- Shaped front safety guard
- Ball transfer bench
Services
- Installation and operator training by Warcom technicians (travel and accommodation excluded)
Industries
Ideal for:
- Sheet Metal Fabrication
- Steel Service Centres
- HVAC Manufacturing
- Agricultural Equipment
- Trailer Manufacturing
- Metal Processing
- General Engineering
- Industrial Manufacturing
Why Choose the Warcom Maxima Series?
- Premium Italian engineering
- High-precision CNC control
- Fast setup and repeatability
- Hydraulic blade clearance adjustment
- Hydraulic rake angle adjustment
- Robust welded construction
- Heavy-duty industrial performance
- CSA Certified
- Designed for continuous production environments
