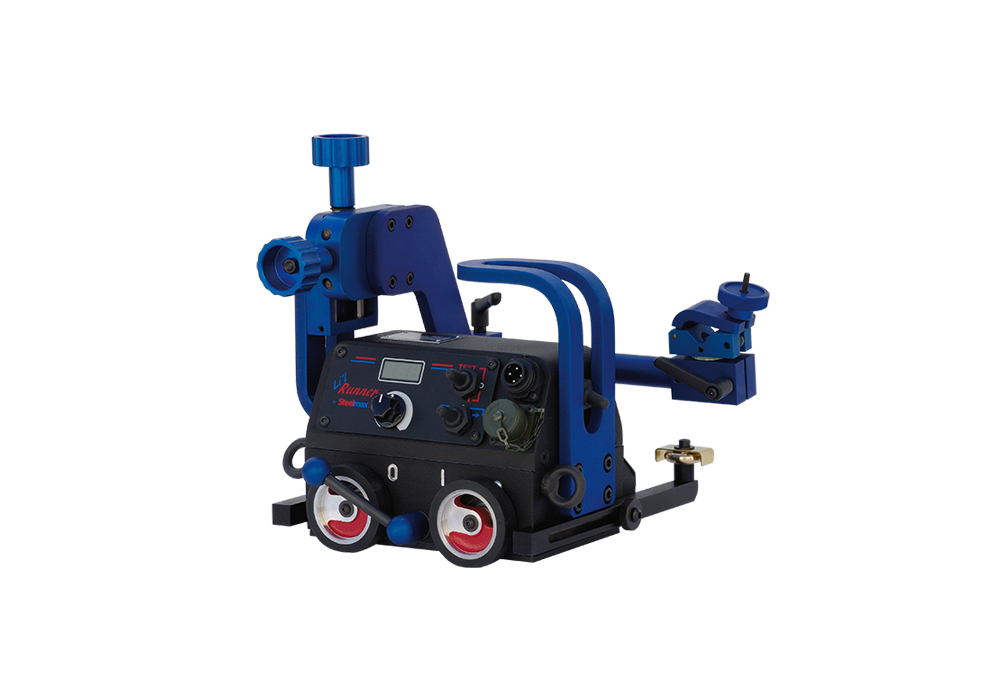

Portable Fillet Welding Carriage

Manufacturer: Steelmax

Model: Li’l Runner


Increase your production and reduce your welding costs with the Li’l Runner Automatic Fillet Welding Carriage. By providing constant, non-stop travel at a regulated speed, Li’l Runner produces consistent high-quality welds in a fraction of the time required by hand welding. The regulated travel speed creates weld bead geometry which is exact to your specifications, reducing costly over welding and decreasing filler metal usage by as much as 60%. Li’l Runner will produce quality welds faster and with less cost than hand welding. At just over 17 lbs (8 Kg), this compact, portable tractor can be carried anywhere.

The Li’l Runner Welding Carriage is available in two unique verisons; (i) the high speed version (up to 86 IPM) which can be used for cutting and welding applications; and (ii) the dual power version (battery powered with a line power adapter).  The Li’l Runner family of carriages offer a broad range of capabilities in one of the smallest fillet welders on the market today.

Standard Features
  • Compact, lightweight design with durable cast aluminum housing
  • Positive magnetic traction permits out of position use
  • Magnetic adhesion on/off lever permits easy set up and adjustment on work piece
  • Maintenance-free, 4-wheel planetary gear drive system
  • Digital LED display for presetting of travel speed
  • Rapid clamp torch holder mechanism for different types of MIG/MAG torches
  • Precise cross-slide torch adjustment
  • Integrated automatic arc initiation
  • Self-guiding roller arms eliminate the need for track
Specifications and Capacities

Power Supply

Dual Voltage 120V/230V or battery powered

Welding Position

Vertical/Horizontal

Minimum material thickness

5/32” (4mm)

Chassis to material clearance

5/32” (4 mm)

Travel mechanism

4 heat-resistant wheels equipped with magnetic base

Tracking method

2 guide rollers

Pulling power

22 lbs (10 kg) Vertical 33 lbs (15 kg) Horizontal

Cross slide adjustment: Up-Down Left-Right

1.4” (35 mm) 1.4” (35mm)

Guide roller adjustment

4” (100 mm)

Control panel: Switch Switch Knob – speed control

Power supply On/Off Start Left, Stop, Start Right 0-43 ipm (0-1000 mm/min)

Dimensions

9.6 x 10 x 9.5” (240x258x253 mm)

Weight

17.5 lbs (8 kg)

Part Number

SM-WC-LR-HS; SM-WC-LR-DP
