Scotchman • Automated Stop Gauge
$0.00
Unit price
/
Unavailable
Description

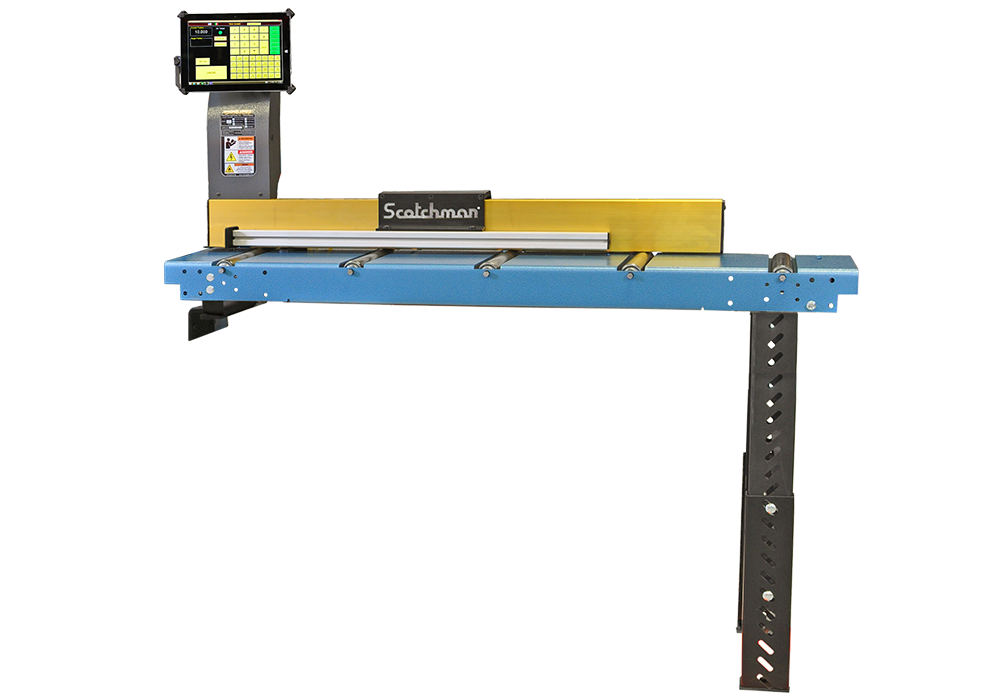

Scotchman's Digital Quick Stop is an entry level programmable stop (not designed to push feed). Setup is as easy as entering the desired cut length and pressing go. It can be mounted to move left to right OR right to left. Available in 8' and 12' lengths. The Digital Quick Stop can be easily paired with most units from Scotchman's Cold Saw or your existing saw, drill, or punch station.
Standard Features
- Digital Length Positioner

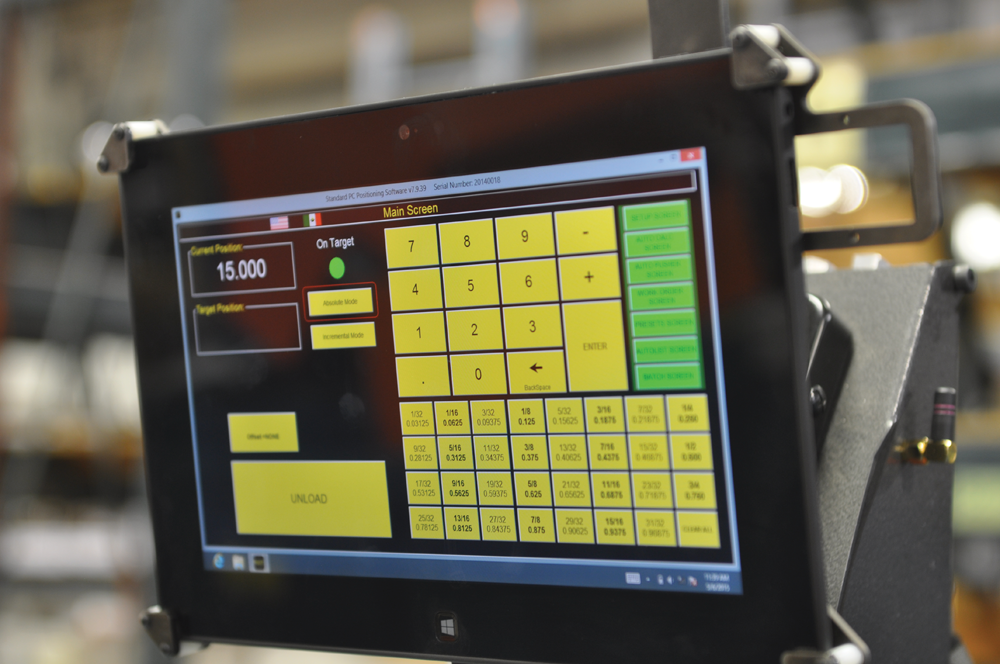

- Android tablet
- Works in inches, fractions, decimal or metric
- Fraction keys work as the "go" key
- Unlimited preset hot keys and cut list storage
- Email cutlists over a WiFi network or create on-screen
- Keypad has large, easy to read numbers
- Adjustable reach stop
- Supports barcode operations and remote serial commands
- Warranty: One year on parts
- Made in the USA
Specifications and Capacities
| Lengths: | 8' and 12' Working lengths |
| Speed: | 17 inches per second |
| Accuracy: | Positioner accuracy ±0.008" |
| Screen: | 7" Android tablet |
| Storage: | Unlimited preset keys & list storage |
| Measurements: | Inches, Fractions, Decimals OR Metric |
| Feed Direction: | Mounts: left → right -OR- right → left (must specify) |
| Voltage: | 120 VAC |
