Name: Scotchman • Automated Stop/Pusher System
Brand: Brennan Machinery
SKU: 41711136407727
Availability: InStock

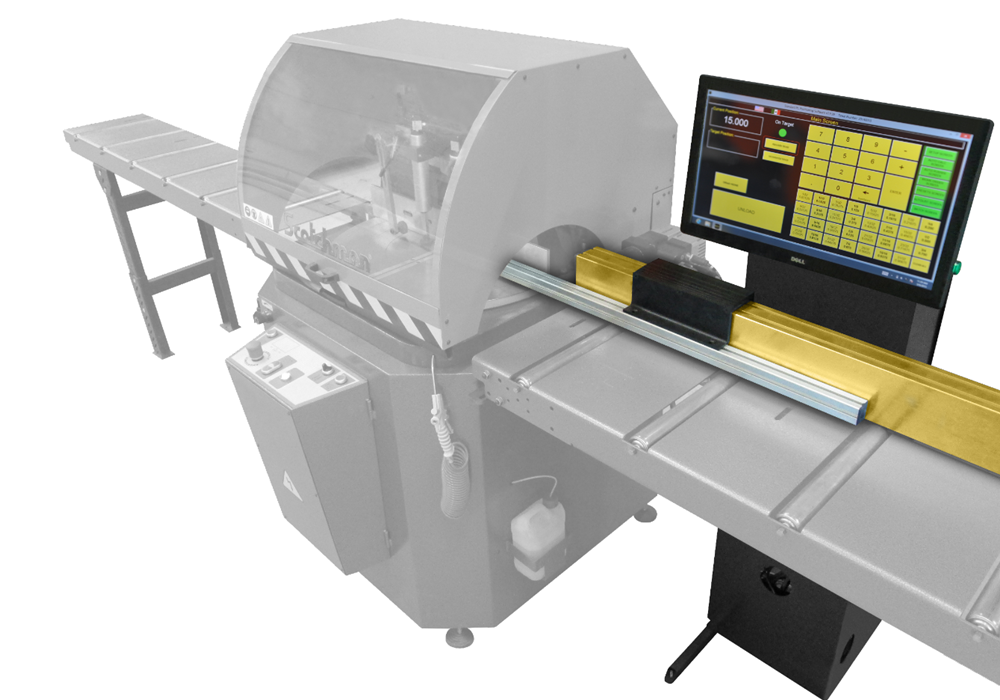

Scotchman • Automated Stop/Pusher System

Description

The Scotchman Stop/Pusher System can be used as a "go to" stop or as a semi-automatic push feed system. It uses Windows-based technology with touch screen controls. The system can be mounted to feed left to right OR right to left. Available in lengths from 8' to 30'. The Stop/Pusher system can be paired with the punch stations of the Scotchman Ironworkers and Scotchman Cold Saws

Standard Features

Programmable length stop or material pusher
Windows® touchscreen technology
Works in inches, fractions, decimal or metric
Fraction keys work as the "go" key
Unlimited preset keys and list storage
Send cutlists over WiFi or create on-screen
Supports barcode operations and remote serial commands
Multi offset allows for multiple tool positions
Electronic zero-point calibration
Steel reinforced belt drive with adjustable drive speed of 1" to 25" per second
Warranty: One year on parts
Made in the USA

Specifications and Capacities

Lengths:	8' to 30' Working Lengths
Speed:	Adjustable 1" to 25" per second
Accuracy:	Positioner accuracy ±0.008"
Screen:	17" Windows® touchscreen
Storage:	Unlimited preset keys & list storage
Measurements:	Inches, Fractions, Decimals OR Metric
Language:	Multi-lingual
Feed Direction:	Mounts: left → right -OR- right → left (must specify)
Voltage:	120 VAC
Functions:	Auto Pusher Mode Batch Mode Incremental Mode Set Point Mode
