10 Foot 14 Gauge Mechanical Shear

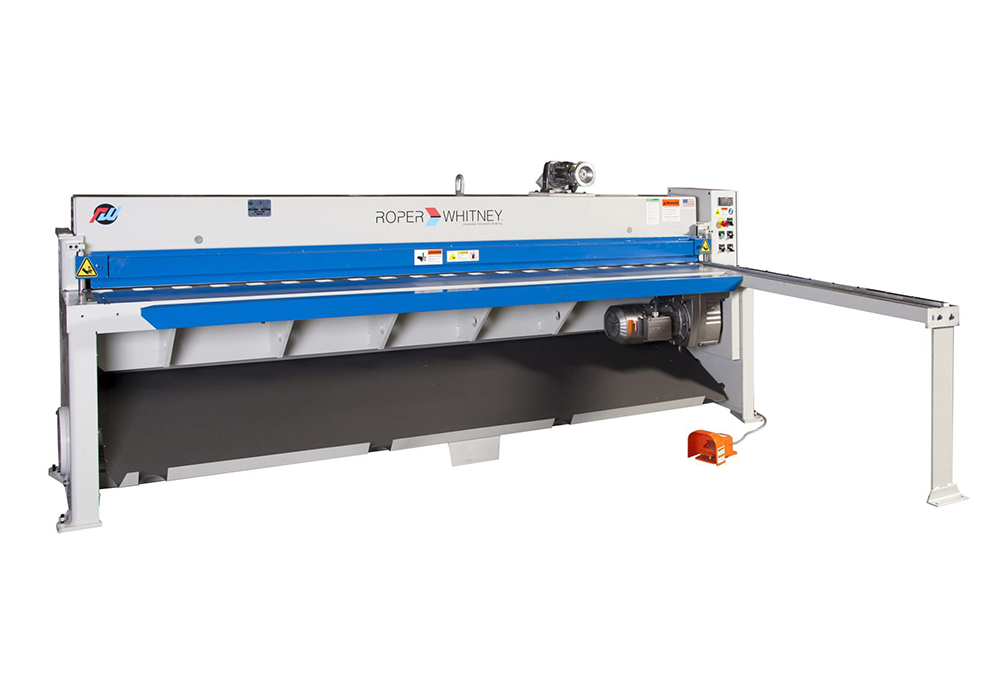

The Roper Whitney 10M14 has a capacity for 14-gauge mild steel, 18-gauge stainless up to 121 inches in cutting length. This machine shears are standard with a two edge interchangeable top and bottom, high carbon, high chrome top and bottom blades , independent, self-leveling hold down with neoprene insert, single, continuous and jog stroke cycles, motor reverse switch, precision-machined table, with dual inch/metric inlaid bed scales and non-metallic gibs. Non-metallic self-lubricating ram gibs ensure long life for the 10M14. Maintenance free self-lubricating bearings are standard.
Specifications and Capacities
|
Weight |
5500 lbs |
|
Maximum shearing capacity, mild steel rated materials at 80,000 tensile/ 44,000 yield |
14 ga/ 2,0 mm |
|
Maximum shearing capacity, stainless steel rated materials at 90,000 teniles/ 55,000 yield |
18 ga/ 1, 25 mm |
|
Maximum cutting length |
124.25 in/ 3155 mm |
|
Back gauge range |
24 in |
|
Strokes per minute |
35 |
|
Hold down system |
Solid bar with non-marring urethane insert |
|
Drive motor - 230/460v, 3-phase, 60 Hz |
5 hp |
|
Back gauge motor - 230/460v, 3-phase, 60 Hz |
1/4 hp |
|
Overall dimensions, less gauges |
141 x 27 x 52 in |
|
Floor space, gauges in position |
141 x 62 x 52 in |
