36" Adjustable Bar Folder

Manufacturer: Roper Whitney

Model: No. 55


Quote Request

 Thank you for your quote request, we will be in touch shortly.

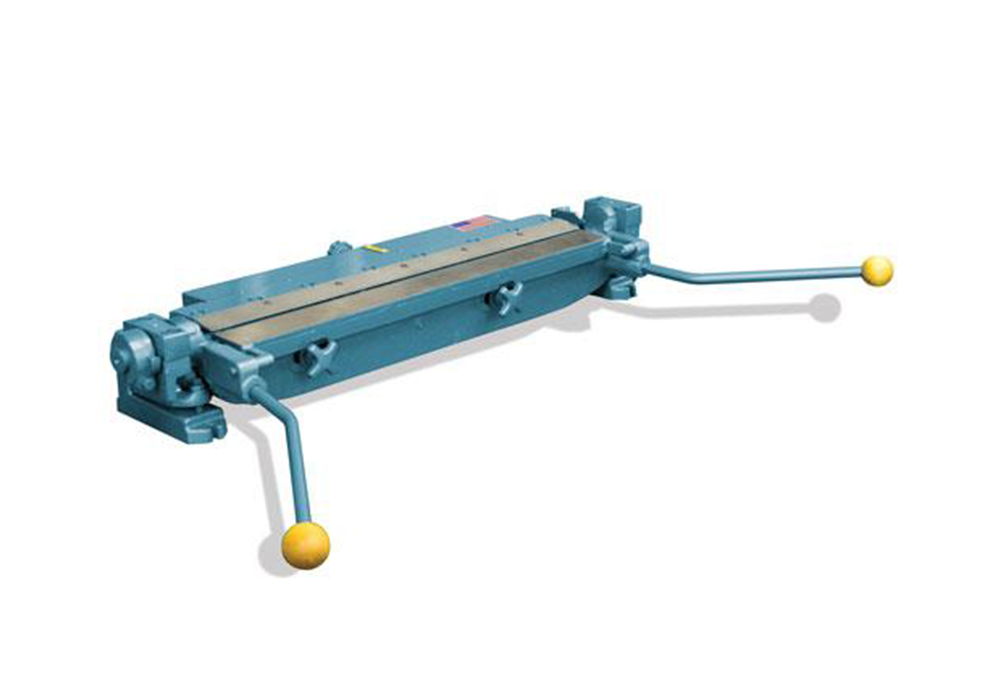

The Roper Whitney No. 55 bar folder is an adjustable machine that performs multiple sheet metal operations using one motion to clamp and fold. It accommodates up to 36 inch material with a maximum of 20 gauge. A quick set back gauge is included.

Specifications and Capacities

Weight

485 lbs

Dimensions

50 × 30 × 11 in

Maximum folding length

36 in/ 915 mm

Capacity, mild steel

20 ga/ 1.00 mm

Back gauge adjustment

1/8 – 1 in/ 3.17 – 31.75 mm

Maximum round fold diameter (for wire)

3/8 in/ 9.5 mm

Roper Whitney

36" Adjustable Bar Folder

The Roper Whitney No. 55 bar folder is an adjustable machine that performs multiple sheet metal operations using one motion to clamp and fold. It accommodates up to 36 inch material with a maximum of 20 gauge. A quick set back gauge is included.

Specifications and Capacities

Weight

485 lbs

Dimensions

50 × 30 × 11 in

Maximum folding length

36 in/ 915 mm

Capacity, mild steel

20 ga/ 1.00 mm

Back gauge adjustment

1/8 – 1 in/ 3.17 – 31.75 mm

Maximum round fold diameter (for wire)

3/8 in/ 9.5 mm
