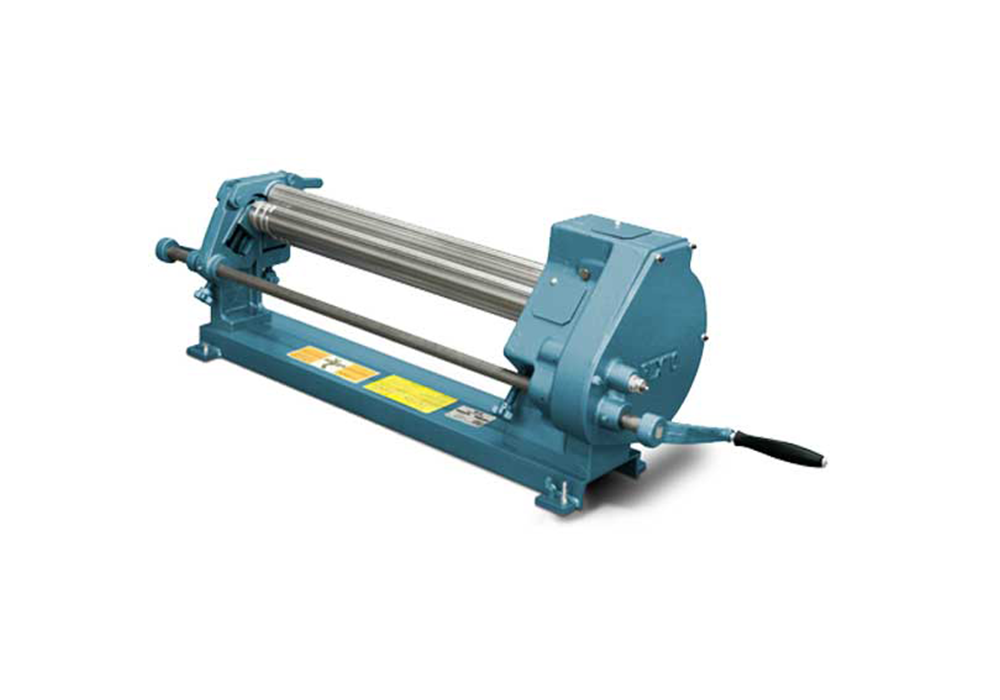

48 Inch 16 Gauge Manual Roll Bender

Manufacturer: Roper Whitney

Model: No. 418


Quote Request

 Thank you for your quote request, we will be in touch shortly.

The Roper Whitney No. 418 manual roll has 3″ precision turned and ground high carbon steel rollers. There are three wiring grooves 3/8″, 1/2″ and 5/8″. All rolls are standard with fully enclosed gear housings and all three rolls are driven. The upper roll lifts for conventional removal of the work piece. The maximum sheet length is 48″ with a thickness capacity of 18 gauge mild steel.

Specifications and Capacities

Weight

793 lbs

Dimensions

81 × 19 × 19 in

Maximum capacity, mild steel

16 ga/ 1.60 mm, 18 ga/ 1.25 mm

Maximum forming length

48 in/ 1219 mm

Roll diameter

3 in/ 76 mm

Minimum forming radius

1.5 in/ 38 mm

Gearing ratio

4:01

Wiring grooves

3/8, 1/2, 5/8/ 9.5, 12.5, 15.5
