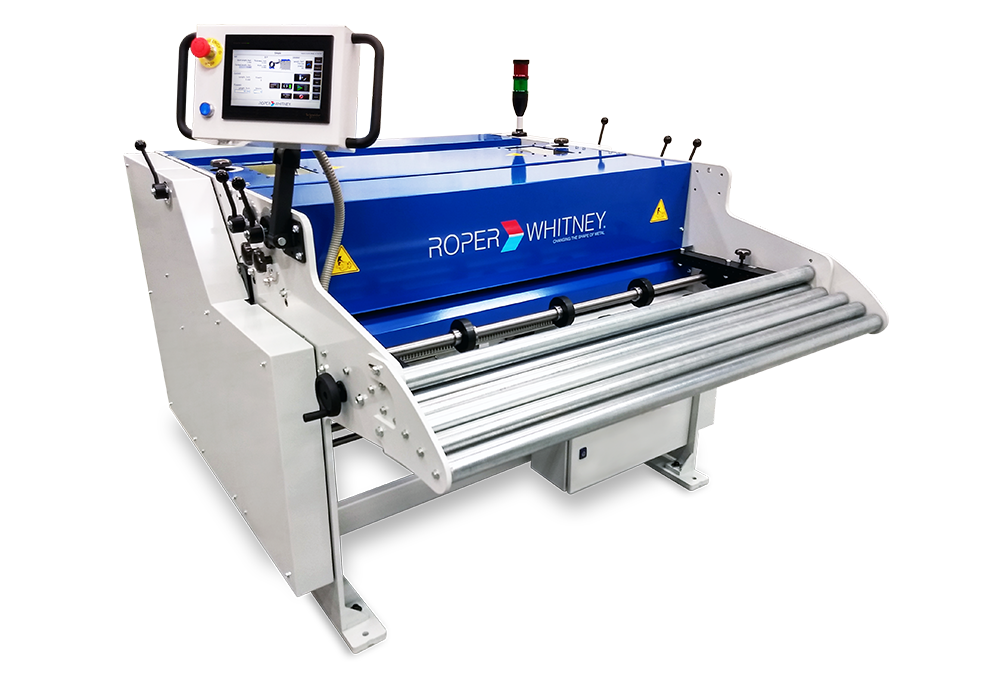

20 Gauge Automatic Coil Processor
The Roper Whitney AutoKut model 1250 is designed for long term serviceability with all mechanisms on the outside of the machine, slitter and guillotine blade changes are easy to perform and do not require disassembly of machine. It can be operated on either side of the machine.
It has a maximum speed of 85 ft. per minute and can accommodate coils up to 49″ wide. Materials can be slit in thicknesses up to 20 gauge mild steel and blanked in thicknesses up to 18 gauge. Comes standard with 5 pairs of slitting blades, the slitter blades can be re-positioned quickly and accurately with the simple setup gauge. Shear cycle time is approximately 1 second.
Standard Features
- Unique two piece slitter knife design offering unbeatable performance
- Adjustable slitting knife depth based of material thickness to eliminate chamber of the work piece
- Gibb slitter knife engagement which eliminates side movement of the knifes helps ensure long blade life
- Quick release with locks, fully adjustable coil guides prevent material side movement
- Adjustable deflection rollers to better support the infeed of material from the coil
- Durable powder coated surface finish
- Sight-line visibility of feed materials
- Safety interlock system designed to CE Standards
- World renowned Schneider electrical components
- Easy to use Schneider operator interface with light tower prompts
- Material saving features including auto-clean cut alert at the jobs end to eliminate waste
- Variable speed drive enabling long lengths to be produced more quickly and more accurately
- Automatic material length calibration
- Variable speed acceleration for use with a wide variety of decoiler designs
- Adiprene coated feed rolls with cam adjustment for raising and lowering prevents marking of materials
- Two over one straightening rolls with gauge adjustment for accurate repeat setups
- Integrated electro-mechanical shear design for fast, quiet shear operation
- Quick change slitter knife system- full repositioning of knifes in less than 3 minutes
- Two cutting edge top and bottom shear blades
- Decoiler options available
Specification and Capacities
|
Weight |
4055 lbs |
|
Dimensions |
72 × 66 × 46 in |
|
Maximum Slitting Capacity (5 Knifes Engaged) |
Mild Steel – 20 gauge / 1.0mm Stainless Steel – 24 gauge / 0.61mm Aluminum – 18 gauge / 1.25mm |
|
Maximum Blanking Capacity |
Mild Steel – 18 gauge / 1,25mm Stainless Steel – 22 gauge / 0,76mm Aluminum – 16 gauge / 1,61mm |
|
Maximum Material Width |
49.250” / 1250 mm |
|
Minimum Material Width |
8” / 200 mm |
|
Number of Straightening Rolls |
3 (1 over 2) |
|
Minimum Slit Width |
2 3/8” / 60 mm |
|
Minimum Edge Trim |
¼” / 6.4 mm |
|
Number of Slitting Knives |
5 |
|
Slitting Speed Variable |
85 FPM / 25 MPM |
|
Drive Motor |
3 hp / 2.2 kw |
|
Guillotine Motor |
2 hp / 1.5 kw |
