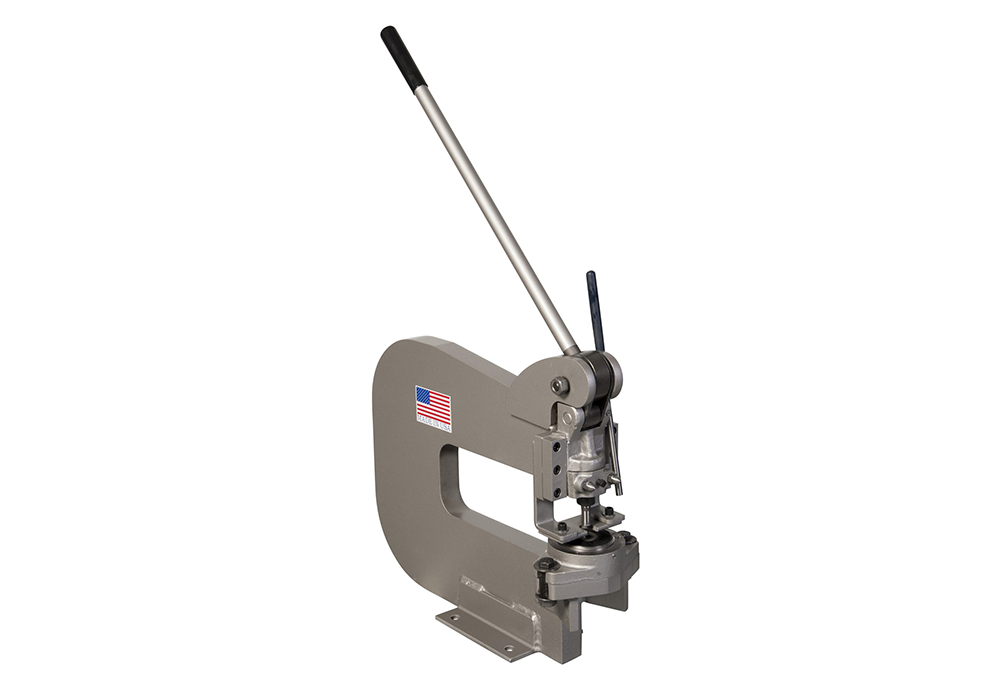

Roper Whitney • Bench Punch • 12″ Throat Depth • No. 218

Manufacturer:

Model:


Quote Request

 Thank you for your quote request, we will be in touch shortly.

Description

The Roper Whitney No. 218 is ideal for prototype, short production runs and model shops. The adjustable die shoe permits the proper alignment of close fitting punches and dies to accommodate very thin materials as well as heavier stock. The 218 has a 12″ throat depth, 3/16″ ram adjustment and an optional cabinet base and a 12″ square work table. Includes standard equipment: One L8 punch holder, one No. 20 die adapter, one No. 40 die adapter, one 118- 2 3/4″ die shoe, stripper arms, one A6 stripper plate, and one 1/2″ round punch and die set.

Specifications and Capacities

Weight

160 lbs

Dimensions

25 × 9 × 20 in

Length of stroke

3/4 in/ 19.05 mm

Throat depth

12 1/4 in/ 311.15 mm

Diameter of punch shank hole in ram

1 in/ 25.4 mm

Depth of punch shank hole in ram

1 1/4 in/ 31.75 mm

Slug clearance

2 1/4 in/ 57.15 mm
