4 Foot 16 Gauge Box and Pan Brake
The Roper Whitney floor-mounted manual bending brakes are precision machines designed for accurate bending with rated capacities.
The model U416 is a heavy-duty bench brake suitable for box and pan or straight bending in up to 16-gauge mild steel. The brake features a removable apron angle and apron insert permitting 1/4-inch reverse bends in lighter materials. The front to rear adjustment of the U416 allows for a wide range of radius bending.

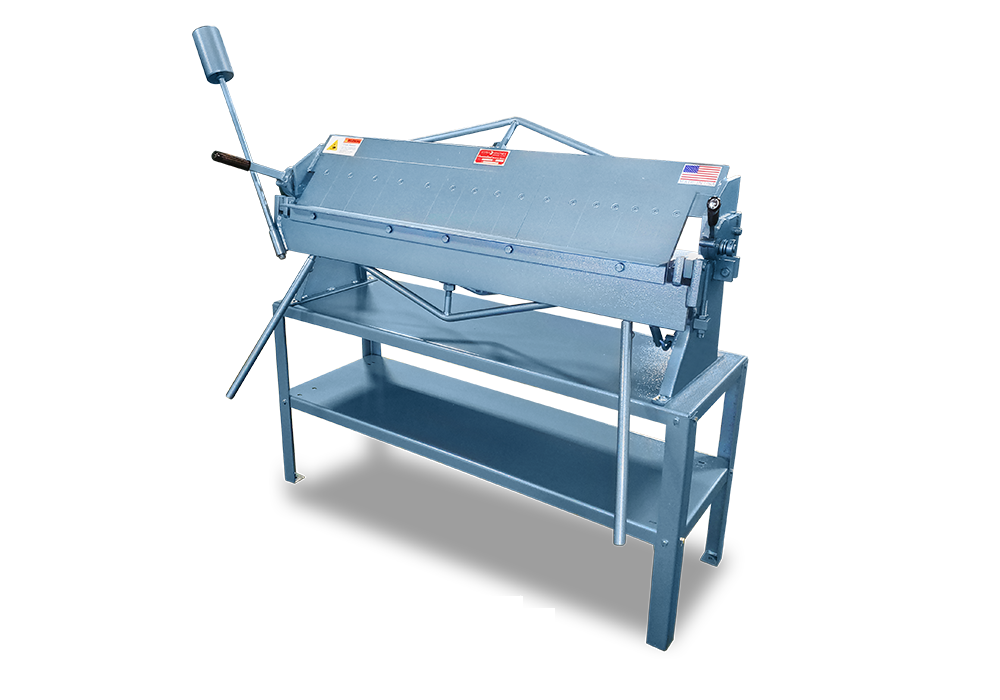

Please note that the stand featured in the image is not included.
Standard Feature
- Length - 48”
- Apron stop rods for repeat bends
- Heavy tie rods for minimum deflection
Specifications and Capacities
|
WEIGHT |
495 lbs |
|
DIMENSIONS |
61 × 20 × 28 in |
|
CAPACITY MILD STEEL, 1-INCH FLANGE, WITH BENDING BAR AND ANGLE IN PLACE |
16 ga/ 1.60 mm |
|
CAPACITY MILD STEEL, 1-INCH FLANGE, WITH BENDING ANGLE REMOVED |
20 ga./ 1.00 mm |
|
CAPACITY MILD STEEL, 1-INCH FLANGE, WITH BENDING BAR AND ANGLE REMOVED |
24 ga./ 0.61 mm |
|
MINIMUM REVERSE BEND (BAR AND ANGLE REMOVED) |
1/4 in/ 6.35 mm |
|
MAXIMUM LIFT OF BEAM |
1 1/4 in/ 31.75 mm |
|
FINGER WIDTHS |
2,3 and 4 inch/ 51, 72 and 101 mm |
|
MAXIMUM DEPTH OF BOX |
4 in/ 102 mm |
|
FRONT TO REAR ADJUSTMENT |
5/8 in/ 16 mm |
|
BENCH STAND (OPTIONAL) |
56" long, 18" wide, 26" high |
