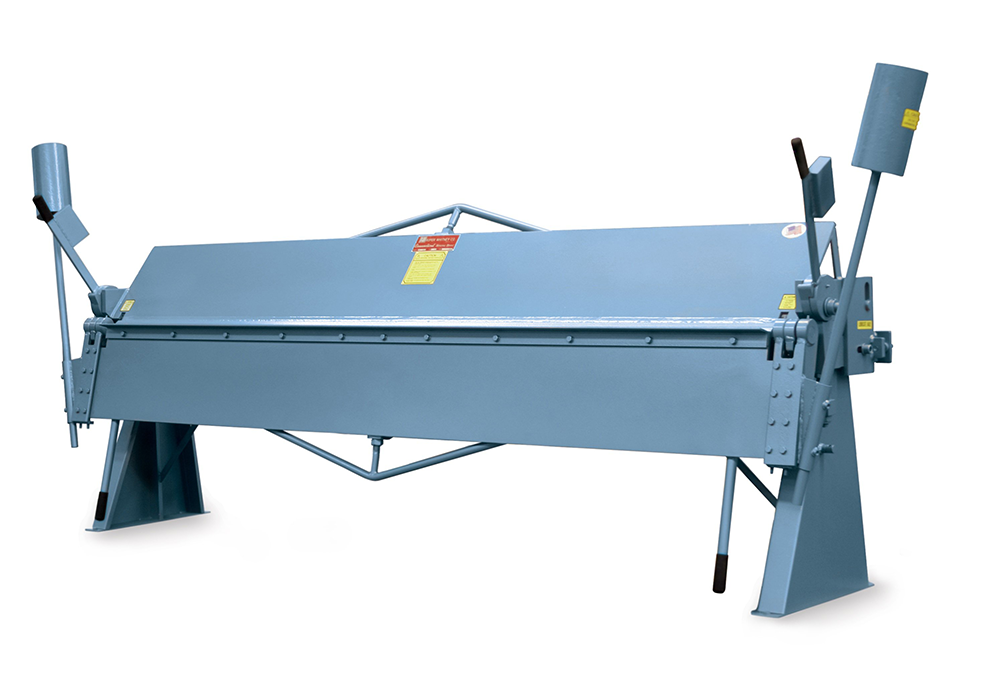

8 Foot 16 Gauge Straight Brake
The Roper Whitney Connecticut floor mounted manual bending brakes are precision machines designed for accurate bending with rated capacities. All Connecticut bending brakes have positive clamping pressure adjustment, apron stop rods for repeat bends, long handles for extra leverage, work support angle bar for full capacity 1-inch minimum flange, Improved leg design for lighter weight, all steel construction – no castings, heavy tie rods for minimum deflection, removable bending bar and angle, adjustable apron hinges and a positive rear material gauge adjustment. This machine has a bending capacity of 16 gauge up to 8 feet long.
Standard Features
- Length - 96”
- Bending Angle: 0-135°
- Beam Adjustment: 1”
- Min Reverse Bend: 5/8”
- Positive clamping pressure adjustment
- Adjustable apron hinges and a positive rear material gauge adjustment
- Apron stop rods for repeat bends
- Heavy tie rods for minimum deflection
Specifications and Capacitates
|
Weight |
1640 lbs |
|
Bending length |
97 in/2464 mm |
|
Capacity mild steel, 1-inch flange, with bending bar and angle in place |
16 ga/1.60 mm |
|
Capacity mild steel, 1-inch flange, with bending angle removed |
20 ga/1.00 mm |
|
Capacity mild steel, 1-inch flange, with bending bar and angle removed |
24 ga/0.61 mm |
|
Minimum reverse bend (bar and angle removed) |
1/4 in/0.60 mm |
|
Maximum lift of beam |
1 5/8 in/41 mm |
|
Front to rear adjustment |
1 1/8 in/28.5 mm |
