52 Inch 16 Gauge Hydraulic Squaring Shear

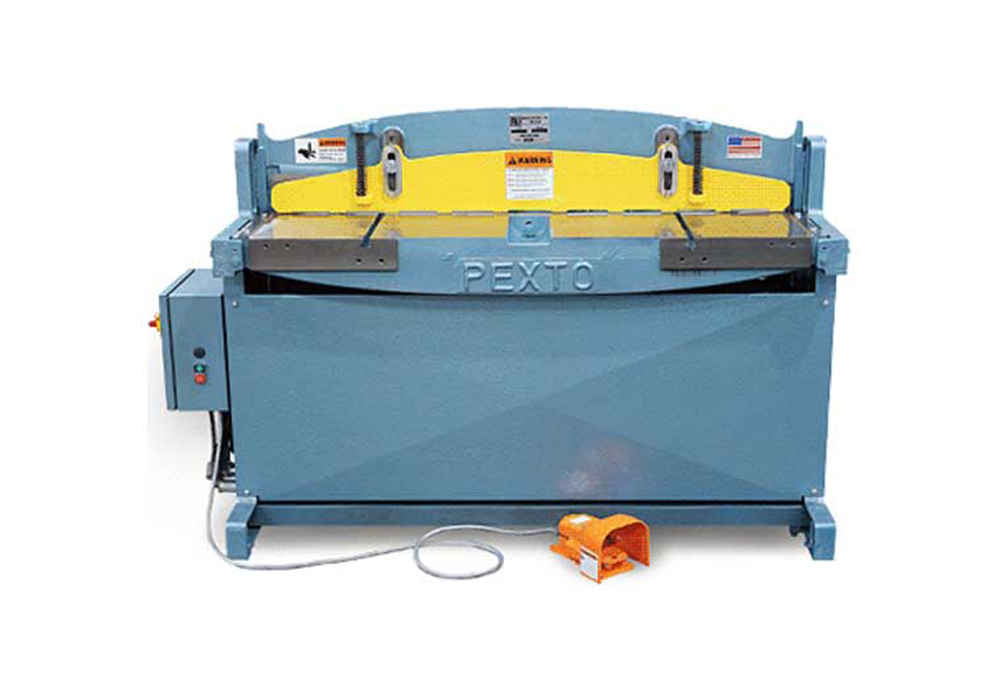

The Roper Whitney Pexto PH-52 power squaring shear features compact, fully-integrated, hydraulically powered units that are ideal for many light gauge shearing applications. The shear offers triple-action shearing which includes relief on both edges of both the fixed and moving blades. The blade design eliminates blade-to-blade friction, provides “bite” to minimize sheet movement under shearing stress and produces double penetration in the cutting action. This shear will handle a 52″ sheet and has a maximum rated capacity of 16 gauge for mild steel.
Standard Features
- Fully enclosed control panel, with magnetic starter, selector switch and relays
- Single or continuous stroke operation.
- Heavy duty foot switch. If released anywhere in the stroke, crosshead returns to “up” position.
- Pressure relief valve to prevent overloading.
- Electric solenoid hydraulic valve for instantaneous response.
- Dial stroke control – accessible adjustment with stroke length indicator.
- Hydraulic power uniformly applied through double-acting cylinders.
Specifications and Capacities
|
Weight |
1350 lbs |
|
Dimensions |
72 × 48 × 36 in |
|
Maximum shearing capacity, mild steel |
16 ga/ 1,6 mm |
|
Maximum shearing capacity, stainless steel |
20 ga/ 1,0 mm |
|
Maximum cutting length |
52 in/ 1320 mm |
|
Back gauge range |
30 in/ 762 mm |
|
Front gauge range |
37 in/ 940 mm |
|
Standard motor |
2 hp/ 1800 rpm, 3-phase |
|
Floor space, gauges in position |
66 x 76 x 42 in/ 1676 x 1930 x 1070 mm |
|
Electrical |
Comes in 230V and 460V configurations |
