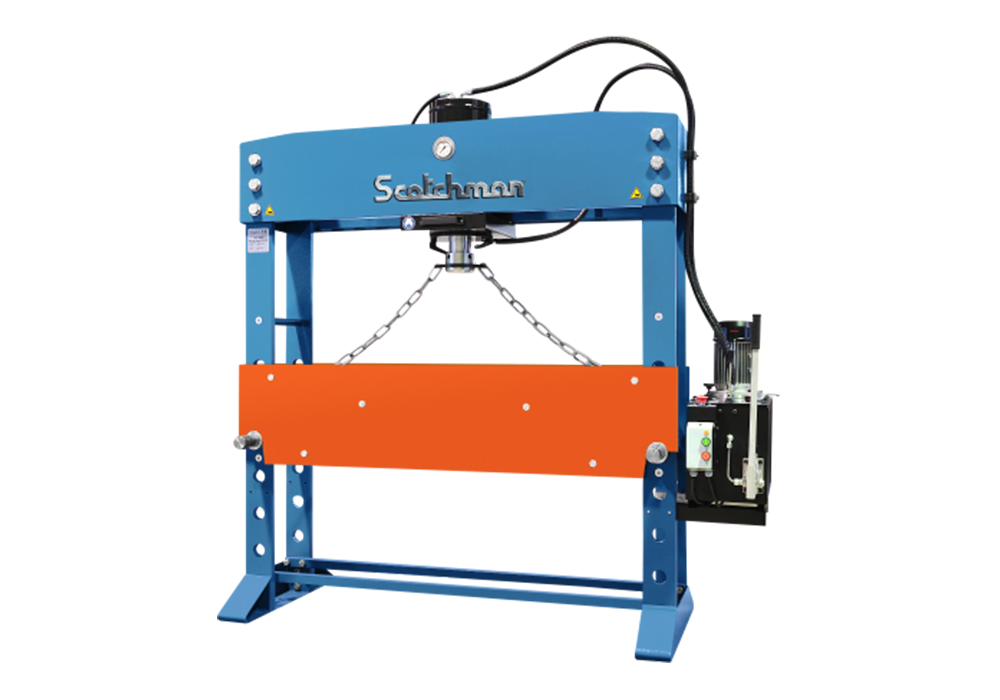

176 Ton H-Frame Press
The Scotchman PressPro 176 ton workshop press is equipped with a movable cylinder (left-right) and an in-height adjustable working table.
The motorized hydraulic unit comes standard with a pressure regulator, 2 speeds, a joystick and a hand pump for precision pressing.
This press is industrial-grade and ideal for assembly, straightening, fabrication, quality control, maintenance, product testing, bending, & forming.
They're simple to use and solve a variety of demands to improve user’s productivity. The open side frame design allows for material to pass through and provides flexibility to work on the longest work pieces. The adjustable H-frame bed height offers increased versatility with its ability to raise and lower the table for the best working distance possible.
The PressPro is backed by a 3-year warranty.
Standard Features
- Heavy Duty All-Steel Construction
- Industrial Grade Hydraulic System
- Ram Moves Laterally for Added Versatility
- 3 Ram Speeds15-3/4" of vertical ram travel
- Joystick Operation with Hand Pump Option
- Removable Ram Cap to Accept a Wide Variety of Tooling
- Open-side frame design allows for material to pass through
- Adjustable H-Frame Table Height Offers Increased Versatility
- Hydraulic-assist adjustable work table for maximum operator safety
- Set of V-blocks to simplify your pressing jobs
- Pressure gauge to monitor force
- Three-year warranty
- Made in the Netherlands
Specifications and Capacities
|
Capacity |
176 Ton |
160 mt |
|
Motor Rate |
4 hp |
3 kW |
|
Motor Options (must specify) |
230/460v, 3ph |
|
|
RPM |
3,000 |
|
|
Ram Speed - Approach |
18 ipm |
7.54 mm/s |
|
Ram Speed - Press |
5 ipm |
2.47 mm/s |
|
Ram Speed - Return |
22 ipm |
9.35 mm/s |
|
Open Height (min.) |
7" |
177.8 mm |
|
Open Height (max.) |
36-1/2" |
927 mm |
|
Stroke |
15-3/4" |
400 mm |
|
Lateral Ram Slide |
YES |
|
|
Width Between Uprights |
43-1/4" |
1,100 |
|
Width Between Table Channels |
15" |
381 mm |
|
Table Height |
Adjustable |
|
|
Footprint (LxW) |
68" x 37" |
1,727.2mm x 939.8mm |
|
Height Overall |
89" |
2,260 mm |
|
Weight (including V-blocks) |
2,873 lbs. |
1,303.1 kg |
