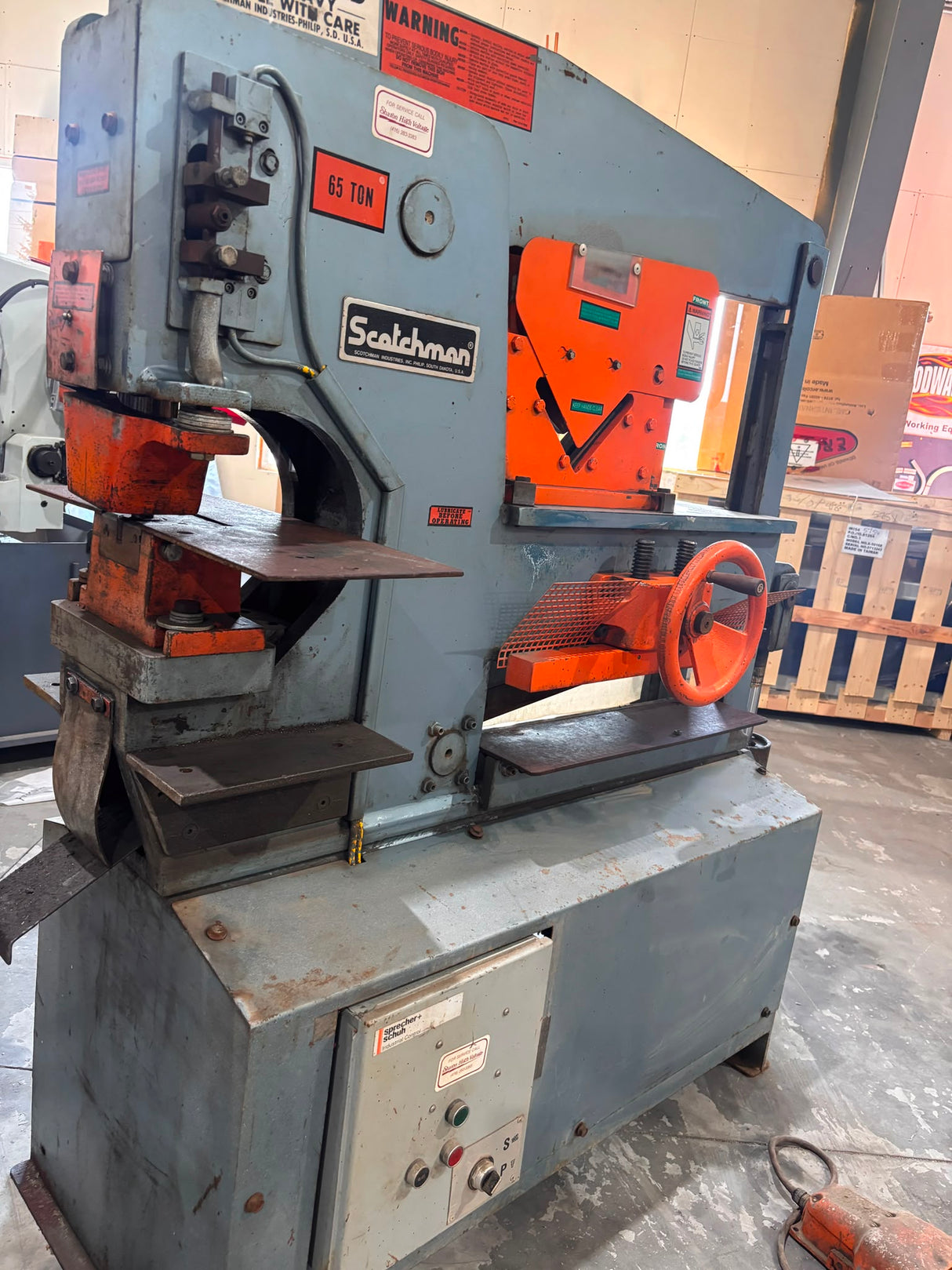

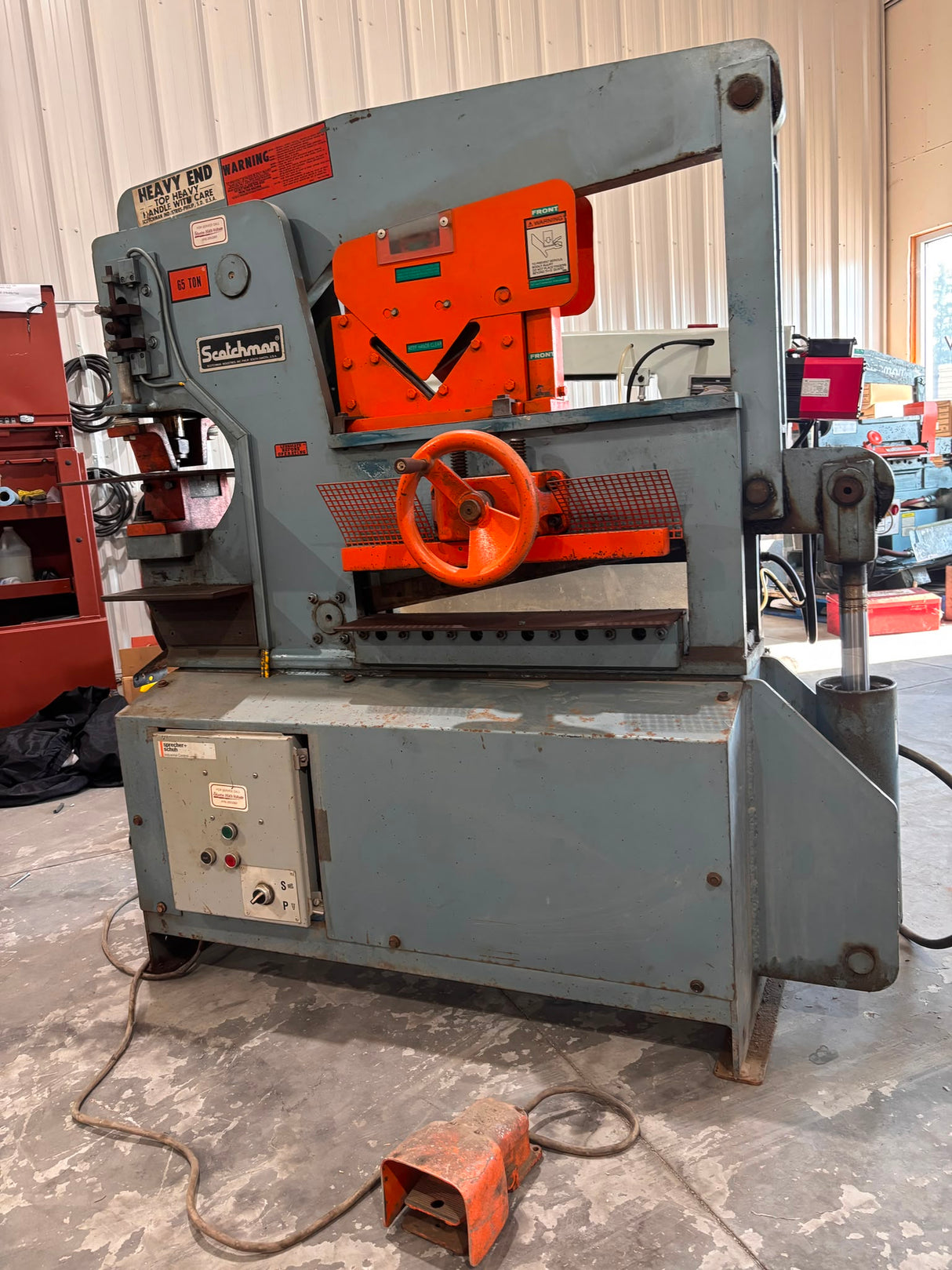

Scotchman 65 Ton Hydraulic Ironworker

This used Scotchman 65 Ton Hydraulic Ironworker is a heavy-duty, American-made fabrication machine designed for punching, shearing, and metal processing operations. Well-maintained and in good working condition, this machine has been in service for approximately 38 years and continues to operate smoothly, making it an excellent value for fabrication shops looking for reliable performance without the cost of a new machine.

The machine has been tested and is running perfectly. It features Scotchman's proven single-operator design with multiple workstations for efficient day-to-day fabrication tasks. Specifications are based on the standard Scotchman 6509-24M 65 Ton Ironworker.

Machine Details

Features

• 65 Ton hydraulic punching station
• Heavy-duty hydraulic construction
• Single operator design
• Multiple fabrication workstations
• Flat bar shear
• Angle shear
• Punch station
• Large work table
• Electric foot pedal operation
• Rugged industrial construction
• Ideal for fabrication, maintenance, and steel processing shops

Standard Specifications

Punching

• Capacity: 65 Ton
• Maximum Punch: 1-1/16" hole through 3/4" mild steel
• Throat Depth: 9"

Flat Bar Shear

• 24" blade length
• 1" × 6"
• 3/4" × 10"
• 1/2" × 12"
• 3/8" × 16"
• 1/4" × 24"

Angle Shear

• 6" × 6" × 3/8"
• 5" × 5" × 1/2"

Hydraulic System

• Two-stage hydraulic pump

Motor

• 5 HP, 3 Phase

Approximate Shipping Weight

• 2,984 lbs (1,353 kg)

Applications

Ideal for:

• Steel fabrication
• Structural steel processing
• Maintenance shops
• Machine shops
• Manufacturing facilities
• Agricultural equipment repair
• General metal fabrication

Condition

• ✅ Approximately 38 years old
• ✅ Used machine
• ✅ Good condition
• ✅ Running perfectly
• ✅ Ready for production
