20" Blade Automatic Upcut Saw w/ Drill Tap

Manufacturer: Scotchman

Model: GAA-500-90 DT20


Quote Request

 Thank you for your quote request, we will be in touch shortly.

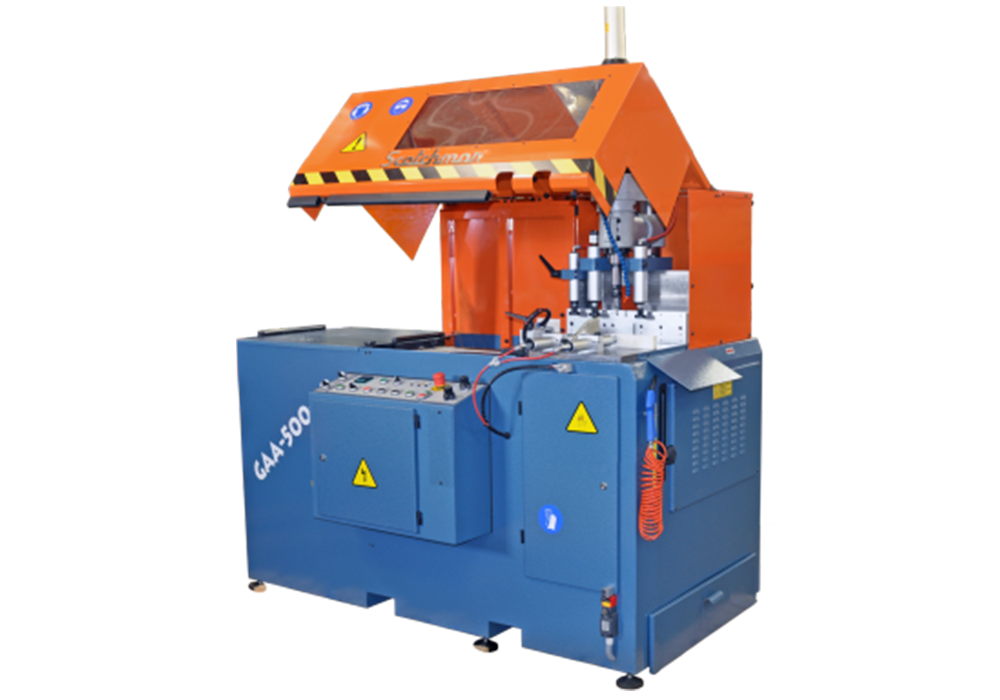

The Scotchman GAA-500-90 is a large capacity non-ferrous automatic upcut saw for cutting non-ferrous materials at 90° up to 6” square and round.  The saw uses a shuttle feed design with an adjustable vertical and horizontal clamp system to fit almost any profile.

Standard features include a 7.5 hp motor that delivers a cutting speed of 3,000 rpm, pneumatic mist coolant system, and a base designed with 2 chip extraction ports.  Cut lengths are set by moving the hard stop that is connected to a ball screw and hand crank.  The rotary dial allows for fast and easy length adjustments and part lengths are easily held to the length tolerance of +/- .006” per index.

Adding the Drill Tap option gives the saw the ability to drill and tap holes up to 20mm, with a single spindle drill, or by adding a multi-spindle drill, add multiple holes at one time.

Adding a CNC option, along with the DT option, provides the ability to position a hole or set of holes on a single axis - then cut to length.  This CNC saw has a 30-part storage capacity with 10 different programs available for each stored part.

All Scotchman Automatic Up Cut Saws are backed by a 2-year parts warranty.

Standard Features
  • Automatic Cycle
  • Semi-automatic or Automatic Operation
  • Automatic Feeder, 20 inches x 2 Strokes (20" + 20" Max.) Double Advance
  • Vertical Drill (20mm Maximum Capacity) with Ability to Drill or Drill and Tap
  • Powered Hood Lift
  • Emergency Stop
  • Adjustable Cutting & Feeding Speeds
  • Adjustable Length Selector from .200 to 20"Three Horizontal Pneumatic Clamps
  • Three Vertical Pneumatic Clamps
  • Three Horizontal Pneumatic Clamps
  • Miter Capability 90°
  • Pneumatic Lubrication System with Spray
  • One Gallon Coolant
  • Coolant Tank with Mist Lubrication
  • Mist Coolant Pump
  • One 20" (500 mm) Diameter Carbide Blade
  • One Blade Wrench
  • Air Hose
  • Base Designed as a Chip Collection with Two Chip Extraction Ports
  • Adjustable Leveling Pads
  • 230 or 460 volt/3-ph Electrics (must specify voltage)
  • Warranty: Two Year on Parts
  • Made in Spain
Specifications and Capacities

Round

Square

Rectangle

90° 6" (150 mm)

6" x 6" (150 x 150 mm)

10" x 3" (250 x 75 mm)

Non Ferrous Automatic Upcut Saw designed for Aluminum, PVC, Copper, etc.

Length Tolerance

+ or - 0.006" per index

Cutting Speed

3,000 RPM

Motor Rate

7.5 HP

Factory Wired

Specify: 230 3-ph 460 3-ph

Maximum Diameter Hole

20 mm

Maximum Diameter Blade

20" (500 mm)

Arbor Bore

1.97" (50 mm)

Height from Floor to Vise

38-5/8" (970 mm)

Width

77"

Depth

42"

Height

(Top of Hood) 39"

Shipping Weight

992 lbs. (450 kg)

Scotchman • Automatic Upcut Saw • Non-Ferrous • Drill Tap • GAA-500-90 DT20.
Scotchman

20" Blade Automatic Upcut Saw w/ Drill Tap

The Scotchman GAA-500-90 is a large capacity non-ferrous automatic upcut saw for cutting non-ferrous materials at 90° up to 6” square and round.  The saw uses a shuttle feed design with an adjustable vertical and horizontal clamp system to fit almost any profile.

Standard features include a 7.5 hp motor that delivers a cutting speed of 3,000 rpm, pneumatic mist coolant system, and a base designed with 2 chip extraction ports.  Cut lengths are set by moving the hard stop that is connected to a ball screw and hand crank.  The rotary dial allows for fast and easy length adjustments and part lengths are easily held to the length tolerance of +/- .006” per index.

Adding the Drill Tap option gives the saw the ability to drill and tap holes up to 20mm, with a single spindle drill, or by adding a multi-spindle drill, add multiple holes at one time.

Adding a CNC option, along with the DT option, provides the ability to position a hole or set of holes on a single axis - then cut to length.  This CNC saw has a 30-part storage capacity with 10 different programs available for each stored part.

All Scotchman Automatic Up Cut Saws are backed by a 2-year parts warranty.

Standard Features
Specifications and Capacities

Round

Square

Rectangle

90° 6" (150 mm)

6" x 6" (150 x 150 mm)

10" x 3" (250 x 75 mm)

Non Ferrous Automatic Upcut Saw designed for Aluminum, PVC, Copper, etc.

Length Tolerance

+ or - 0.006" per index

Cutting Speed

3,000 RPM

Motor Rate

7.5 HP

Factory Wired

Specify: 230 3-ph 460 3-ph

Maximum Diameter Hole

20 mm

Maximum Diameter Blade

20" (500 mm)

Arbor Bore

1.97" (50 mm)

Height from Floor to Vise

38-5/8" (970 mm)

Width

77"

Depth

42"

Height

(Top of Hood) 39"

Shipping Weight

992 lbs. (450 kg)
