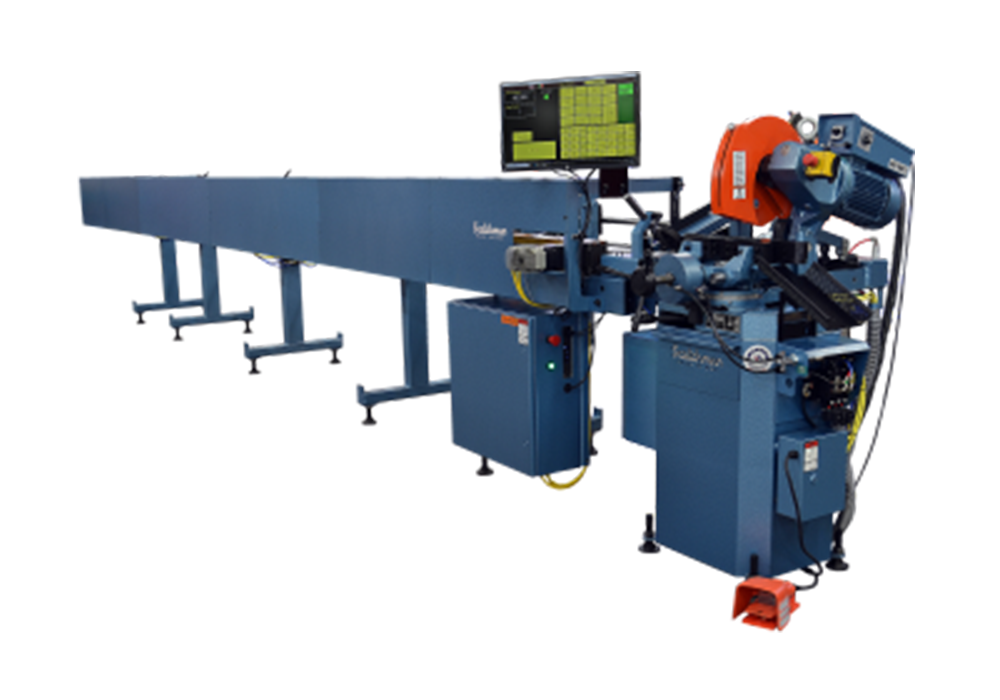

The Scotchman CPO 350 AutoLoader couples the semi-automatic CPO 350 NFPKPD saw with the auto loading system, creating a fully automatic sawing system which can cut multiple lengths of tube (max 3” dia.). This saw comes standard with a Windows based touch screen control, 5hp 3000 rpm speed motor, 350mm diameter blade, and the ability to run unlimited cut lists from 1/2” to 23’ lengths.
It enables the user to run a complete cut list or a run of cut lists at 90° on an automatic cycle or switch to operate the saw in a semi-automatic cycle to miter cut. Quick set-up, automatic part length change, and fast reloading of material adds efficiency; plus, accurate cut lengths and is always within +/- 0.002 per dia. inch in squareness.
The system is backed by a 2 year parts warranty on the CPO saw, and a 1 year parts warranty on the AutoLoader.
Standard Features
- Fully Automatic Cycle OR Semi-Automatic Operation
- Pneumatic Power Down Feed and Electric Controls
- Adjustable Stroke Control
- Adjustable Feed Rate (Blade & Material)
- Air Operated Material Vise Clamp
- Clamping on Both Sides of the Blade
- Fixed Rear Vise
- Double Reduction, Hardened Bronze Gears
- Chip Drawer
- Emergency Stop Button
- Mist Coolant System
- Material Feed Direction can be Either: R to L OR L to R (must specify)
- Miter in One Direction Only (manually)
- Semi-auto Operation is Standard for Cutting Miters
- Automatic Loading & Trim Cut of Each New Bar
- Piece Counter
- Touch Screen Controls Actuate the Complete Cycle
- Windows Base Software (includes profile screen)
- Two-year Warranty on Parts (CPO Saw)
- One-year Warranty on Parts (AutoLoader)
- Made in USA
Specifications and Capacities
Length Tolerance |
±0.010 repeatability |
|
Squareness Tolerance |
±0.002 per diameter inch |
|
Round Solid Square Solid Round Tubing Square Tubing |
90° 1-3/4" 1-1/2" 3" 3" |
45° 1-3/4" 1-1/2" 3" 2-5/8" |
Minimum Cut Length |
1/2" |
|
Maximum Cut Length |
23' |
|
Motor HP Ferrous Models |
5 HP |
|
Motor HP Non-Ferrous Models |
5 HP |
|
Power Supply |
230/460-3ph (must specify voltage) |
|
Air Pressure |
90 lbs. minimum |
|
Maximum Saw Blade |
350mm |
|
Arbor Bore Size |
40mm |
|
Pin Spacing |
4/12/64 |
|
12' Supply Table w/ Saw Dimensions |
(L)220-1/8” (W)48” (H)57” |
Shipping Weight: 1874 lbs.(850kg) |
24’ Supply Table w/Saw Dimensions |
(L)362” (W)48” (H)57” |
Shipping Weight: 2784 lbs.(1263kg) |
