10.75" Blade Semi-Automatic Cold Saw

Manufacturer: Scotchman

Model: CPO 275 PKPD


Quote Request

 Thank you for your quote request, we will be in touch shortly.

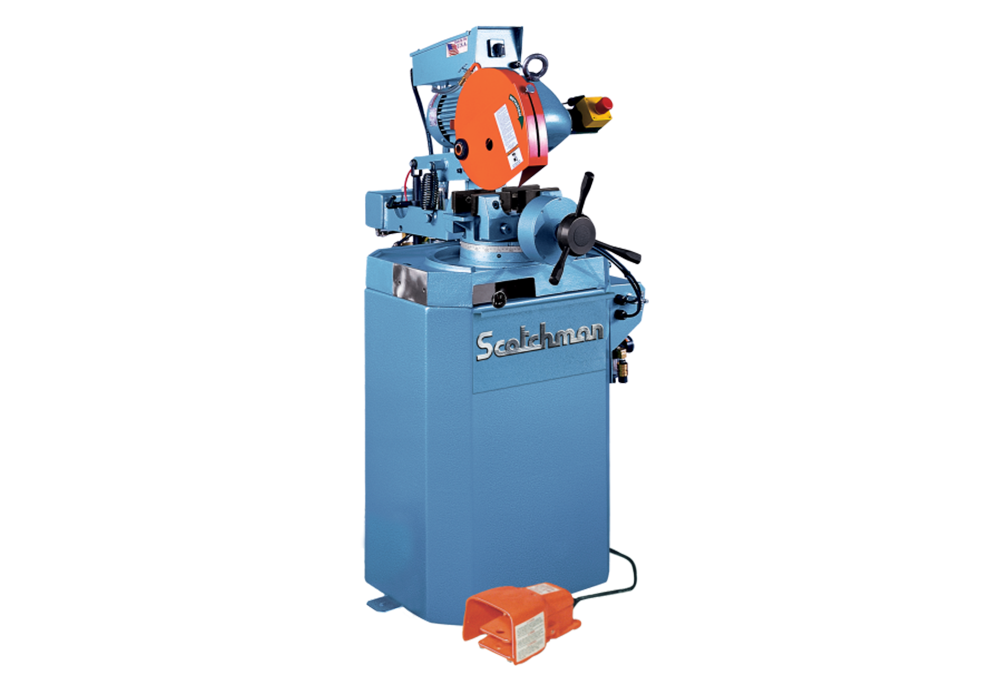

Scotchman's CPO 275 PKPD is a semi-automatic circular cold saw that has a pneumatic power down feed with electric controls and an emergency stop button. It is equipped with a a double self-centering, air-operated material vise to ensure safe, accurate, fast and efficient cuts. The CPO 275's 10 3/4" high-speed blade can Miter 90 degrees or 45 degrees to the left or right. The built-in Miter Locking Device provides a quick, accurate measurement for every cut.

All Scotchman cold saws provide a burr-free, spark-free cut and is accurate within .002/inch.

Featuring two cutting speeds (LT 30/60 rpm or HT 60/120 rpm), the CPO 275 PKPD also comes with a seven-gallon coolant tank and one gallon of concentrated coolant.

Pair it with a Scotchman Automation system to automate the measuring process; simply enter the desired length on the touchscreen and the stop will automatically move to the correct length.

The CPO 275 PKPD is backed by a 3 year parts warranty.

Standard Features
  • Semi-Automatic Cycle
  • Air Operated Double Self-Centering Vise Assures Burr-Free Cuts
  • Pneumatic Power Down Feed with Electric Controls
  • Emergency Stop Button
  • Miter Capabilities 45 degrees Left and 45 degrees Right
  • Operator Controlled Trigger Switch
  • Capable of Slotting
  • Two Cutting Speeds (LT 30/60 rpm OR HT 60/120 rpm)
  • Hardened and Ground Worm and Wheel Gear Box
  • Worm Wheel of Top Quality Bronze
  • Chip Drawer
  • 7 Gallon Coolant Tank with Pump
  • One 10" Diameter (250 mm) HSS Blade
  • One Blade Wrench
  • One Gallon Concentrated Coolant
  • 230 or 460 Volt/3 Phase Electrics (must specify voltage)
  • Warranty: Three Years on Parts
  • Made in USA
    Specifications and Capacities

    Cutting Speeds

    Must Specify when Ordering

    LT(Low Turn) designed for solid mild steel, solid stainless steel & thick wall pipe

    LT (Low Turn) 30 rpm / 60 rpm

    Motor rate: 2 hp

    HT(High Turn) designed for thin wall tube .060 wall thickness or thinner and non-ferrous material

    HT (High Turn) 60 rpm / 120 rpm

    Motor rate: 1.5 hp

    SS(Single Speed) designed for 220v 1ph applications

    SS (Single Speed) 60 rpm

    Motor rate: 2 hp

    TUBING

    Round

    Square

    Rectangle

    SOLID

    Round

    Square

    90 Deg

    3-3/8" (86 mm)

    3" x 3" (76 x 76 mm)

    3" x 2-3/8" (76 x 60 mm)

    90 Deg

    1-1/2"(38 mm)

    1-1/2" x 1-1/2" (38 x 38 mm)

    45 Deg.

    2" (51 mm)

    2" x 2" (51 x 51 mm)

    3" x 2" (76 x 51 mm)

    45 Deg.

    1" (25 mm)

    1" x 1" (25 x 25 mm)

    Factory Wired

    Specify 208 3 ph 230 3 ph 460 3 ph 575 volt 3 ph 60 hz 220 1 ph (SS Model Only)

    Maximum Diameter Blade

    10-3/4"

    275 mm

    Arbor Bore

    1-1/4"

    32 mm

    Pin Spacing

    2/8/45

    Width

    21-7/8"

    Depth

    43-1/2"

    Height not including handle

    53-1/4"

    Height from floor to vise

    36-1/8"

    Shipping Weight

    670 lbs.

    (303 kg)

    Scotchman • Semi-Automatic Cold Saw • CPO 275 PKPD.
