14" Blade Semi-Automatic Cold Saw

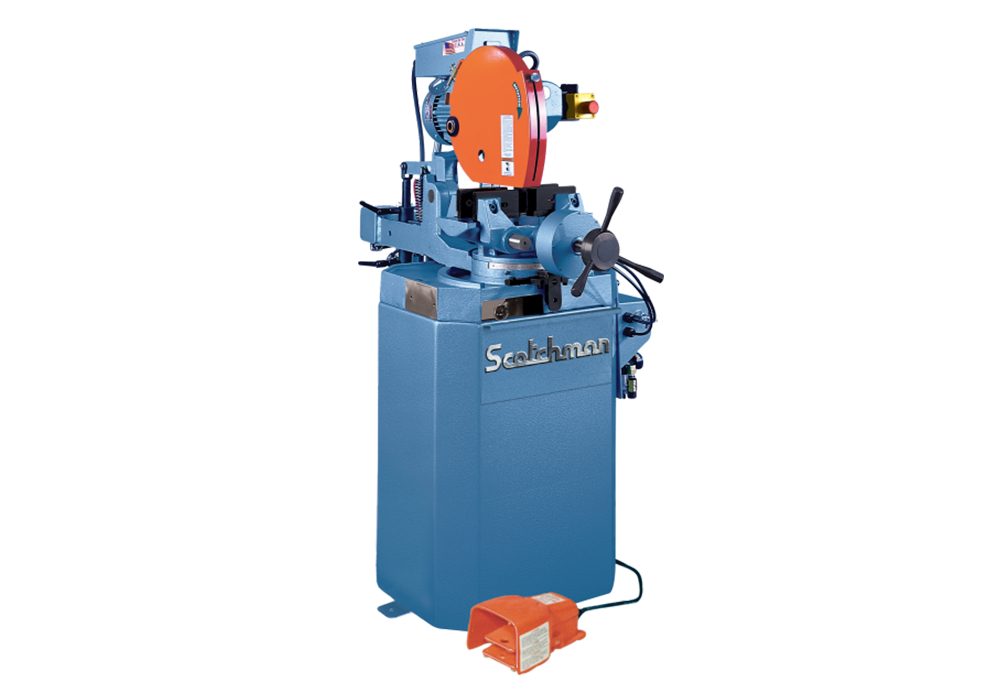

The Scotchman CPO 350 PKPD, semi-automatic circular cold saw has a pneumatic power down feed with electric valves and has mitering capabilities of up to 135 degrees; 45 degrees to the right and 90 degrees to the left. This 350 mm precision features double clamping and self-centering vise for maximum material hold.
Featuring a double reduction gearbox and a two-speed motor (LT 22/44 rpm Or HT 44/88 rpm), which utilizes up to a 350mm diameter blade giving it a 4-7/8" OD round capacity.
This semi-automatic circular cold saw features electric controls, electric valves, and an electric remote foot pedal.
The CPO 350 is backed by a 3 year parts warranty.
Standard Features
- Semi-Automatic Cycle
- Air Operated Power Double Self-Centering Vise Assures Burr-Free Cuts=
- Pneumatic Power Down Feed with Electric Controls
- Emergency Stop Button
- Miter Capabilities 45 degrees Left and 45 degrees Right
- Miter Locking Devise: Quick, Accurate Setting-Stops at 45 degrees Left, Straight 90 Degrees, and 45 Degrees Right
- Capable of Slotting
- Two Cutting Speeds (LT 22/44 rpm Or HT 44/88 rpm)
- Double Reduction, Hardened and Ground Worm and Wheel Gear Box
- Worm Wheel of Top Quality Bronze
- Chip Drawer7 Gallon Coolant Tank with Pump
- One 12-1/2" Diameter (315 mm) HSS Blade
- One Blade Wrench
- One Gallon Concentrated Coolant
- 230 or 460 Volt /3 Phase Electrics (must specify voltage)
- Warranty: Three Years on Parts
- Made in USA
Specifications and Capacities
|
Cutting Speeds |
Must Specify when Ordering |
|
|
LT(Low Turn) designed for solid mild steel, solid stainless steel & thick wall pipe |
LT (Low Turn) 22 rpm / 44 rpm |
Motor rate: 3 hp |
|
HT(High Turn) designed for thin wall tube .060 wall thickness or thinner and non-ferrous material |
HT (HighTurn) 44 rpm / 88 rpm |
Motor rate: 2.5 hp |
|
VS (Variable Speed) ~ wired 230/460, 3-ph |
VS (Variable Speed) 11 / 177 rpm |
Motor Rate: 5 hp |
|
VS (Variable Speed) ~ wired 220, 1-ph |
VS (Variable Speed) 11 / 177 rpm |
Motor Rate: 5 ph |
|
SS (Single Speed) designed for 220v 1ph applications |
SS (Single Speed) 44 rpm |
Motor Rate: 3 hp |
|
TUBING Round Square Rectangle SOLID Round Square |
90 Degree 4-1/2" (114 mm) 4-1/4" x 4-1/4" (108 x 108 mm) 5-1/2" x 4" (140 x 102 mm) 90 Degree 2" (51 mm)
2" x 2" (51 x 51 mm) |
45 Deg 4" (102 mm) 4" x 4" (102 x 102 mm) 4" x 4" (102 x 102 mm)
45 Deg 1-3/4" (44 mm) 1-3/4" x 1-3/4" (44 x 44 mm) |
|
Factory Wired |
Specify 208 3 ph 230 3 ph 460 3 ph 575 volt 3 ph 60 hz 220 volt 1 ph 60 hz (SS model only) |
|
|
Maximum Diameter Blade |
350 mm |
|
|
Arbor Bore |
1-9/16" |
40 mm |
|
Pin Spacing |
4/12/64 |
|
|
Width |
21-7/8" |
|
|
Depth |
43-1/2" |
|
|
Height not including handle |
56-1/4" |
|
|
Height from floor to vise |
37-7/16" |
|
|
Shipping Weight |
760 lbs. |
(344 kg) |
