Scotchman • Cold Saw • Non-Ferrous • CPO 350 NFPK

Manufacturer:

Model:

Description

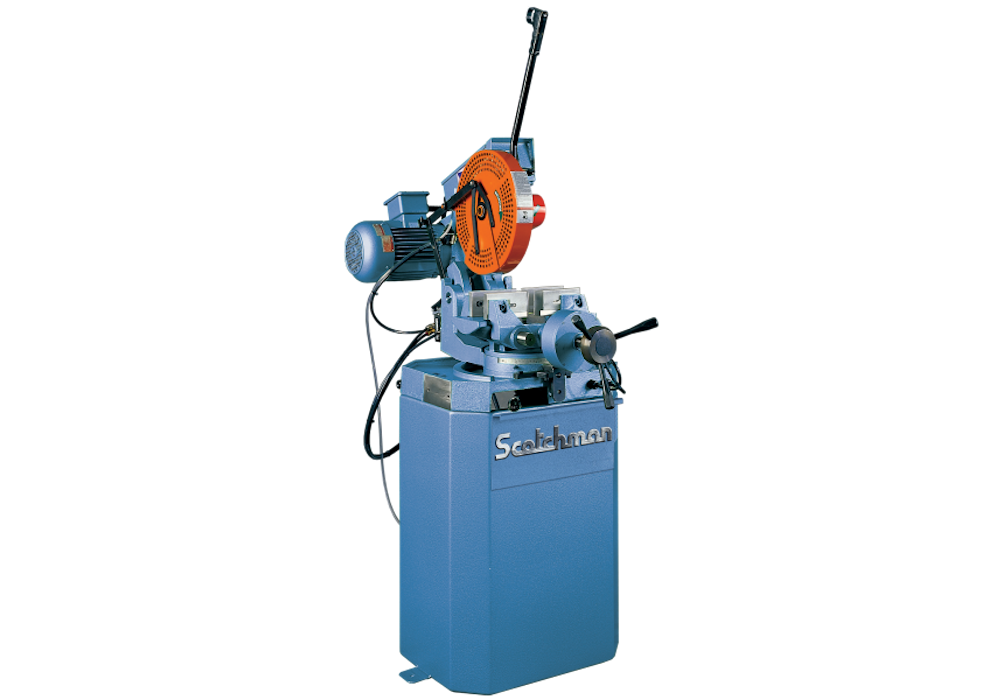

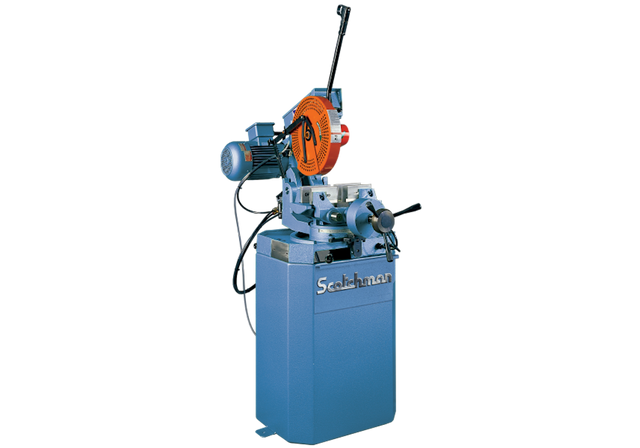

The Scotchman CPO 350 Circular Cold Saw features air operated, double clamping and self-centering vise for maximum hold and provides burr-free, high quality, volume parts. It has 180 degree mitering ability and a miter-locking device which automatically stops at 45 degrees left, 90 degrees straight, and 45 degrees right, giving it the ability to slot and notch.

Featuring a 350mm diameter blade giving it a 4-7/8" OD round capacity.

The CPO 350 is backed by a 3 year parts warranty.

Standard Features
  • Power Double Self-Centering Vise Assures Burr-Free Cuts
  • Air-operated Clamp for Material Vise
  • Operator Controlled Trigger Switch
  • Miter Capabilities 45 Degrees Left and 45 Degrees Right
  • Miter Locking Device: Quick, Accurate Settings-Stops at 45 Degrees Left, Straight 90 Degrees, and 45 Degrees Right
  • Capable of Slotting
  • 5 HP, 3,000 RPM
  • Positive Cog Belt Driven
  • Chip Drawer
  • One Gallon Coolant Tank with Mist Lubrication System
  • One 350 mm Diameter Carbide-Tipped Blade
  • One Blade Wrench
  • One Gallon Coolant
  • 230 or 460 Volt/3 Phase Electrics (must specify voltage)
  • Warranty: Three Years on Parts
  • Made in USA
Specifications and Capacities

Cutting Speed

3,000 rpm

Motor Rate

5.0 HP

TUBING
Round
Square

Rectangle


SOLID
Round
Square

90 Degree
4-1/2" (114 mm)
4-1/4" x 4-1/4" (108 x 108 mm)
5-1/2" x 4" (140 x 102 mm)

90 Degree
3" (76 mm)
3" x 3" (76 x 76 mm)

45 Degree
4-1/4" (108 mm)
4" x 4" (102 x 102 mm)

4" x 4" (102 x 102 mm)


45 Degree
2-1/2" (64 mm)
2-1/2" x 2-1/2" (64 x 64 mm)

Factory Wired

Specify
208 3 ph
230 3 ph
460 3 ph
575 3 ph 60 hz

Maximum Diameter Blade

350 mm

Arbor Bore

1-9/16"

40 mm

Pin Spacing

4/12/64

Width

21-7/8"

Depth

43-1/2"

Height not including handle

56-1/4"

Height from floor to vise

37-7/16"

Shipping Weight

650 lbs.

(294 kg)
Scotchman

Scotchman • Cold Saw • Non-Ferrous • CPO 350 NFPK

Description

The Scotchman CPO 350 Circular Cold Saw features air operated, double clamping and self-centering vise for maximum hold and provides burr-free, high quality, volume parts. It has 180 degree mitering ability and a miter-locking device which automatically stops at 45 degrees left, 90 degrees straight, and 45 degrees right, giving it the ability to slot and notch.

Featuring a 350mm diameter blade giving it a 4-7/8" OD round capacity.

The CPO 350 is backed by a 3 year parts warranty.

Standard Features
Specifications and Capacities

Cutting Speed

3,000 rpm

Motor Rate

5.0 HP

TUBING
Round
Square

Rectangle


SOLID
Round
Square

90 Degree
4-1/2" (114 mm)
4-1/4" x 4-1/4" (108 x 108 mm)
5-1/2" x 4" (140 x 102 mm)

90 Degree
3" (76 mm)
3" x 3" (76 x 76 mm)

45 Degree
4-1/4" (108 mm)
4" x 4" (102 x 102 mm)

4" x 4" (102 x 102 mm)


45 Degree
2-1/2" (64 mm)
2-1/2" x 2-1/2" (64 x 64 mm)

Factory Wired

Specify
208 3 ph
230 3 ph
460 3 ph
575 3 ph 60 hz

Maximum Diameter Blade

350 mm

Arbor Bore

1-9/16"

40 mm

Pin Spacing

4/12/64

Width

21-7/8"

Depth

43-1/2"

Height not including handle

56-1/4"

Height from floor to vise

37-7/16"

Shipping Weight

650 lbs.

(294 kg)
