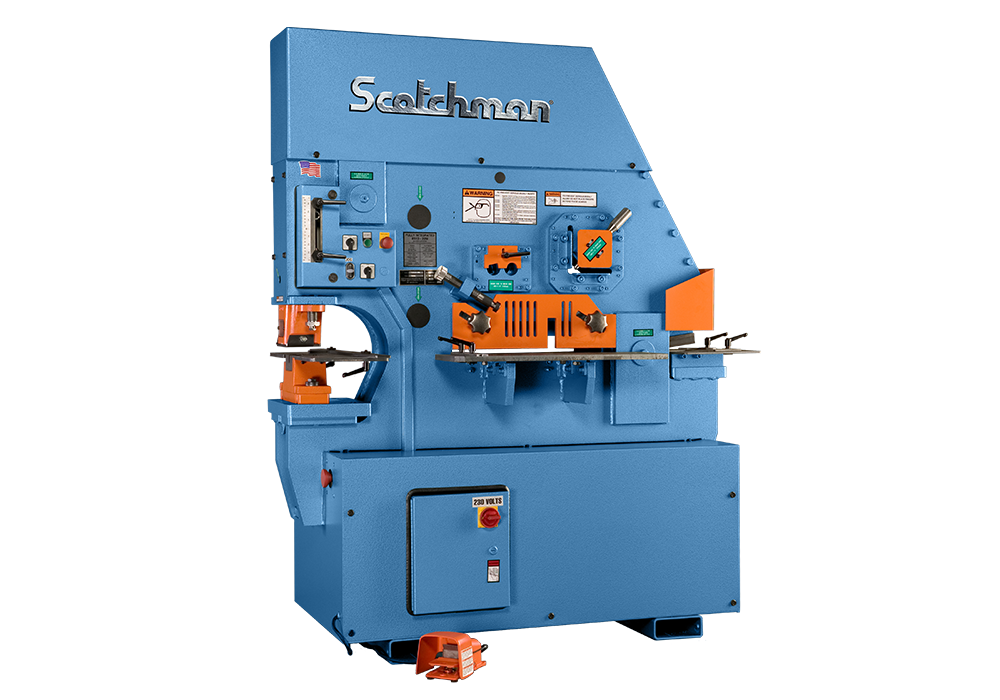

85 Ton Fully Integrated Ironworker

This machine has five built-in work stations that include: 85 tons of punching capacity (1-1/16” in 1” 65,000 tensile mild steel), 20” wide flat bar shear (capable of shearing 1” x 12” and 3/4” x 20”), 6” x 6” x 1/2” crop off angle shear, round and square, solid rod shear and a 3” x 5” x 1/2” rectangle notcher.

All Scotchman Ironworkers come with a 3-year parts warranty.

Standard Features

• Single Operator, 5 Stations
• 85 Ton Punch Station (1-1/16" in 1")
• Keyed Punch Ram for Safety
• 10" Throat Depth
• Punch Gauging Table with Fence and Scale
• Die Holder Complete with 2" Die Insert
• Punch Nut with Wrench & Stripper
• Adjustable Swing-Away Stripper
• One Round Punch & Die: Max. Dia. 1-1/4"
• Punch Jog Control
• Adjustable Electric Stroke Control with Scale
• Electric Remote Foot Pedal
• Two 2-Stage Hydraulic Pumps
• Two Valves
• 6" x 6" x 1/2" Slug-less Angle Shear
• 20" Flat Bar Shear (1" x 12", 3/4" x 20")
• Shear Table with Miter Fence
• Rod Shear Capacity 1-1/2" Round, 1-1/4" Square
• Slug Receptacles
• Rectangle Notcher Capacity 3" x 5" x 1/2"
• Notcher Table with Scale and Guide
• Two-Stage Hydraulic Pump
• Electrical Box Supplied
• Emergency Palm Button and Lock-out Tag-out Accommodations
• 230/460 Volt/3 Phase Electrics (must specify voltage)
• Forklift Accommodations
• Warranty: Three Years on Parts
• Made in USA
