0.75 - 4" Tube Grinder/Notcher

Manufacturer: Scotchman

Model: AL150


Quote Request

 Thank you for your quote request, we will be in touch shortly.

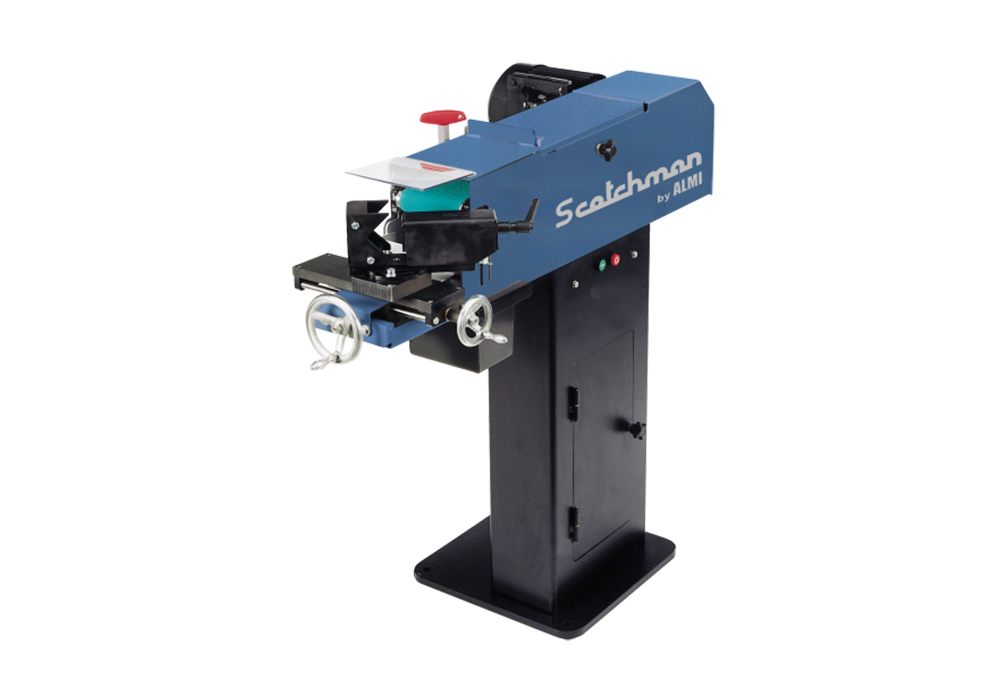

The Scotchman AL150 produces gap-free fits ready for welding, with minimal vibrations. This grinder/notcher is capable of notching 90° to 20° in tube/pipe from 3/4" to 4" diameter in seconds. It is equipped with an easily accessible, top-mounted deburring table to increase productivity.

Backed by a 3 year warranty on parts.

Standard Features
  • Produces Gap-free Fits Ready for Welding
  • Smooth Operation with Minimal Vibration
  • Operated with Two Handwheels or a Hand Lever
  • Notches via Adjustments Straight=90° to 20° in Tube or Pipe from 3/4" to 4" Diameter in Seconds
  • Two Axis Precision Cross
  • feed Table with Both Handwheels and Hand Lever Feed Handle
  • Heavy Duty Frame and Base Construction
  • Mandrel Centerline Adjustment
  • One Vise Holds All Pipe and Tube Sizes
  • Top-mounted Deburring Surface
  • Easy Setup with Vise Graduated in Degrees
  • 17 Mandrels available to Ensure Correct Gap-free Fits
  • Supplied with 2 Belts and Two Pipe Mandrels (1-1/4" & 1-1/2")
  • Tool-free Belt and Mandrel Change over
  • Belt Tensioning System Simplifies Tensioning the Grinding Belt
  • Grinding Belt can be Tensioned Quickly using the Hexagonal Spanner Supplied with the Machine
  • Grinding Rollers can be Changed in Seconds
  • Warranty: Three Years on Parts
  • Manufactured in the Netherlands
      Specifications and Capacities

      Grinding Capacity

      1/2" to 4" O.D.

      Angle Range

      Straight=90�° to 20�°

      Belt

      6" x 78-3/4"

      Belt Speed

      98.4 Feet Per Second

      Speed

      3420 RPM

      Motor

      5-1/2 hp 3ph 230/460v

      Motor (Optional)

      5-1/2 hp 1 ph 230v

      Dimensions

      59" x 47" x 26 1/2"

      Shipping Weight

      600 lbs
