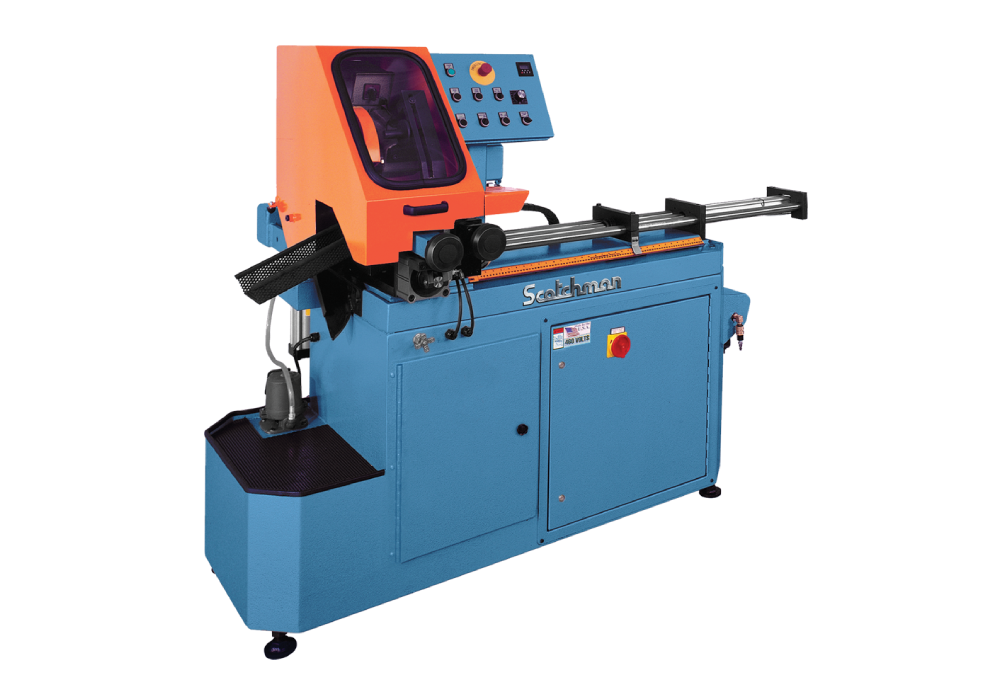

12.5" Automatic Hitch Feed Cold Saw
The Scotchman CPO 315 Hitch Feed Automatic Cold Saw is ideal for uninterrupted, high volume and short length applications that require very accurate and clean cuts. The CPO 315 HFA has a length tolerance of +or- .006" on up to 3-1/2" diameter tube or pipe, up to 1-3/4" solid material and squareness tolerance of +or- .002" per diameter inch.
The CPO 315 HFA CNC is designed to enhance performance and features a large 10" touch screen control to easily program your quantity of pieces cut to a specific length or program up to four separate lengths and part quantities to be cut in sequence.
This machine uses a 12-1/2" blade and has the ability to cut pieces as short as 1/8" and as long as 90". This Hitch Feed saw uses a 30" index that can be run a maximum of three times. Optional form jaws can be used to feed multiple pieces of smaller diameter material for hourly piece counts in the hundreds, significantly reducing labor costs.
The CPO 315 HFA has variable speed feature, which allows operators the ability to join the feeds and speeds to the job for faster cutting times and longer blade life.
The CPO 315 HFA is backed by a 2 year parts warranty.
Standard Features
- Fully Automatic Cycle
- Optional CNC Interface
- Push Button Controls Actuate the Complete Cycle
- 5 H.P. Variable RPM Speed Control
- Interlocking Safety Hood
- Clamping Both Sides of Blade - Highest Quality, Burr-Free Cuts
- Blade Guides for Accurate Tolerances
- Mist Coolant
- Adjustable Stroke Control on the Saw Head
- Adjustable Down Feed Control on the Saw Head for Feed Rate
- Piece Counter
- Length Scale in Both Inches and Metric
- Quick and Easy Fine Adjustment of Length Setting
- One Saw Blade
- One Gallon Concentrated Coolant (Ferrous Model)
- Warranty: Two Years on Parts
- Made in USA
Specifications and Capacities
|
Cutting Speeds Based on Mild Steel |
CPO 315 HFA / CNC |
Variable Speed 11 to 177 rpm 3,000 rpm |
|
Cutting Capacities Based on Mild Steel |
Round Tube Square Tube Round Solid |
Up to 3-1/2" ( ≤ 89 mm) Up to 3-1/8" x 3-1/8" ( ≤ 79 mm) Up to 1-3/4" ( ≤ 44.5 mm) |
|
Length Tolerance |
+ or - 0.006" per index |
|
|
Squareness Tolerance |
+ or - 0.002" per diameter inch |
|
|
Minimum Cut Length |
1/8" |
|
|
Maximum Cut Length |
Single Index 30" Double Index 60" Triple Index 90" |
|
|
Motor HP Ferrous Models |
5 hp |
|
|
Motor HP Non-Ferrous Models |
5 hp |
|
|
Power Supply |
208/230/460 3 Ph (must specify voltage) |
|
|
Air Pressure |
90 lbs. Minimum |
|
|
Maximum Saw Blade Diameter |
12-1/2" |
315 mm |
|
Arbor Bore Size |
40 mm |
|
|
Pin Spacing |
4/12/64 |
|
|
Dimensions |
L-100" x W-44" x H-64" |
|
|
Shipping Weight |
1,770 lbs. |
(802 kg) |
