66 Ton H-Frame Press

Manufacturer: Scotchman

Model: PressPro 66


Quote Request

 Thank you for your quote request, we will be in touch shortly.

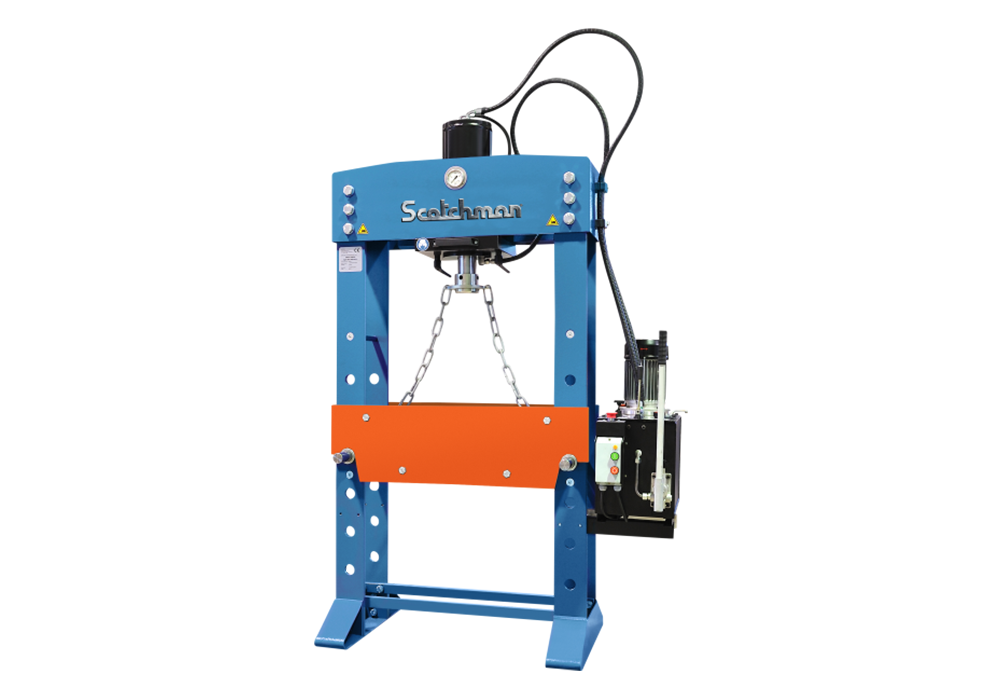

The Scotchman PressPro 66 is a motorized 66 ton workshop press with a movable cylinder (left-right) and an in-height adjustable working table. Equipped with pressure regulation, 2 speeds, joystick and a hand pump for precision pressing.

This hydraulic press is industrial-grade and ideal for assembly, straightening, fabrication, quality control, maintenance, product testing, bending, & forming.

The open side frame design allows for material to pass through and provides flexibility to work on the longest work pieces. The adjustable H-frame bed height offers increased versatility with its ability to raise and lower the table for the best working distance possible.

The PressPro is backed by a 3-year warranty.

Standard Features
  • Heavy Duty All-Steel Construction
  • Industrial Grade Hydraulic System
  • Ram Moves Laterally for Added Versatility
  • 3 Ram Speeds
  • 15" of Vertical Ram Travel
  • Joystick Operation with Hand Pump Option
  • Removable Ram Cap to Accept a Wide Variety of Tooling
  • Open-side frame design allows for material to pass through
  • Adjustable H-Frame Table Height Offers Increased Versatility
  • Hydraulic-assist adjustable work table for maximum operator safety
  • Set of V-blocks to simplify your pressing jobs
  • Pressure gauge to monitor force
  • Three-year warranty
  • Made in the Netherlands
Specifications and Capacities

Capacity

66 Ton

Motor Rate

2 hp

Motor Options must specify

230/460v, 3ph

RPM

3,000

Ram Speed - Approach

21 ipm

Ram Speed - Press

5 ipm

Ram Speed - Return

25 ipm

Open Height (min.)

7-3/4"

Open Height (max.)

37-1/4"

Stroke

15"

Lateral Ram Slide

YES

Width Between Uprights

29-1/2"

Width Between Table Channels

10-1/4"

Table Height

Adjustable

Footprint (LxW)

51-3/4" x 31-3/4"

Height Overall

83-1/2"

Weight (including V-blocks)

1,266 lbs.
