150 Ton Dual Operator Ironworker
All Scotchman’s Dual Operator Ironworkers allow two operators to truly perform two different fabricating functions simultaneously, not limited like others to the punch station and another function. They are designed with a hydraulic system that has two pumps to ensure full hydraulic pressure and full speed when two functions are running at full capacity.

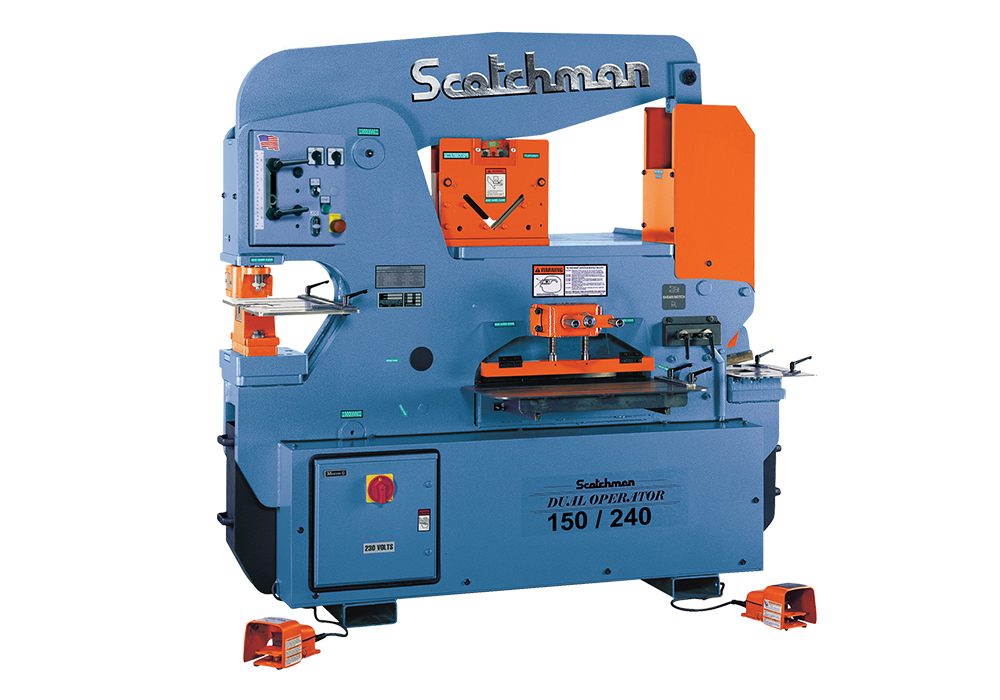

The Scotchman DO 150/240/24M dual operator ironworker is American made and has four standard built-in features that include a 150-ton punch (1-7/8” in 1"), a 6” x 6” x 1/2" angle shear, a 24” plate shear (1” x 14”, 3/4” x 24”) and a rectangle notcher.
All Scotchman Ironworkers come with a 3-year parts warranty.
Standard Features
- Dual Operator, 5 Stations
- 150 Ton Punch Station (1-7/8" in 1")
- Keyed Punch Ram for Safety
- 12" Throat Depth
- Punch Gauging Table with Fence and Scale
- Die Holder Complete with 2" Die Insert
- Punch Nut with Wrench & Stripper
- Adjustable Swing-Away Stripper
- One Round Punch & Die: Max. Dia. 1-1/4"
- Punch Jog Control
- Two Adjustable Electric Stroke Controls with Scale
- Two Electric Remote Foot Pedals
- Two 2-Stage Hydraulic Pumps
- Two Valves
- Angle Shear Capacity 6" x 6" x 1/2" at 90°
- Rectangle Notcher 3" x 5" x 3/8" 3" x 4" x 1/2"
- Notcher Table with Guides
- 240 Ton, 24" Flat Bar Shear with Sabre Blade (1" x 14", 3/4" x 24")
- Shear Table with Miter Fence
- Tool Table Work Area
- Slug Receptacles
- Electrical Box Supplied
- Emergency Palm Button and Lock-out Tag-out Accommodations
- 230/460 Volt/3 Phase Electrics (must specify voltage)
- Forklift Accommodations
- Warranty: Three Years on Parts
- Made in USA
Specifications and Capacities
|
Rated on: |
65,000 PSI Tensile |
|
Punching Capacity |
150 ton 1-7/8" in 1" 2-1/2" in 3/4" |
|
Special Tooling |
4" Max. Dia. |
|
Throat Depth |
12" |
|
Flat Bar Shear (Sabre Blade - Std) |
240 ton, 24" Length 1" x 14" 3/4" x 24" |
|
Angle Shear 90° |
6" x 6" x 1/2" |
|
Angle Shear 45° with Bar Shear |
3" x 3" x 3/8" 4" x 4" x 1/2" |
|
Brake 12" |
90 ton |
|
Brake 24" |
70 ton |
|
Open End Brake |
Max. 1/4" x 5" Flat or Angle Iron |
|
Pipe Notcher Housing Schedule 40 I.D. |
3/4" 1" 1-1/4" 1-1/2" 2" |
|
90° V-Notcher |
6" x 6" x 5/16" |
|
Rectangle Notcher V-Notch Notching in Leg of Channel |
3" x 5-3/4" x 1/2" 3" x 3" x 1/2" 6" to 10" |
|
Channel Shear |
2" to 6" Adj. |
|
Unistrut Shear |
Samples Required |
|
Rod Shear Round Rod (Max.) Square Rod (Max.) |
1/4" to 1-1/4", 9 Cav. 1/4" to 1", 1 Cav. |
|
Square Tube Shear |
1/2" to 2" 12 ga. |
|
Picket Tool |
1/2" 3/4" 1" 16 ga. |
|
Offset Die Holder |
Max. 40 ton |
|
Strokes Per Minute in Light Material |
1/4" Stroke [Punch Station] |
|
Strokes Per Minute in Heavy Material |
3/4" Stroke [Punch Station] |
|
Hydraulics |
3,500/3,500 psi |
|
Motors |
10 hp 3 ph 230/460 208/380/575 |
|
Motors Optional |
10 hp 1 ph 230v |
|
Dimensions |
W-34" L-77.25" H-74.25" |
|
Shipping Weight |
6,404 lbs |
