95 Ton Dual Operator Ironworker
All Scotchman’s Dual Operator Ironworkers allow two operators to truly perform two different fabricating functions simultaneously, not limited like others to the punch station and another function. They are designed with a hydraulic system that has two pumps to ensure full hydraulic pressure and full speed when two functions are running at full capacity.

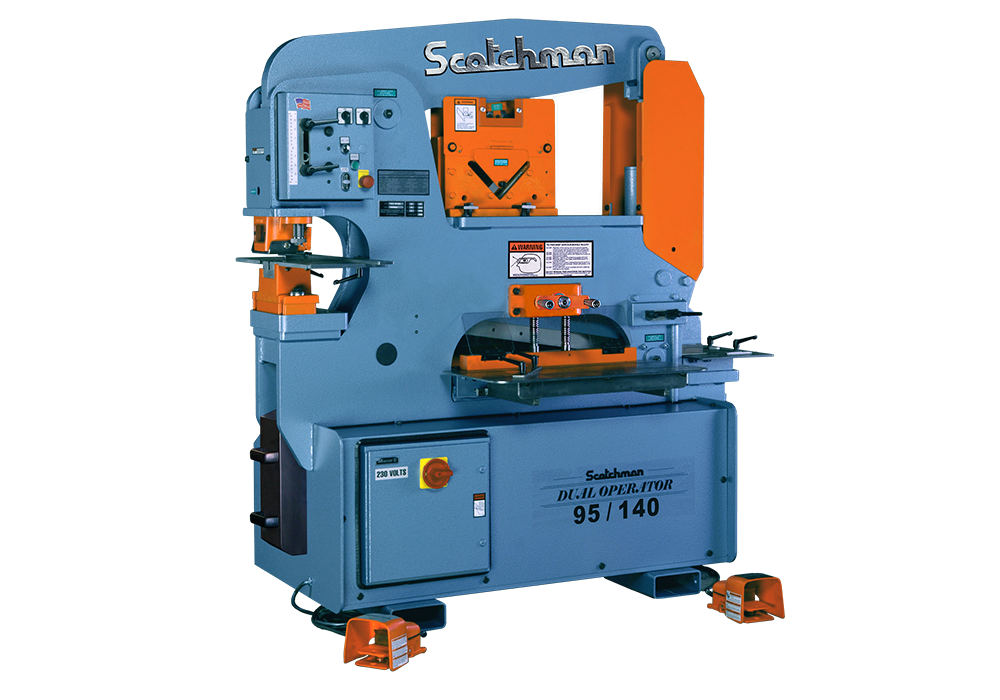

The Scotchman DO 95/140/24M dual operator ironworker has four built-in features including a 95-ton punch (1-3/16” in 1"), a 6” x 6” x 1/2" angle shear, a 24” plate shear (1” x 8”, 3/8” x 24”) and a rectangle notcher.
All Scotchman Ironworkers come with a 3-year parts warranty.
Standard Features
- Dual Operator, 5 Stations
- 95 Ton Punch Station (1-3/16" in 1")
- Keyed Punch Ram for Safety
- 9" Throat Depth
- Punch Gauging Table with Fence and Scale
- Die Holder Complete with 2" Die Insert
- Punch Nut with Wrench & Stripper
- Adjustable Swing-Away Stripper
- One Round Punch & Die: Max. Dia. 1-1/4"
- Punch Jog Control
- Two Adjustable Electric Stroke Controls with Scale
- Two Electric Remote Foot Pedals
- Two 2-Stage Hydraulic Pumps
- Two Valves
- Angle Shear Capacity 6" x 6" x 1/2" at 90°
- Rectangle Notcher 3" x 4" x 1/2"
- Notcher Table with Guides
- 140 Ton, 24" Flat Bar Shear with Sabre Blade (1" x 8", 3/8" x 24")
- Shear Table with Miter Fence
- Slug Receptacles
- Electrical Box Supplied
- Emergency Palm Button and Lock-out Tag-out Accommodations
- 230/460 Volt/3 Phase Electrics (must specify voltage)
- Forklift Accommodations
- Warranty: Three Years on Parts
- Made in USA
Specifications and Capacities
|
Rated on: |
65,000 PSI Tensile |
|
Punching Capacity |
95 ton 1-3/16" in 1" |
|
Special Tooling |
4" Max. Dia. |
|
Throat Depth |
9" |
|
Flat Bar Shear (sabre blade-std.) |
140 ton 24" Length 1" x 8" 3/4" x 12" 1/2" x 16" 3/8" x 24" |
|
Angle Shear 90° Angle Shear 45° (with Bar Shear) |
6" x 6" x 1/2" 3" x 3" x 3/8" 4" x 4" x 1/2" |
|
Brake 12" Brake 24" |
80 ton 55 ton |
|
Open End Brake |
Max. 1/4" x 5" Flat or Angle Iron |
|
Pipe Notcher Schedule 40 |
3/4" 1" 1-1/4" 1-1/2 2" |
|
90° V-Notcher |
6" x 6" x 5/16" |
|
Rectangle Notcher |
3" x 5" x 3/8" 3" x 4" x 1/2" |
|
V-Notch |
3" x 3" x 3/8" |
|
Notching in Leg of Channel |
6" to 10" |
|
Channel Shear |
2" to 6" adj. |
|
Rod Shear Round Rod (Max.) Square Rod (Max.) |
1/4" to 1-1/4", 9 Cavity 1/4" to 1", 1 Cavity |
|
Strut Shear |
Samples Required |
|
Square Tube Shear |
1/2" to 2" 12 gauge |
|
Picket Tool |
1/2" 3/4" 1" 16 gauge |
|
Offset Die Holder |
Max. 40 ton |
|
Strokes per minute in light material |
1/4" stroke [Punch Station] |
|
Strokes per minute in heavy material |
3/4" stroke [Punch Station] |
|
Hydraulics |
3,500/3,500 psi |
|
Motor Standard |
10 hp 3 ph 230/460 208/380/575 |
|
Motor Optional |
10 hp 1 ph 220v |
|
Dimensions |
W-30" L-65" H-72 1/8" |
|
Shipping Weight |
3,800 lbs. |
