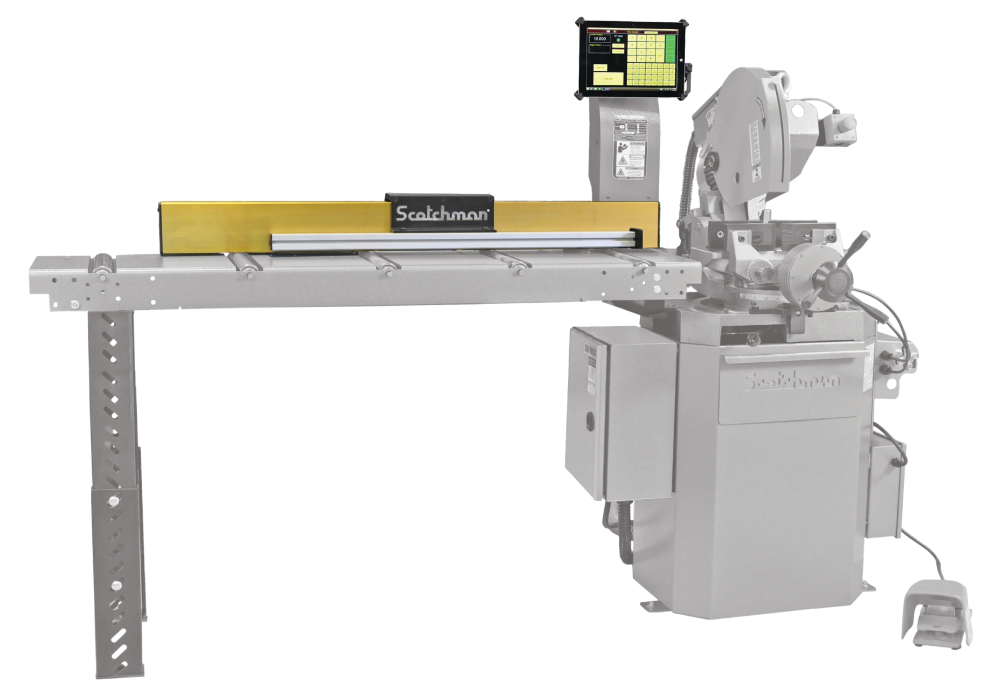

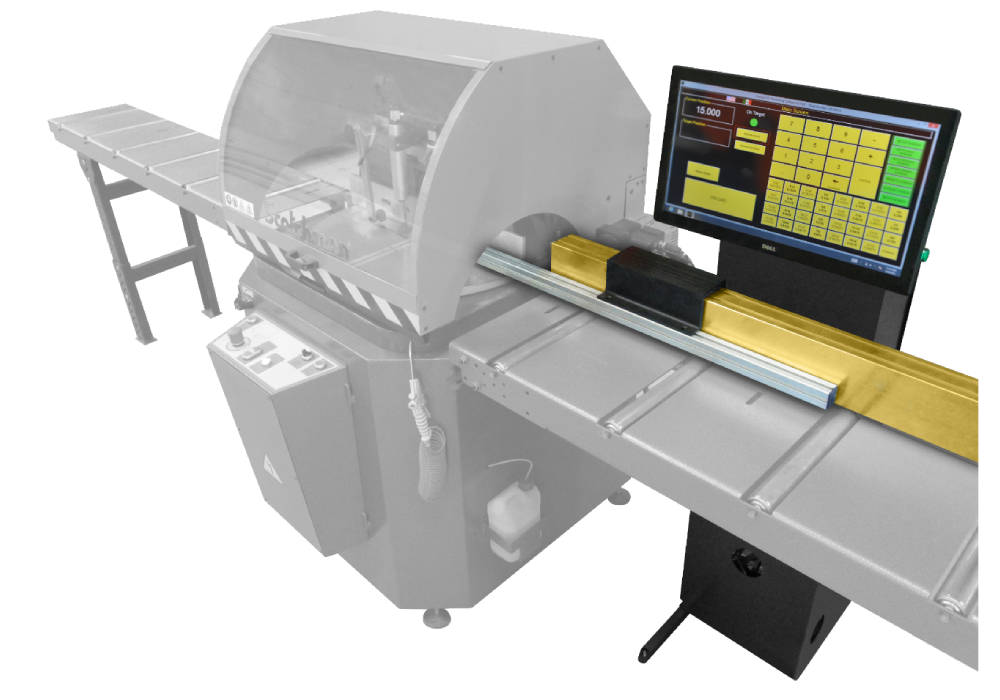

8 - 30 Foot Auto Feed System
The Auto Feed System (AFS) allows you to turn any Scotchman semi-automatic upcut or cold saw into a fully automated cutting system. The system automatically moves your material to position, clamps the material, and cycles the machine giving you a burr-free finished piece. Program a complete cut list to automate your process even more. This system has the ability to make manual cuts too, simply position the stop at the length you desire then manually fire the machine. Made in USA.
Pairs with the following units to convert from semi to fully automatic:
- Ferrous CPO 350 PKPD Cold Saw
- Non-Ferrous SUP 500 Upcut Saw
- Non-Ferrous SUP 600 Upcut Saw
- Non-Ferrous CPO 350 PKPD Cold Saw
Standard Features
- Fully automatic material feed system
- Windows® touchscreen technology
- Intuitive interface
- Works in inches, fractions, decimal or metric
- Fraction keys work as the "go" key
- Unlimited storage space to save cut jobs
- Able to switch between stop mode and pusher mode
- Capable of miter cutting in semi-auto mode
- Supports barcode operations and remote serial commands
- Multi offset allows for multiple tool positions
- Downloading of cut lists via built-in wireless networking or through USB drive
- Carriage rides on linear bearing system
- Planetary gear head, near zero backlash
- Warranty: One year on parts (feed system)
- Made in the USA
Specifications and Capacities
|
Lengths: |
8' to 30' Working Lengths |
|
Accuracy: |
Positioner accuracy ±0.008" |
|
Screen: |
17" Windows® touchscreen |
|
Storage: |
Unlimited storage to save cut jobs |
|
Measurements: |
Inches, Fractions, Decimals OR Metric |
|
Language: |
Multi-lingual |
|
Feed Direction: |
Mounts: left → right -OR- right → left (must specify) |
|
Voltage: |
120 VAC |
|
Functions: |
Auto Pusher Mode |
|
Automatic Sequences: |
Push stock to cut length |
