Name: Scotchman • Semi-Automatic Cold Saw • Non-Ferrous • CPO 350 NFPKPD
Brand: Scotchman
SKU: NFPKPD
Availability: InStock

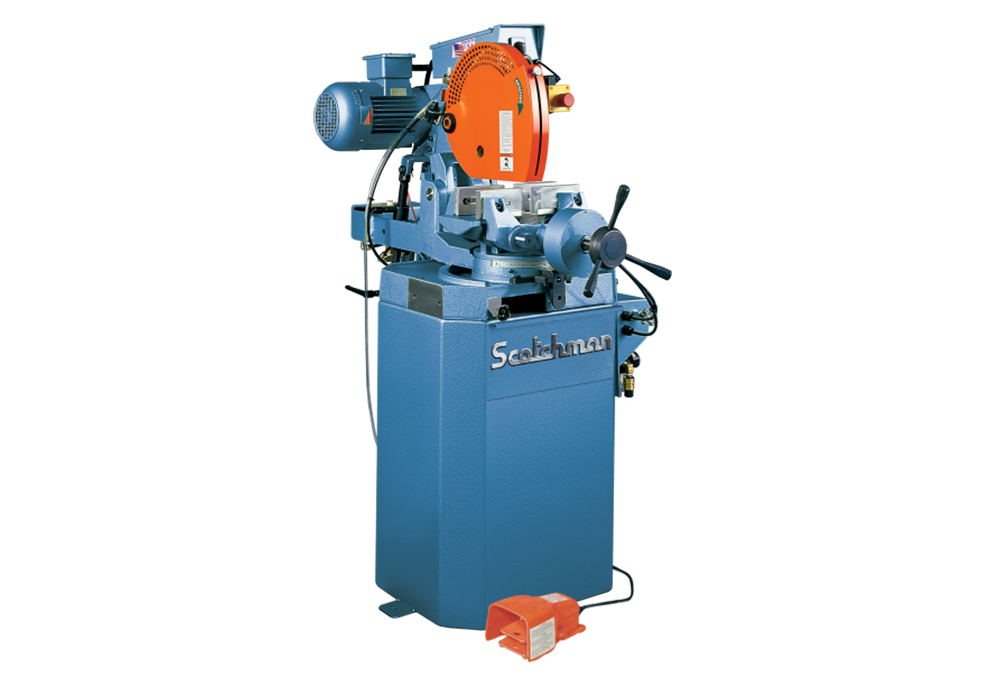

Scotchman • Semi-Automatic Cold Saw • Non-Ferrous • CPO 350 NFPKPD.

Description

The Scotchman CPO 350 PKPD, semi-automatic circular cold saw has a pneumatic power down feed with electric valves and has mitering capabilities of up to 135 degrees; 45 degrees to the right and 90 degrees to the left.

Features double clamping and self-centering vise for maximum material hold and a 350mm diameter blade giving it a 4-7/8" OD round capacity.

The CPO 350 is backed by a 3 year parts warranty.

Standard Features

Semi-Automatic Cycle
Air-operated Clamp for Material Vise
Pneumatic Power Down Feed with Electric Controls
Power Double Self-Centering Vise Assures Burr-Free Cuts
Emergency Stop Button
Miter Capabilities 45 Degrees Left and 45 Degrees Right
Miter Locking Device: Quick, Accurate Setting-Stops at 45 Degrees Left, Straight 90 Degrees, and 45 Degrees Right
Capable of Slotting5 HP, 3,000 RPM
Positive Cog Belt Driven
Chip Drawer
One Gallon Coolant Tank with Mist Lubrication System
One 350 mm Diameter Carbide-Tipped Blade
One Blade Wrench
One Gallon Coolant
230 or 460 Volt/3 Phase Electrics (must specify voltage)
Warranty: Three Years on Parts
Made in USA

Specifications and Capacities

Cutting Speed	3,000 rpm
Motor Rate	5.0 HP
TUBING Round Square Rectangle SOLID Round Square	90 Degree 4-1/2" (114 mm) 4-1/4" x 4-1/4" (108 x 108 mm) 5-1/2" x 4" (140 x 102 mm) 90 Degree 3" (76 mm) 3" x 3" (76 x 76 mm)	45 Degree 4-1/4" (108 mm) 4" x 4" (102 x 102 mm) 4" x 4" (102 x 102 mm) 45 Degree 2-1/2" (64 mm) 2-1/2" x 2-1/2" (64 x 64mm)
Factory Wired	Specify 208 3 ph 230 3 ph 460 3 ph 575 3 ph 60 hz
Maximum Diameter Blade	350 mm
Arbor Bore	1-9/16"	40 mm
Pin Spacing	4/12/64
Width	21-7/8"
Depth	43-1/2"
Height not including handle	56-1/4"
Height from floor to vise	37-7/16"
Shipping Weight	725 lbs.	(328 kg)
