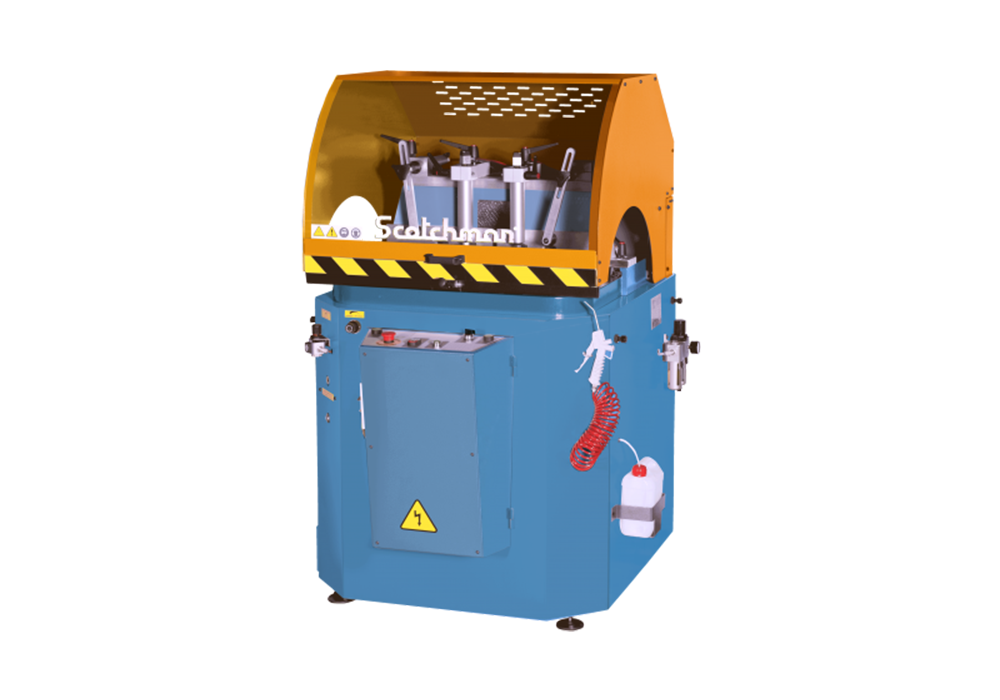

20" Blade Semi-Automatic Upcut Saw

Manufacturer: Scotchman

Model: SUP-500 NF

Quote Request

 Thank you for your quote request, we will be in touch shortly.

The SUP-500 is an Upcut Circular Cold Saw designed specifically for cutting non-ferrous material.  Featuring a 20" (500mm), 120 tooth carbide blade that is capable of producing round cuts up to 7" in diameter and rectangular cuts up to 11.75" x 5".

Standard features include an adjustable feed rate, mitering capability of 30 degrees Left and 0 degrees Right, four pneumatic clamps to secure material being cut and integrated debris collection.  Standard safety features include dual hand operation and a safety interlock that will prevent the saw from operating if the safety hood is not closed.

The SUP-500 is backed by a 3-year parts warranty.

Standard Features
  • Precision Miter Upcut Non-ferrous Saw
  • Safety Hood with Safety Switch that will not Allow Saw to Run with Hood Open
  • Blade Door with Safety Interlock Switch
  • Dual Palm Buttons
  • Adjustable Feed Rate on Saw Head
  • Two Horizontal Pneumatic Clamps
  • Two Vertical Pneumatic Clamps
  • Miter Capability 30° Left, 90° Straight, 0° Right
  • Capable of Slotting
  • Moveable Back Fence for Larger Capacity
  • One Gallon Coolant
  • Coolant Tank with Mist Lubrication
  • One 20" (500 mm) Diameter, 120-Tooth Carbide Blade
  • One Blade Wrench
  • Air Hose
  • Chip Collection Drawer in Base and a 4-3/4" Chip Collection Port
  • Noise Level (DB 68)
  • Adjustable Leveling Pads
  • 230 or 460 volt/3-ph Electrics (must Specify Voltage)
  • Warranty: Three Years on Parts
  • Made in Spain

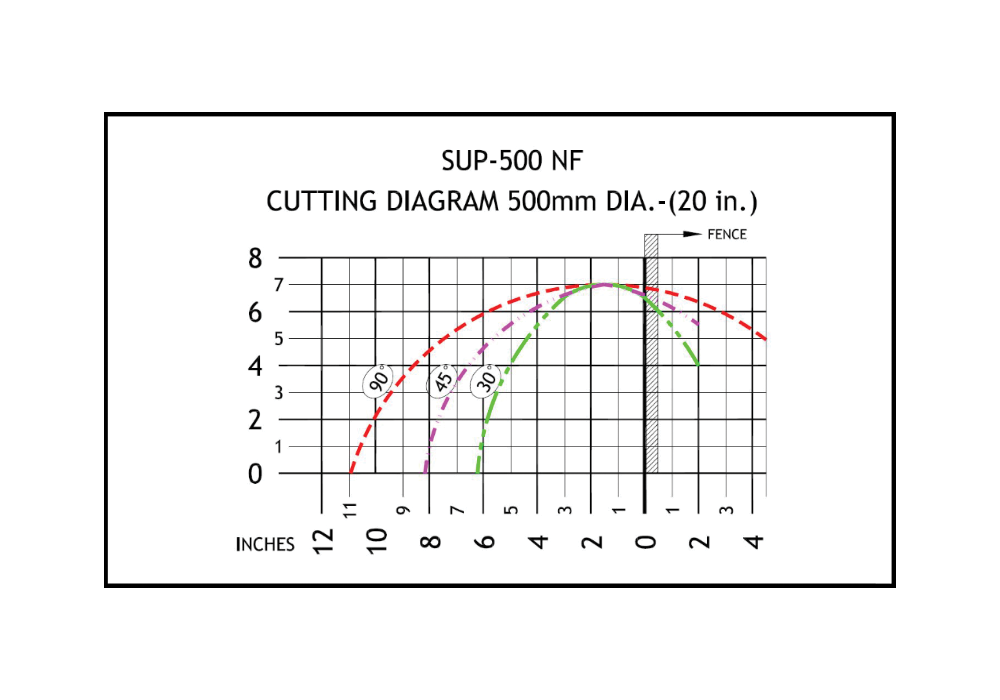

Specifications and Capacities



Round

Square

Rectangle

90 Degree

7" (180 mm)

6" (150 mm)

11-3/4" x 5" (300 x 125 mm)

45 Degree

7" (180 mm)

4-3/4" (120 mm)

5-3/4" x 4-3/4" (145 x 120 mm)

Non-Ferrous Upcut Saw designed for Aluminum, PVC, Copper, etc.

Cutting Speed

3,000 RPM

Motor Rate

5.5 HP

Factory Wired

Specify: 230 3-ph 460 3-ph

Maximum Diameter Blade:

20" (500 mm)

Arbor Bore

1.97" (50 mm)

Width:

47-1/4"

Depth:

43-3/8"

Height:

(Top of Hood) 60-1/4"

Height:

(From Floor to Vise) 38-5/8"

Shipping Weight:

1,069 lbs. (485 kg)
Scotchman • Semi-Automatic Upcut Saw • Non-Ferrous • SUP-500 NF.
