24" Blade Semi-Automatic Upcut Saw

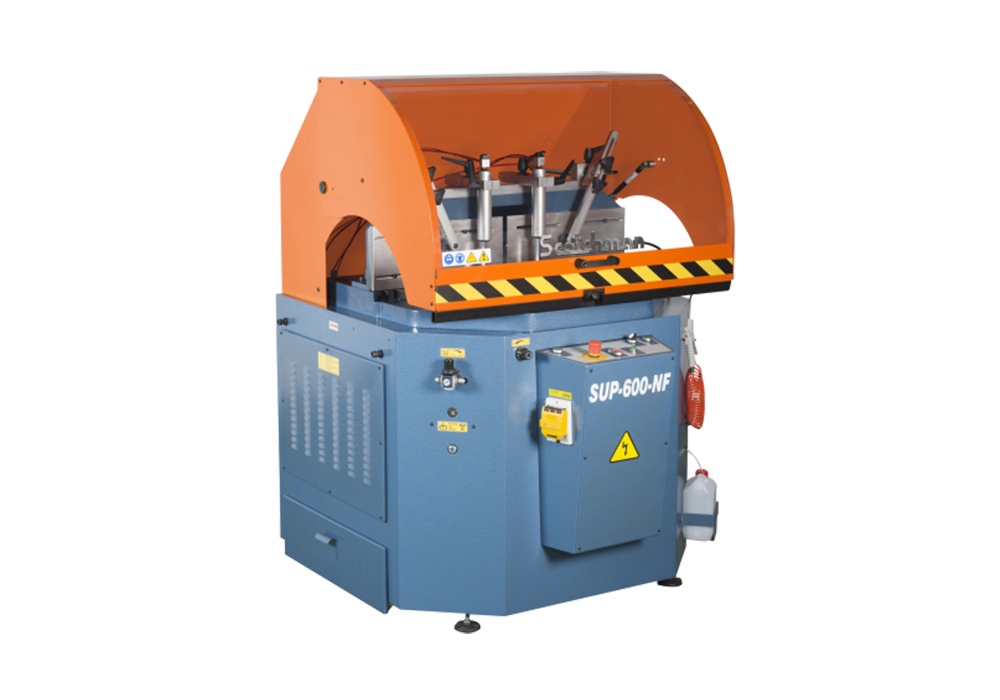

The Scotchman SUP-600 NF Upcut Circular Cold Saw is designed specifically for cutting non-ferrous material and features a 24" (600mm), 132 tooth carbide blade which is capable of producing round cuts up to 9" in diameter and rectangular cuts up to 15" x 6".
Standard features include an adjustable feed rate, mitering capability with fixed stops at 22.5 degrees, 45 degrees, 90 degrees, -45 degrees and -22.5 degrees, two horizontal and two vertical pneaumatic clamps to secure material being cut and a 4-1/2" port for chip collection plus a drawer under the bottom of the saw.
The saw can also be coupled with our AngleMaster Measuring System to give you a true production machine.
The SUP-600 NF is backed by a 2 year parts warranty.
Standard features
- Precision Miter Upcut Non-ferrous Saw
- Safety Hood with Safety Switch that will not allow Saw to run with Hood Open
- Power Hood
- Blade Door with Safety Interlock Switch
- Dual Palm Buttons
- Adjustable Feed Rate on Saw Head
- Two Horizontal Pneumatic Clamps
- Two Vertical Pneumatic Clamps
- Miter Capability 22.5° Left, 90° Straight, 0° Right
- Capable of Slotting
- Moveable Back Fence for Larger Capacity
- One Gallon Coolant
- Coolant Tank with Mist Lubrication
- One 24" (600 mm) diameter Blade
- One Blade Wrench
- Air Hose
- Chip Collection Drawer in Base and a 4-3/4" Chip Collection Port
- Adjustable Leveling Pads
- 230 or 460 volt/3-ph Electrics (must specify voltage)
- Warranty: Three Years on Parts
- Made in Spain

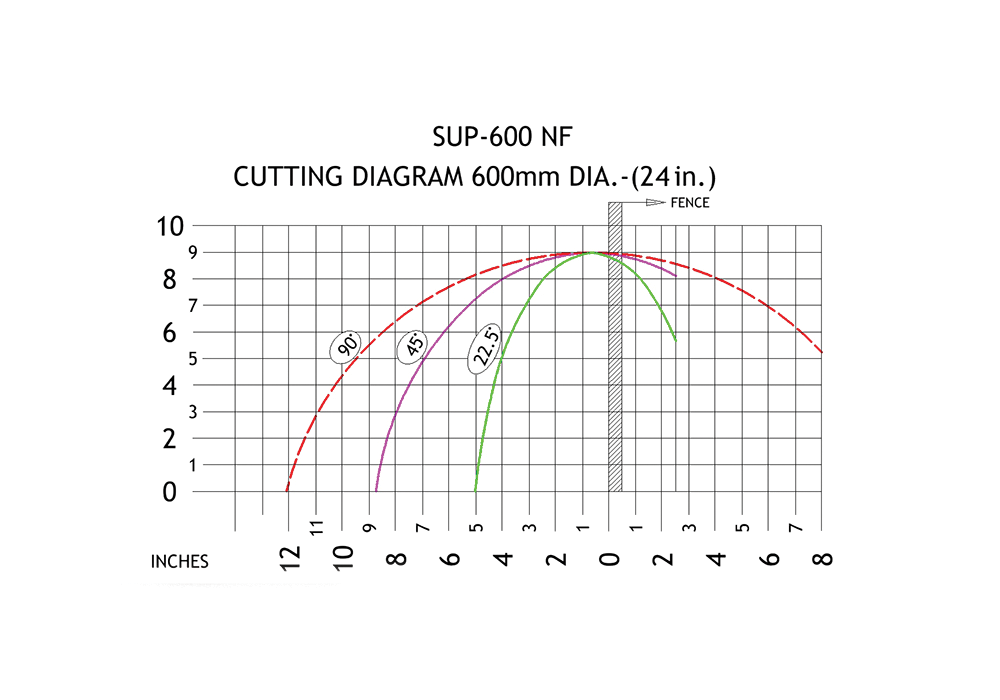

Specifications and Capacities
|
Round Square Rectangle |
90 Degree 9" (230 mm) 8" (203 mm) 15" x 6" (381 x 152 mm) |
45 Degree 9" (230 mm) 7" (177 mm) 10" x 4" (250 x 100 mm) |
|
Non-Ferrous Upcut Saw designed for aluminum, PVC, copper, etc. |
||
|
Cutting Speed |
3,000 RPM |
|
|
Motor Rate |
5.5 HP |
|
|
Factory Wired |
Specify: 230 3-ph 460 3-ph |
|
|
Maximum Diameter Blade |
24" (600 mm) |
|
|
Arbor Bore |
1.97" (50 mm) |
|
|
Width |
51-1/4" |
|
|
Depth |
48" |
|
|
Height |
(Top of Hood) 64-3/8" |
|
|
Shipping Weight |
1,102 lbs. (500 kg) |
