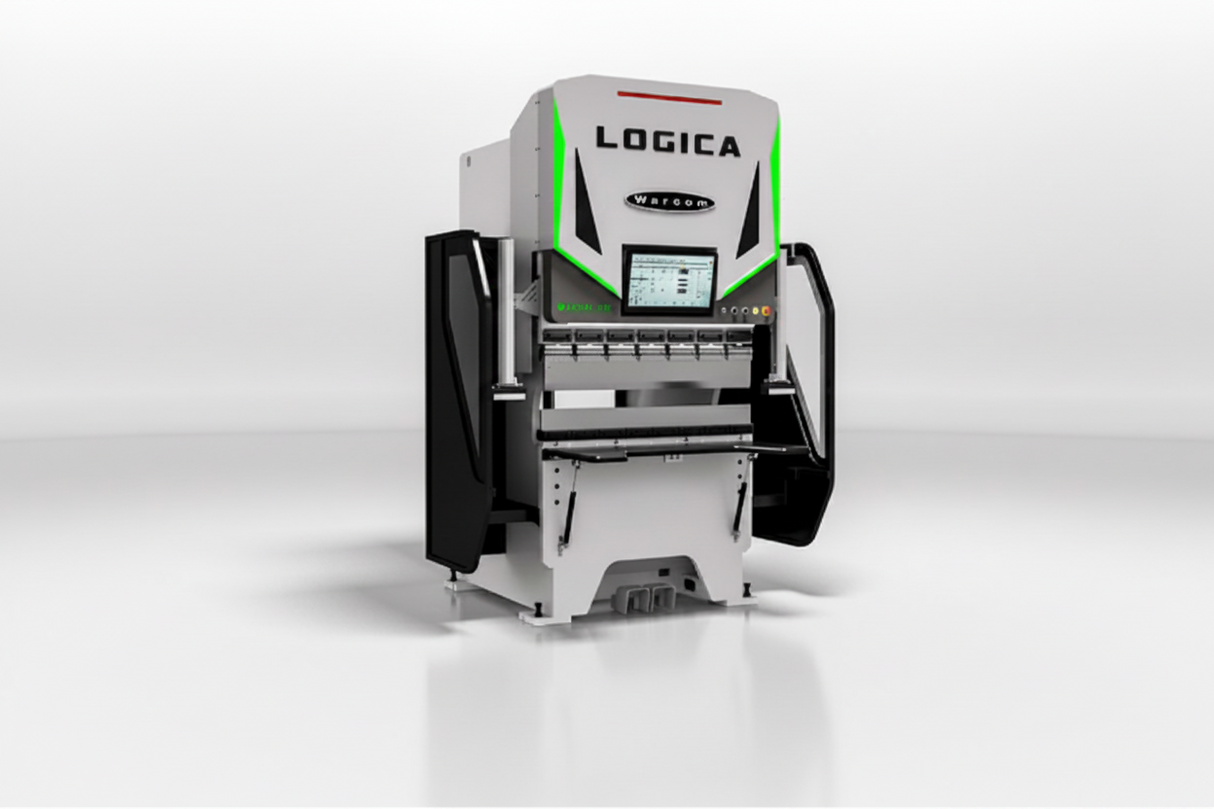

Warcom Logica 60-1250 Electric Press Brake
The Warcom Logica 60-1250 is a precision electric CNC press brake designed for high-speed, energy-efficient sheet metal bending. Equipped with a 60-ton pressing capacity and 1250 mm bending length, the machine features a 4-axis CNC control system with an ESA S875 21-inch touchscreen, motorized X/R backgauge, and Lazer Safe safety technology.
Its electric drive system delivers excellent positioning accuracy while reducing energy consumption compared to hydraulic press brakes. The machine is ideal for precision fabrication, aerospace components, electrical enclosures, stainless steel work, and general sheet metal production. Standard features include PROMECAM manual clamping, adjustable front supports, LED work lighting, hardened guideways, and CE-compliant safety systems.
Machine Overview
Model: Logica 60-1250
Machine Type: Electric CNC Press Brake
Machine Capacity
- Press Force: 60 Ton
- Bending Length: 1250 mm (49.2")
- Distance Between Frames: 1050 mm
- Throat Depth: 240 mm
- Daylight Opening: 450 mm
- Ram Stroke: 230 mm
- Approximate Weight: 4,400 kg
- Power Supply: 400V / 50Hz / 3 Phase
Standard Features
- 4-Axis CNC (Y1, Y2, X, R)
- ESA S875 CNC Control
- 21" Touchscreen Control
- Motorized X & R Backgauge
- CAN-Bus Digital Servo Motors
- Two Adjustable Finger Stops
- 500 mm/sec X-axis Speed
- Manual PROMECAM Upper Tool Clamping
- Manual PROMECAM Lower Tool Clamping
- Hardened Linear Guide System
- Adjustable LED Working Light
- Two Sliding Front Support Arms
- Lazer Safe Safety System
- CE Compliant
Technical Specifications
| Specification | Value |
|---|---|
| Press Force | 60 Ton |
| Bending Length | 1250 mm |
| Distance Between Frames | 1050 mm |
| Throat Depth | 240 mm |
| Daylight | 450 mm |
| Stroke | 230 mm |
| X Axis | 450 mm |
| R Axis | 150 mm |
| Approach Speed | 300 mm/sec |
| Bending Speed | 10 mm/sec |
| Return Speed | 300 mm/sec |
| Positioning Accuracy (Y) | ±0.005 mm |
| Positioning Accuracy (X) | ±0.05 mm |
| Weight | 4400 kg |
Available Options
Warcom offers optional upgrades including:
- 6-Axis Configuration
- 7-Axis Configuration
- Additional Conical Bending Axes
- Pneumatic Tool Clamping
- Wila Tool Clamping
- Standard Tool Packages
- LazerSafe IRIS Fast Bend
- Angle Measurement System
- Offline Programming Software
- Wireless Digital Protractor
- Installation & Training Service
